Engine Controls - Tests W/Codes - HFM-SFI System
›
System Tests
›
Idle Speed Control (ISC) System Tests Illustrations (Section 25)
Idle Speed Control (ISC) System Tests Illustrations (Section 25)

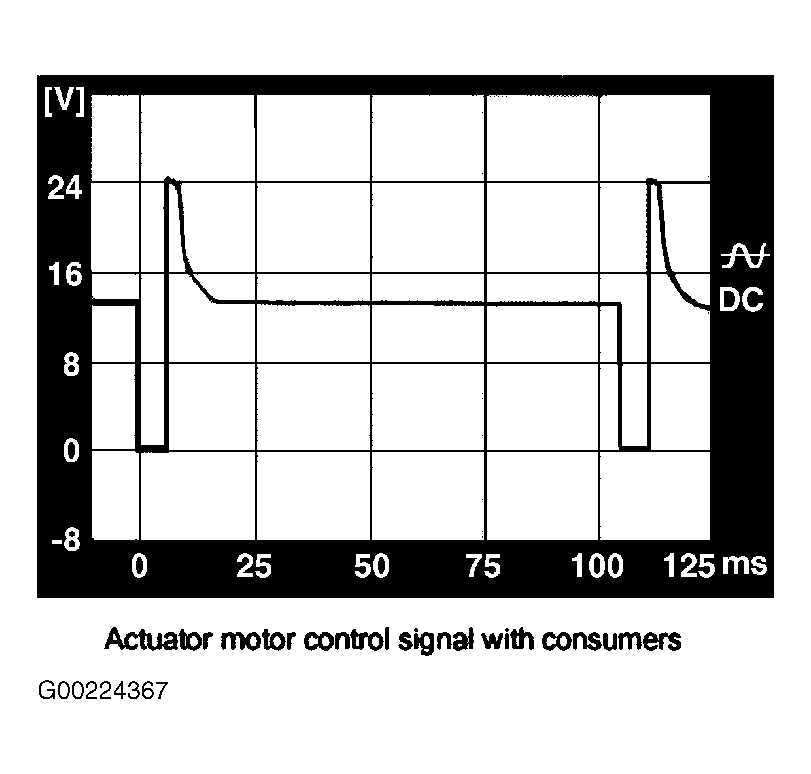

Fig 1: Idle Speed Control (ISC) Tests Illustrations - Section 25 (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

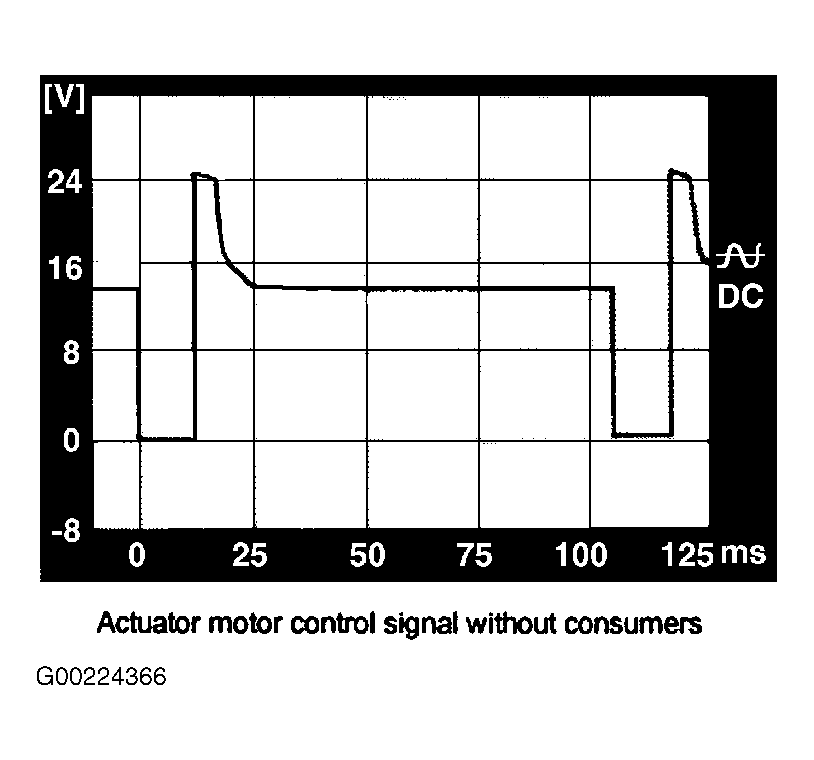

Fig 2: Idle Speed Control (ISC) Tests Illustrations - Section 25 (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
