Body & Frame
›
Door Locks
›
Keyless Entry System - E-Class & C-Class
›
Programming
›
Synchronizing Infrared Remote Control Signal
Synchronizing Infrared Remote Control Signal

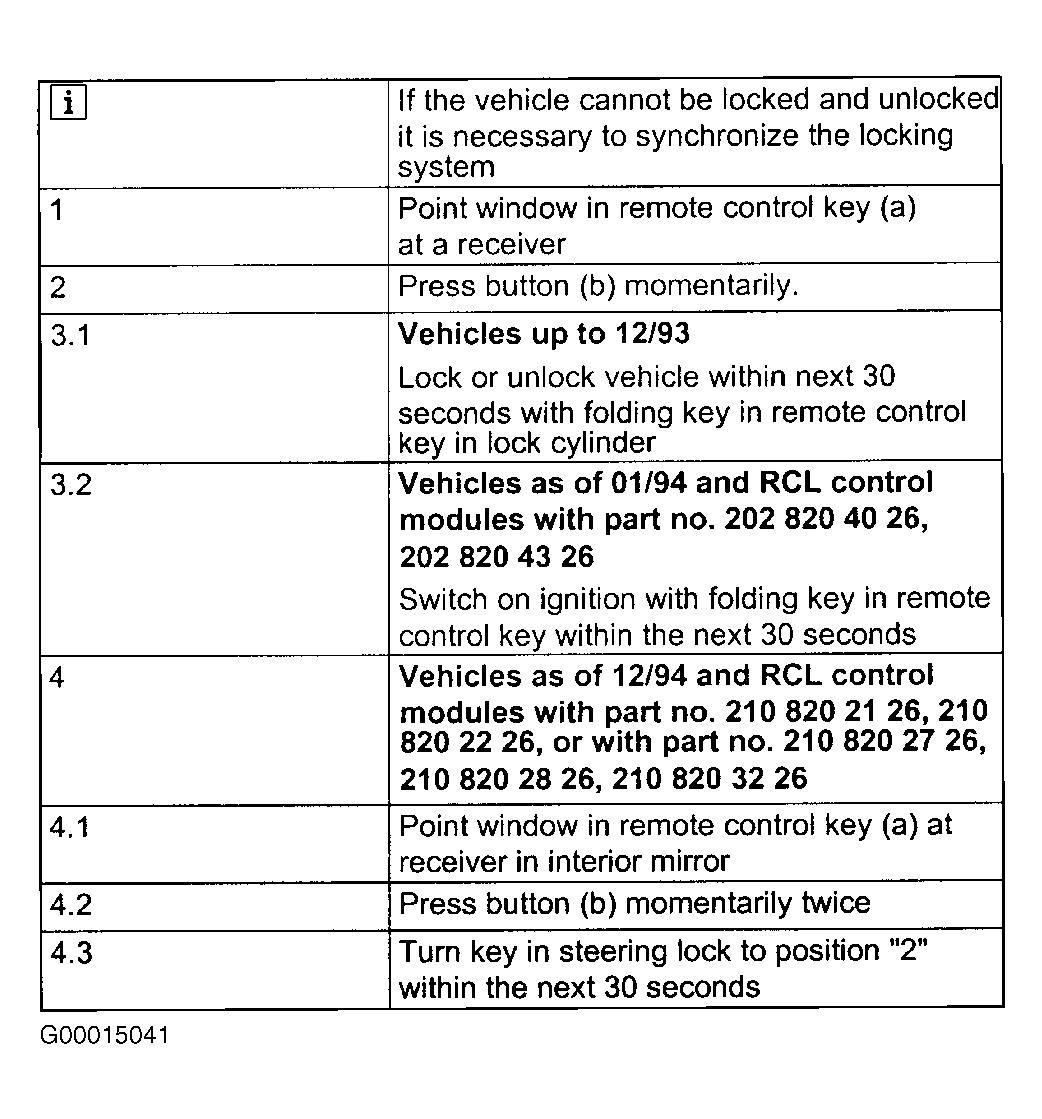

Fig 1: Synchronizing Infrared Remote Control Signal
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
