Infrared Remote Control Unit

NOTE: When replacing control unit or transmitter key, it is essential to specify locking mechanism number as both parts are matched.

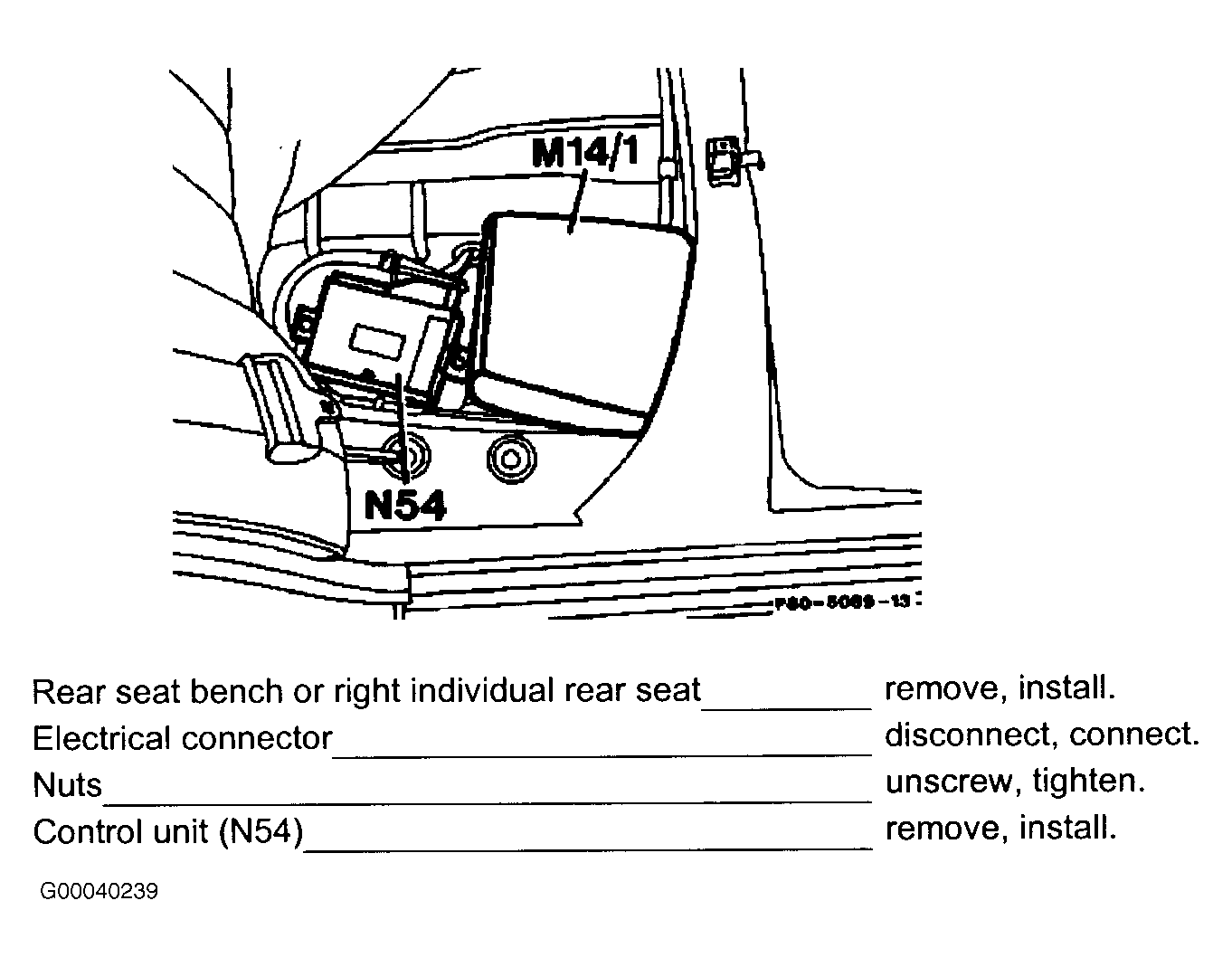

Fig 1: Removal & Installation Of Infrared Remote Control Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
