Engine Controls - Tests W/Codes - HFM-SFI System
›
System Tests
›
Ignition System Tests (Section 24)
›
Ignition System Tests 1.0-2.2
Ignition System Tests 1.0-2.2

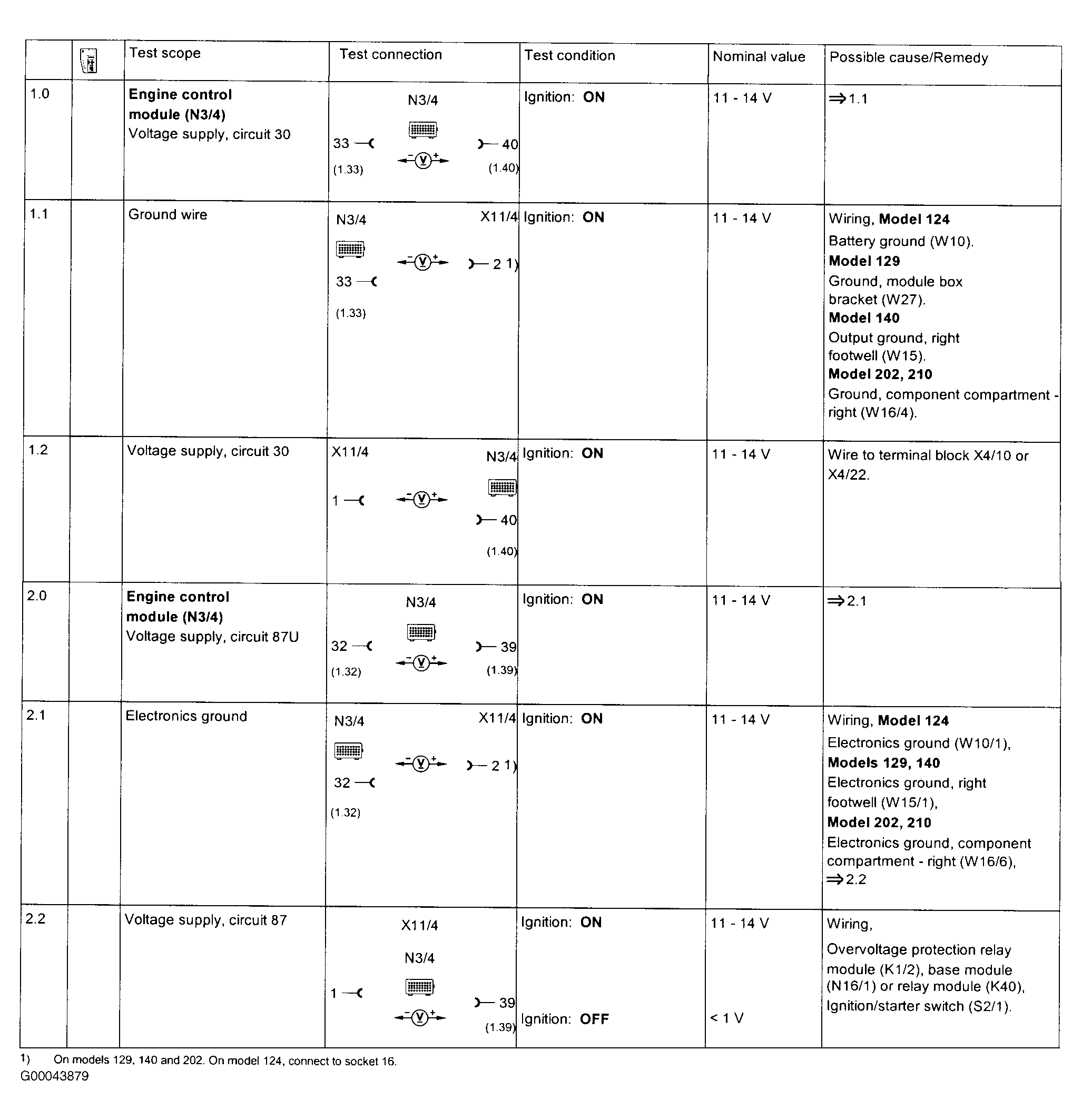

Fig 1: Ignition System Tests (Steps 1.0-2.2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
