Engine Controls - Tests W/Codes - HFM-SFI System
›
System Tests
›
Ignition System Tests (Section 24)
›
Ignition System Tests 16.0-19.1
Ignition System Tests 16.0-19.1

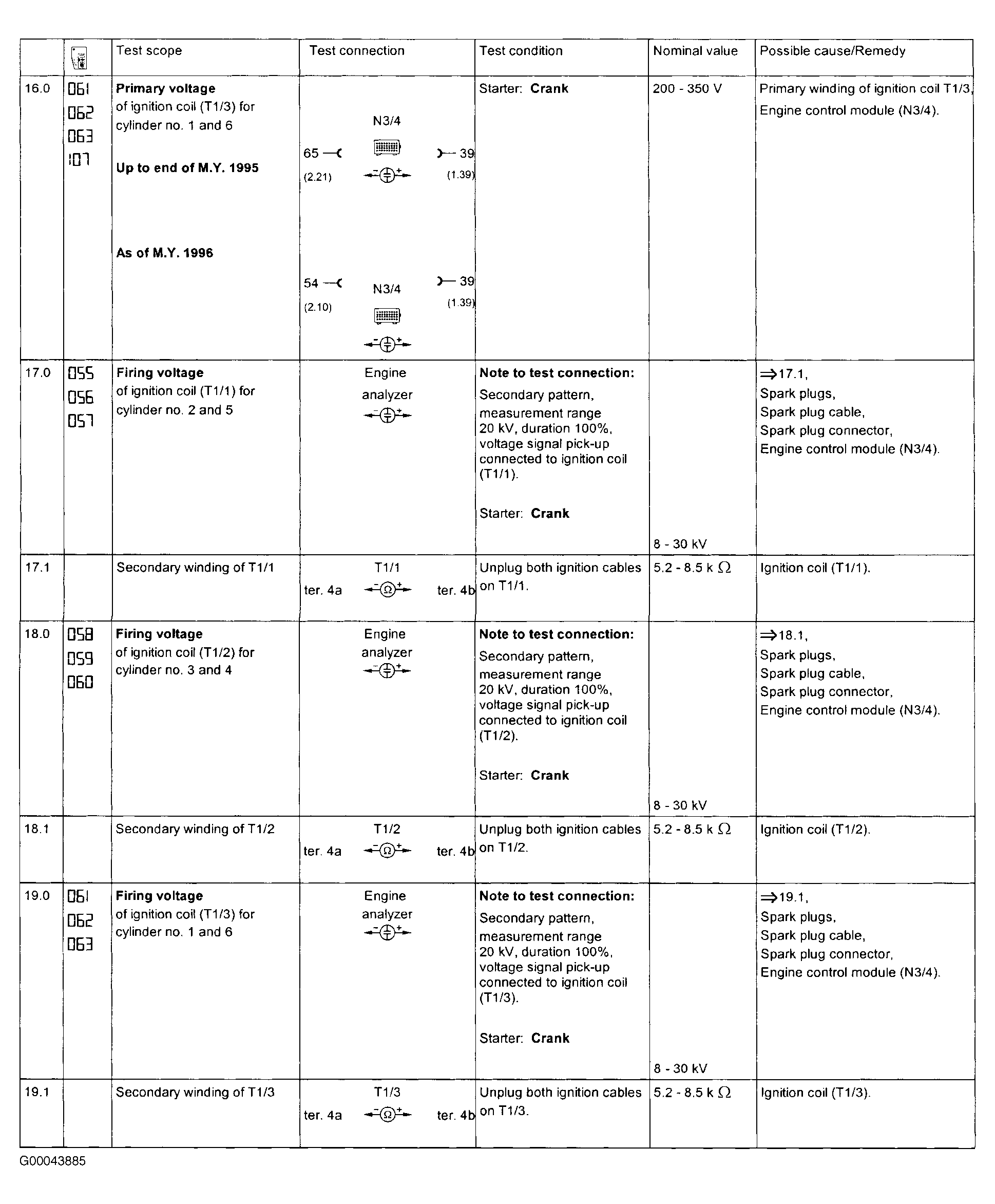

Fig 1: Ignition System Tests (Steps 16.0-19.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
