Engine Controls - Tests W/Codes - HFM-SFI System
›
System Tests
›
Ignition System Tests Illustrations (Section 24)
Ignition System Tests Illustrations (Section 24)

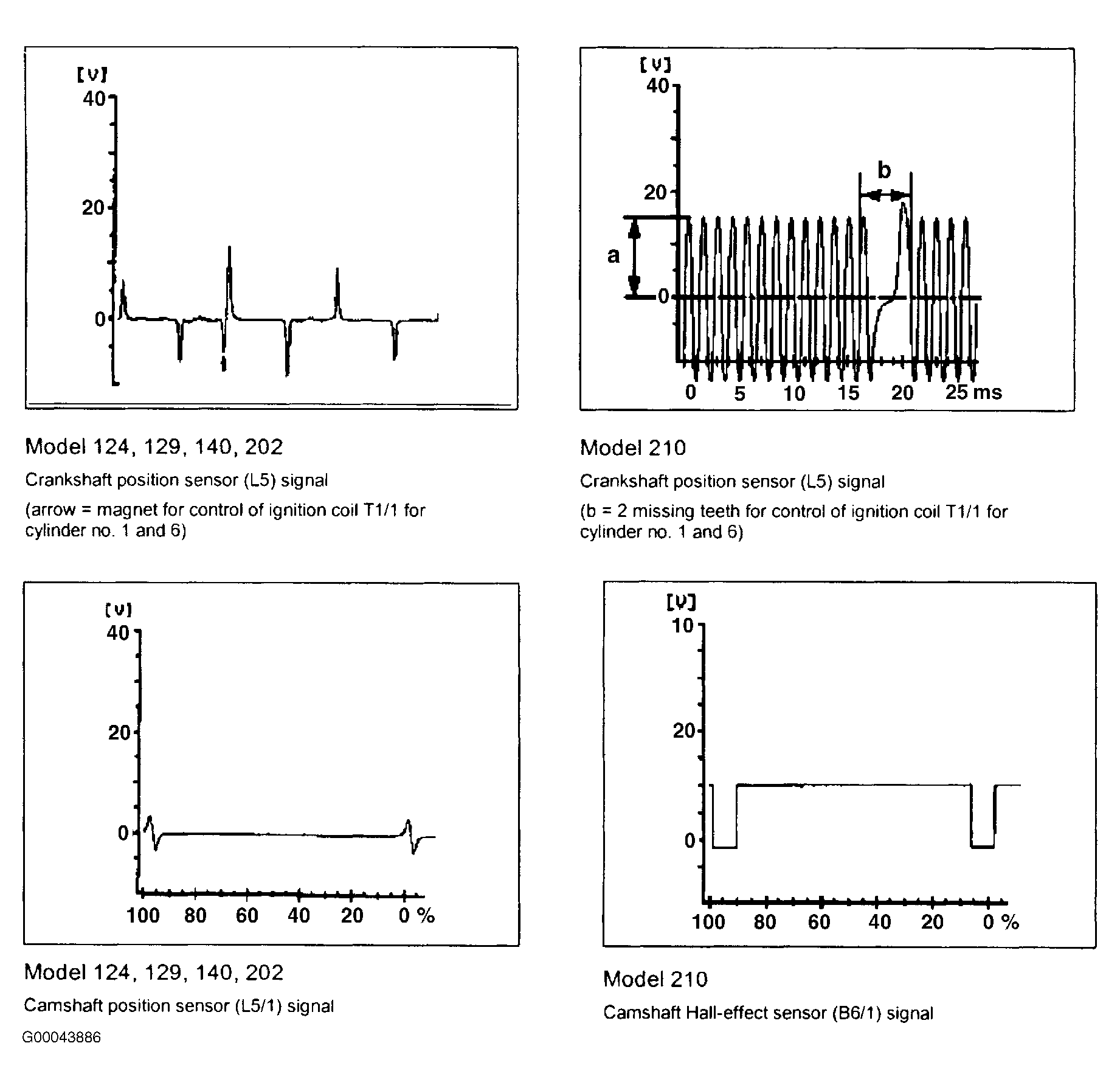

Fig 1: Ignition System Tests Illustrations - Section 24
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
