Connecting Test Equipment (Section 33)
Connecting Test Equipment (Section 33)

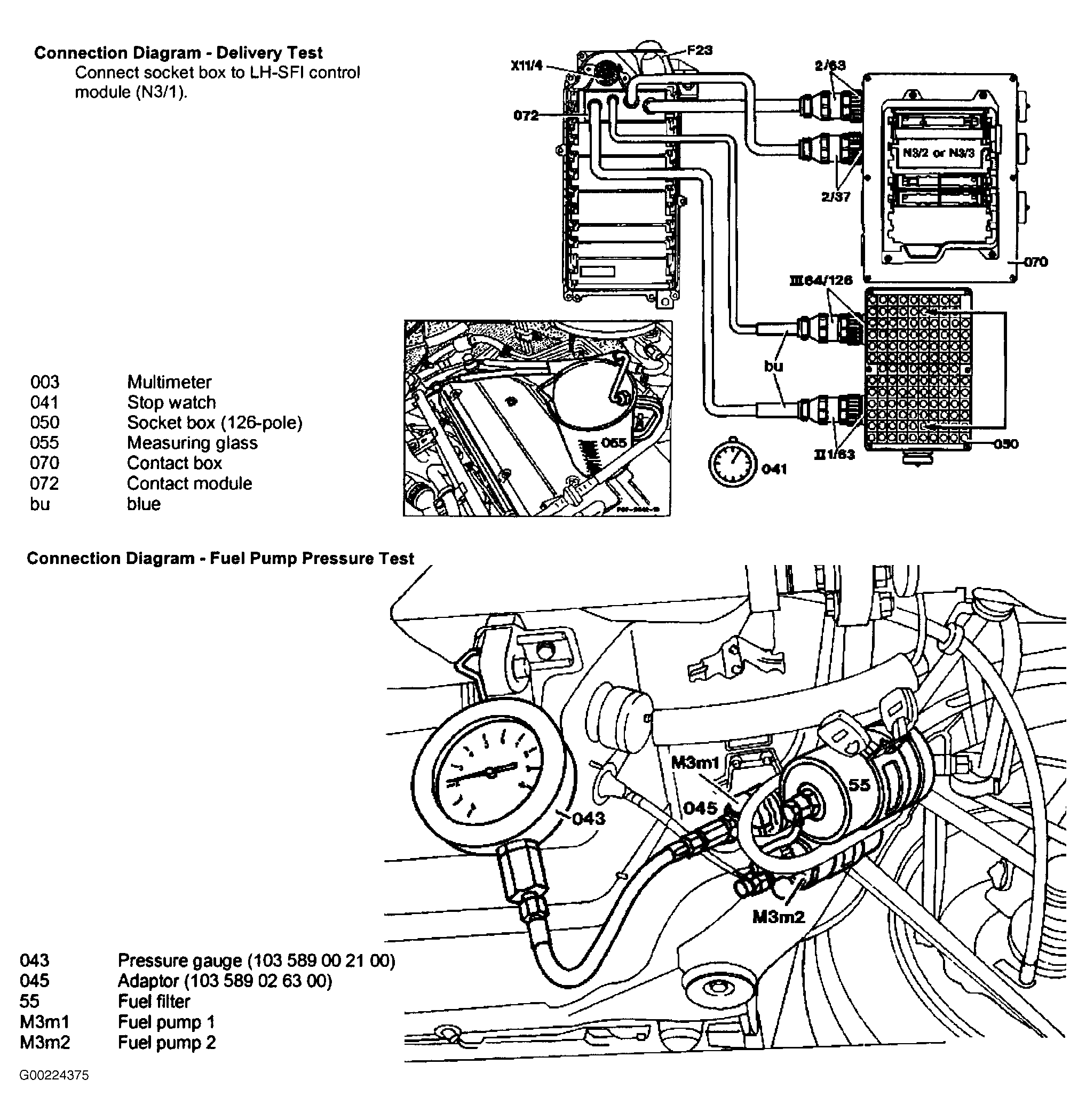

Fig 1: Connecting Test Equipment (Section 33)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
