Engine Controls - Tests W/Codes - LH-SFI System
›
System Tests
›
Connector Identification (Section 22)
Connector Identification (Section 22)

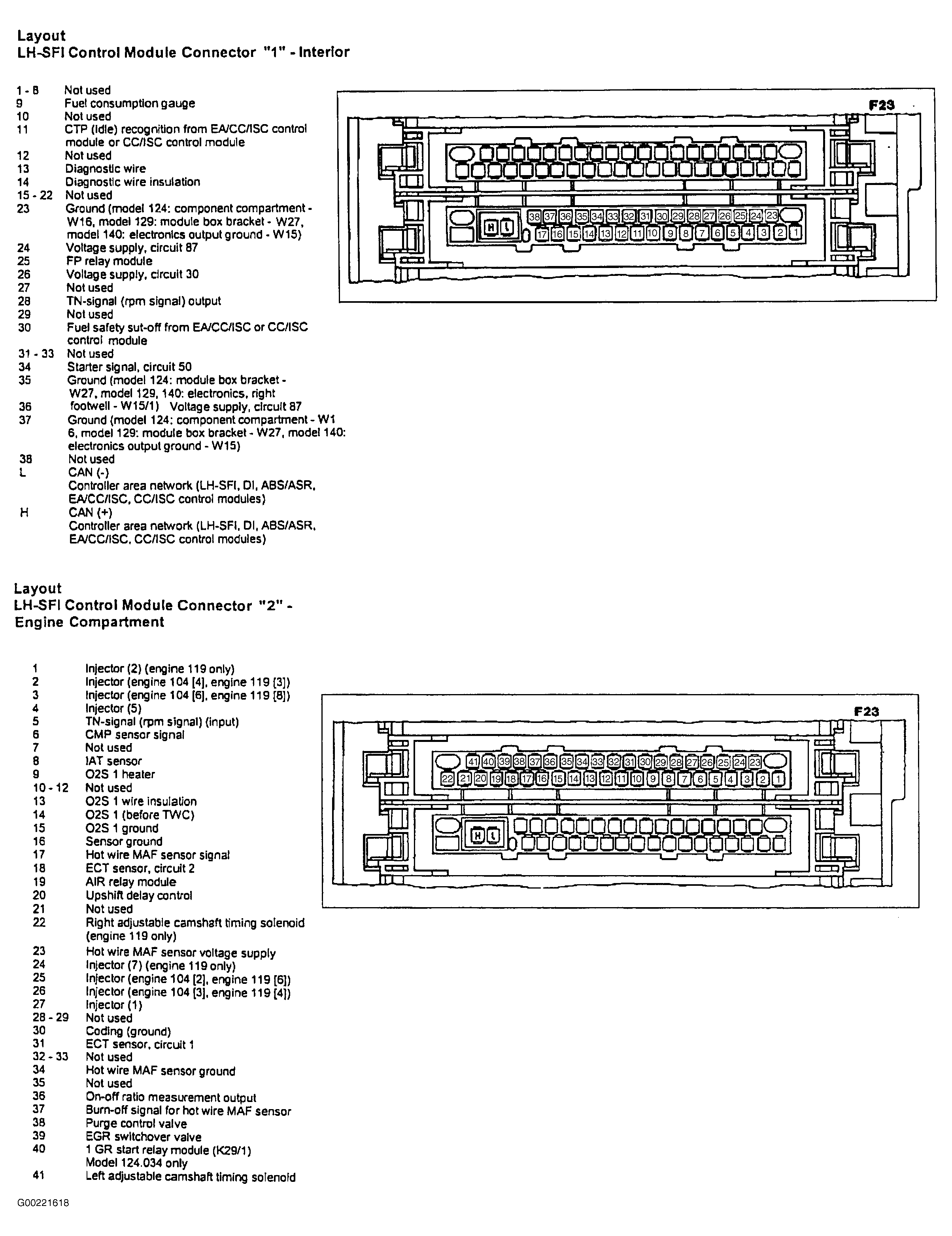

Fig 1: LH-SFI Control Module Connector Pin Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
