Engine Controls - Tests W/Codes - Diagnostic Module
›
System Tests
›
Connector Identification (Section 22)
Connector Identification (Section 22)

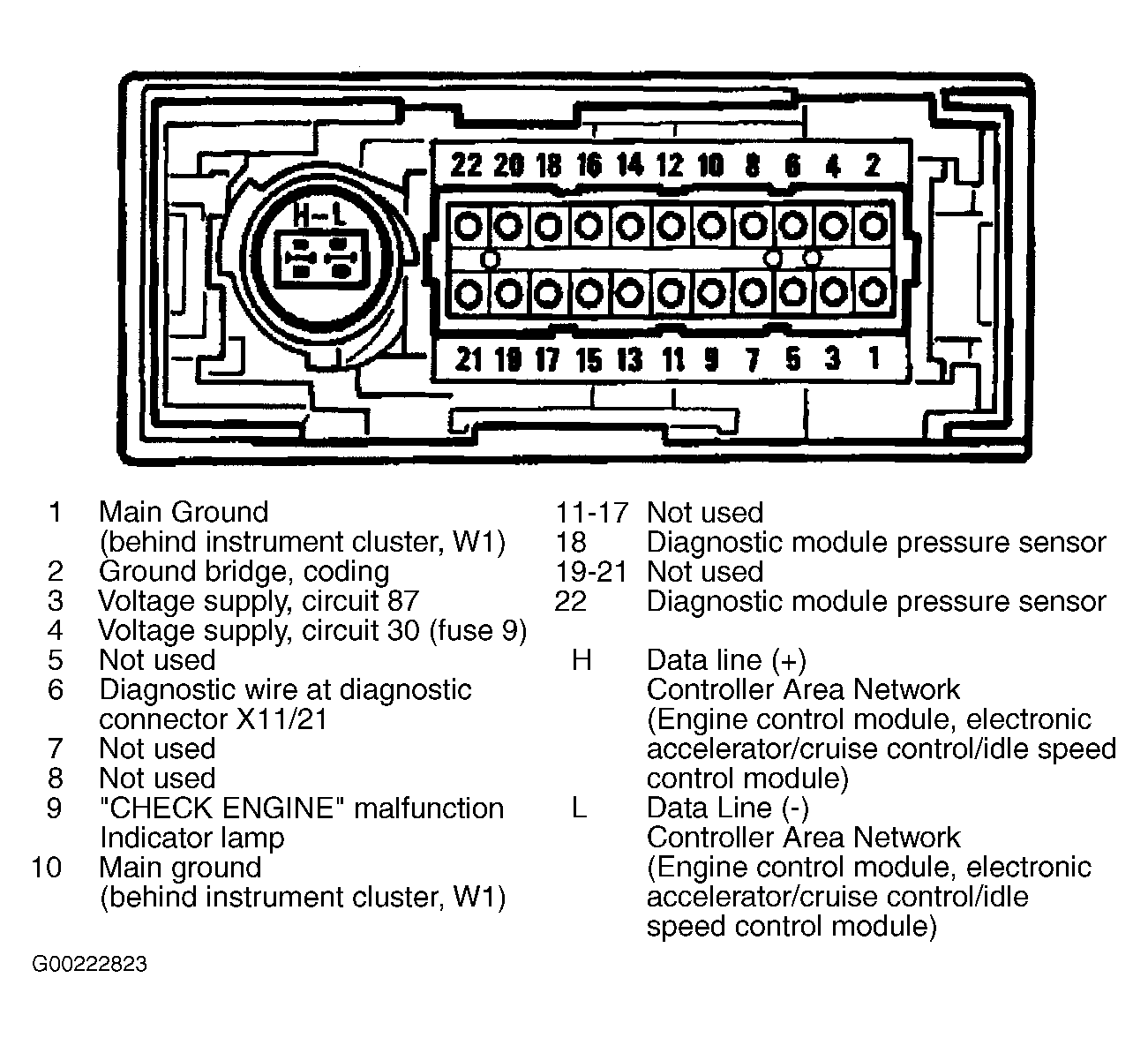

Fig 1: Diagnostic Module Connector Pin Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
