S350 Fault Code Diagnosis

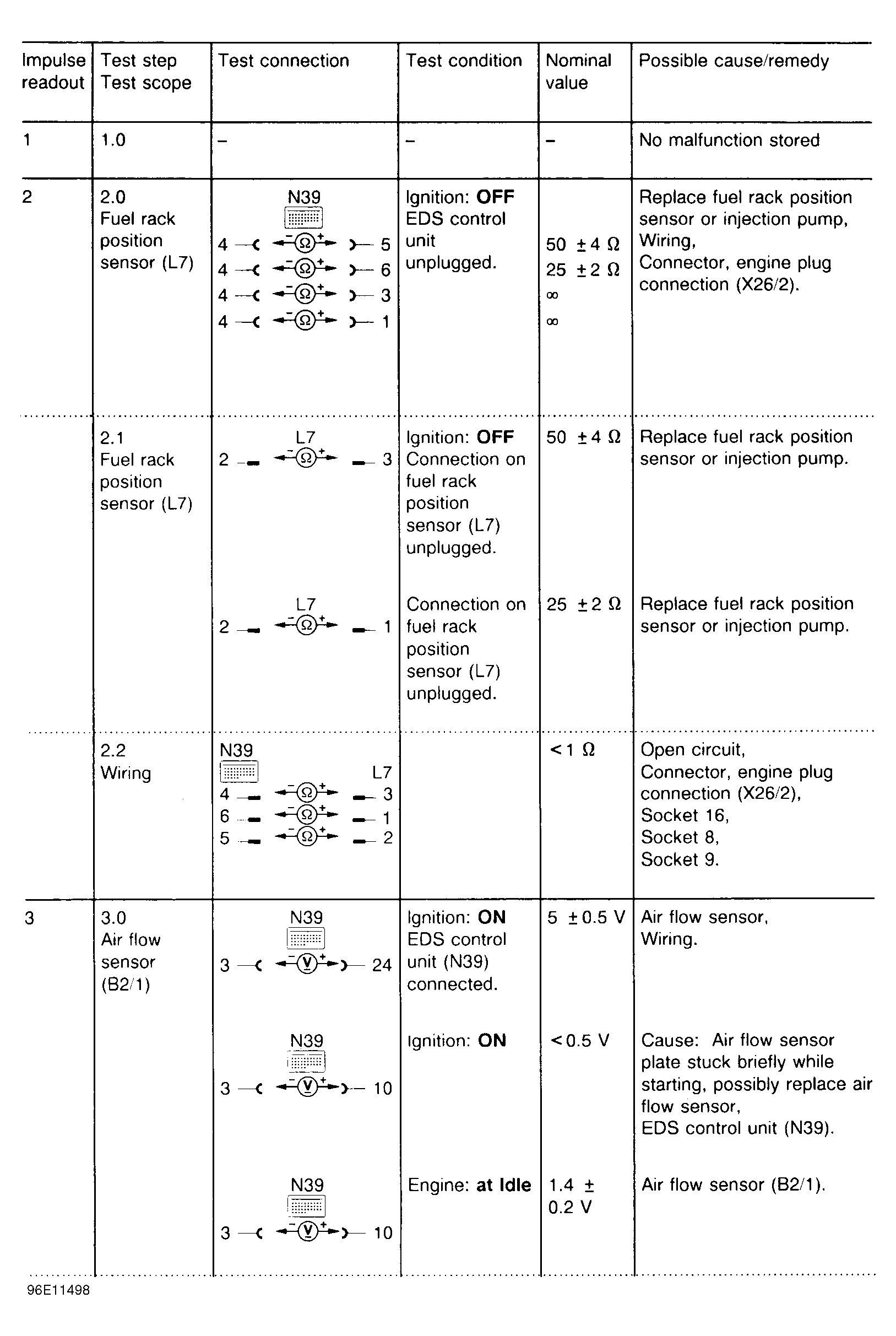

Fig 1: Fault Code Diagnosis (1 of 8)

G96E11498

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 2: Fault Code Diagnosis (2 of 8)

G93I79184

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 3: Fault Code Diagnosis (3 of 8)

G93J79185

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 4: Fault Code Diagnosis (4 of 8)

G93A79186

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 5: Fault Code Diagnosis (5 of 8)

G93B79187

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 6: Fault Code Diagnosis (6 of 8)

G93B79401

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 7: Fault Code Diagnosis (7 of 8)

G93C79402

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 8: Fault Code Diagnosis (8 of 8)

G93D79403

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
