Connector Identification

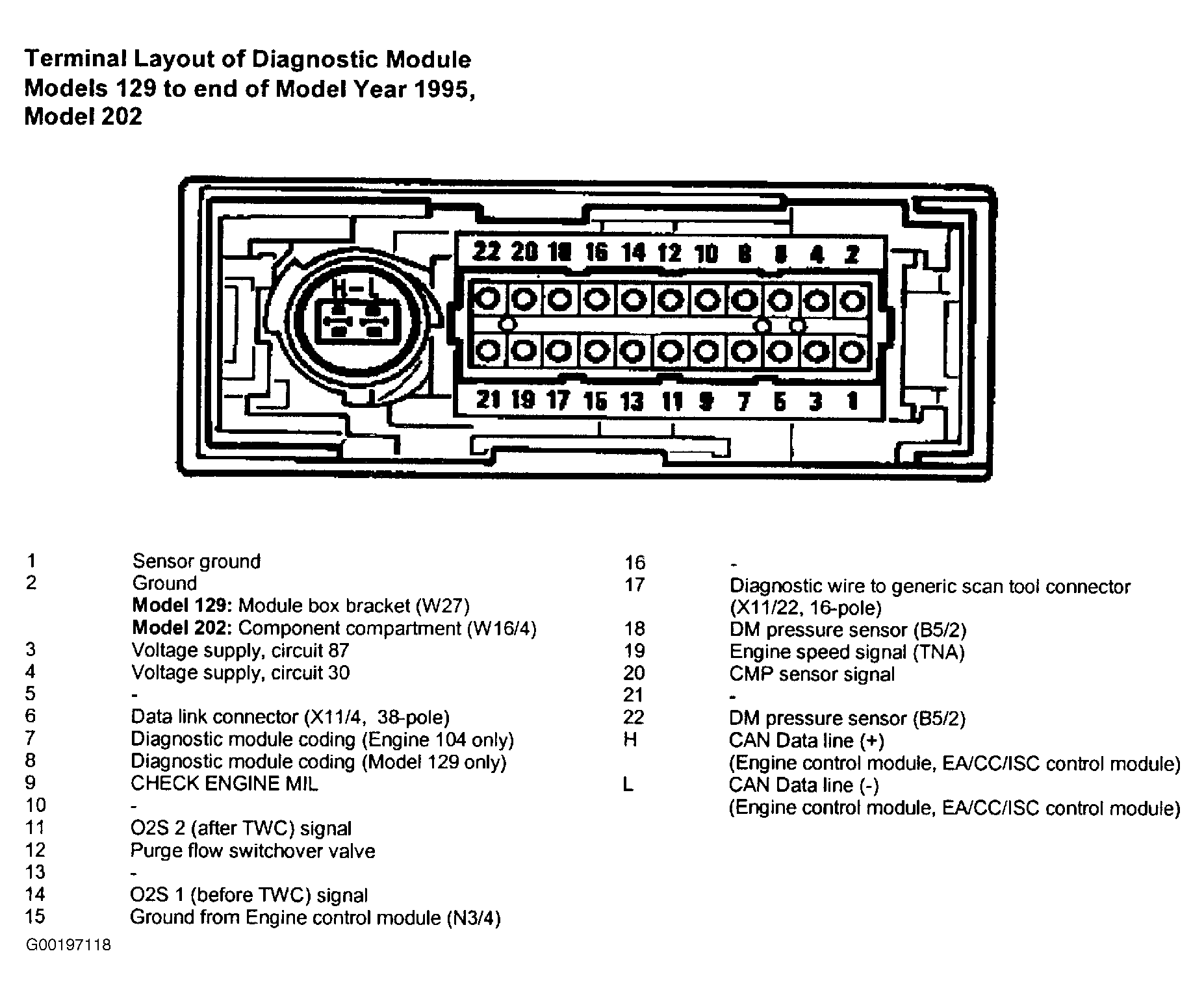

Fig 1: Identifying Diagnostic Module Connector Layout
G00197118Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
