ACC push-button control unit consists of temperature control wheel or push buttons, mode selection push buttons, and fan control pushbuttons. See Fig 3 or Fig 4
.

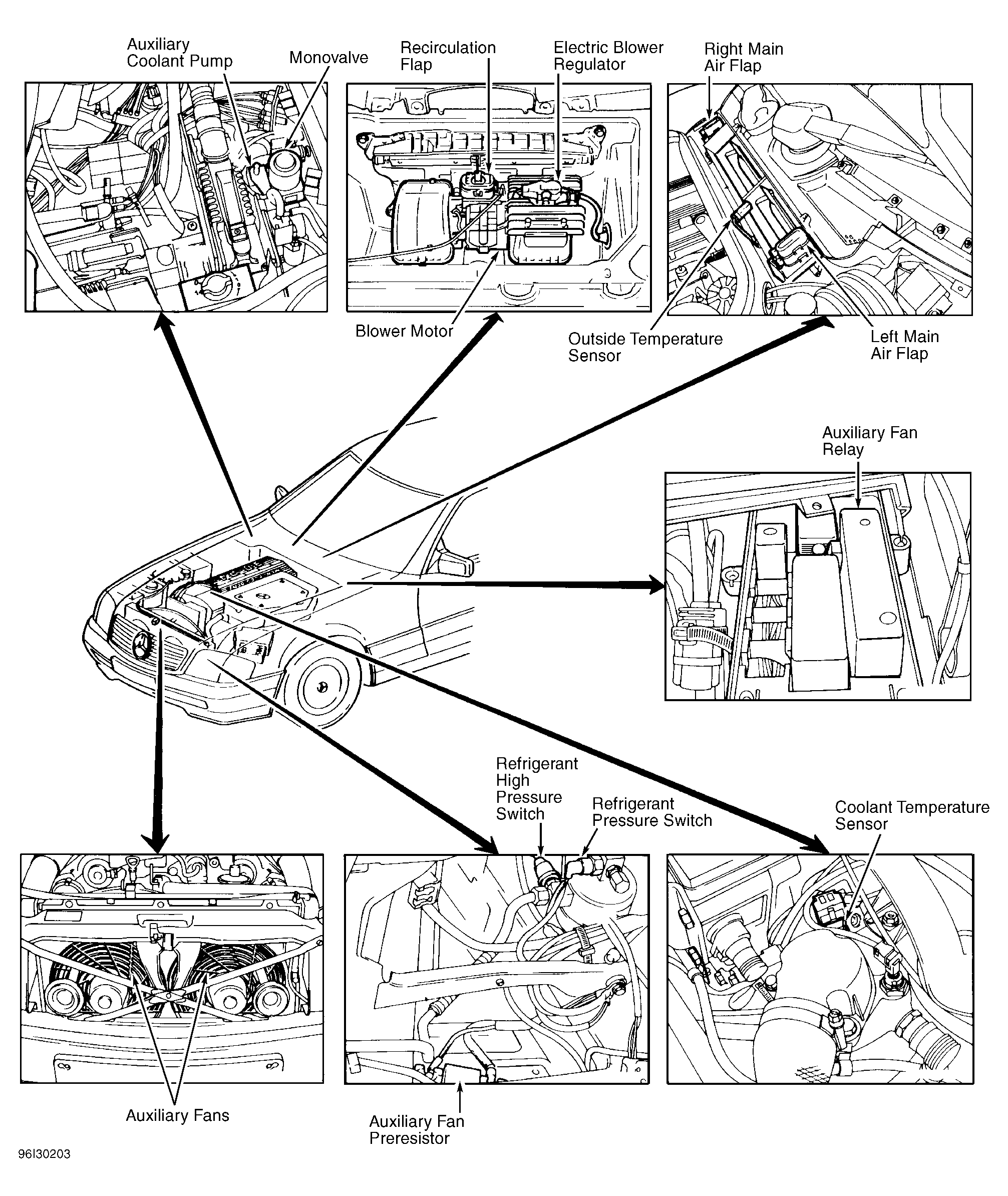

Fig 1: Identifying ACC Components (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

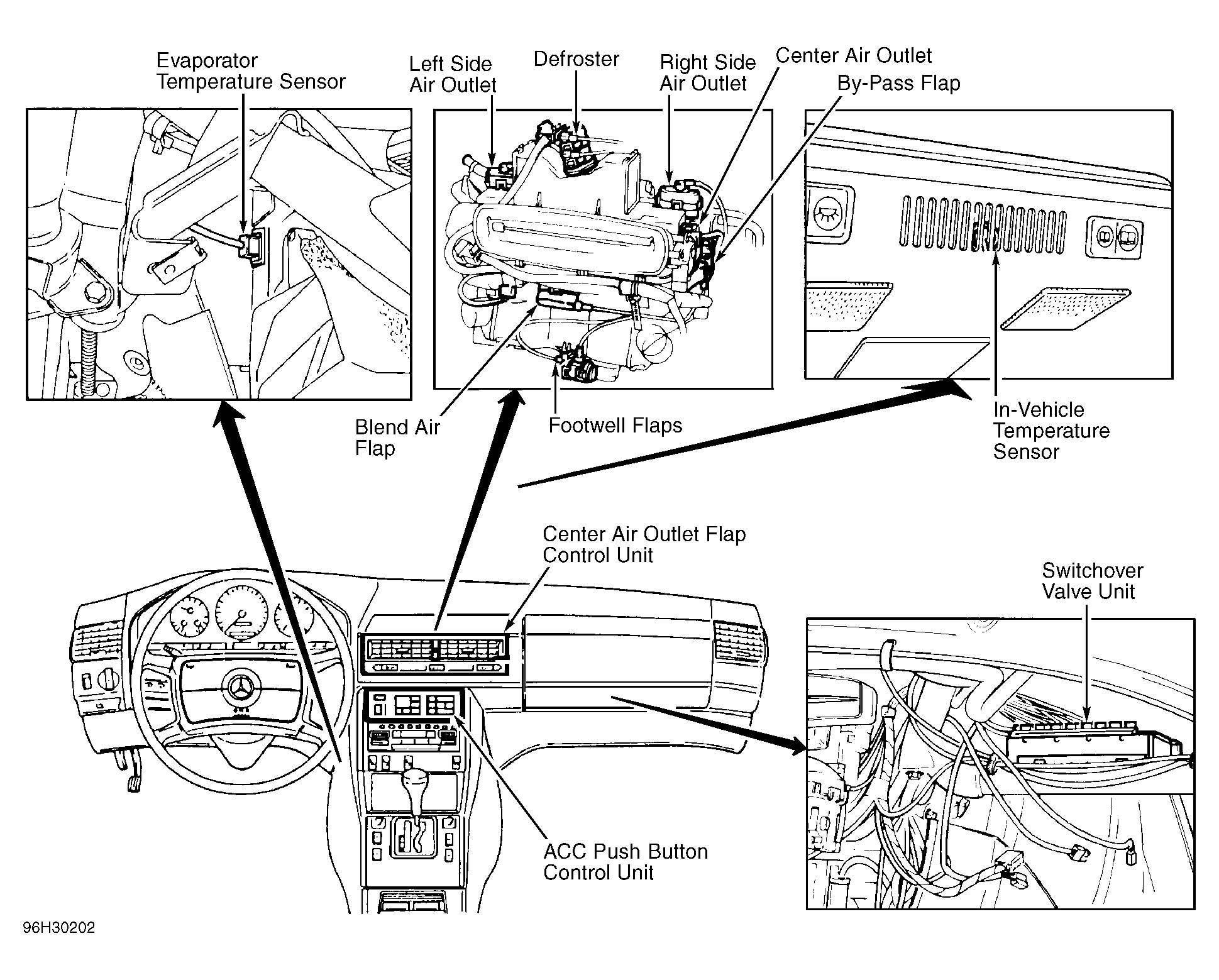

Fig 2: Identifying ACC Components (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

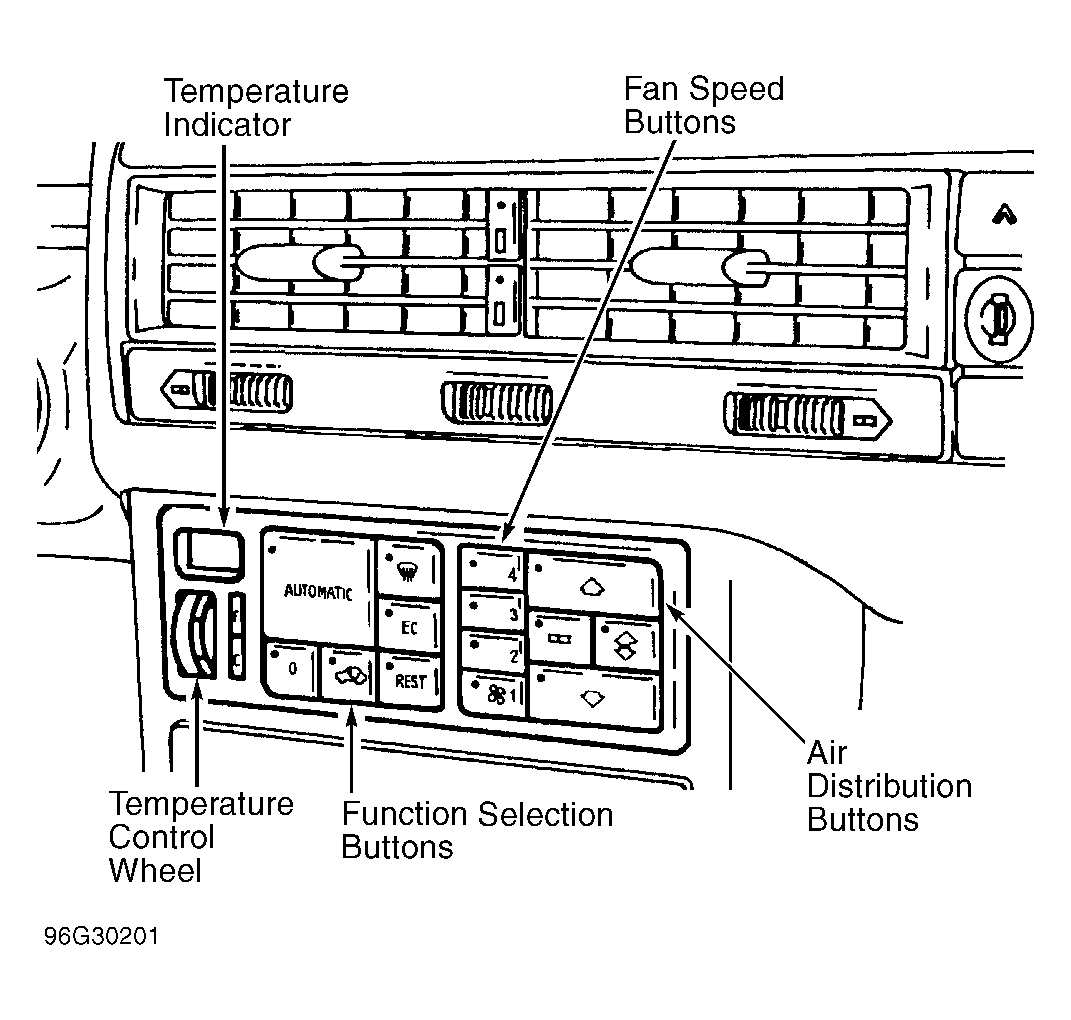

Fig 3: Identifying ACC Push-Button Control Unit (1997)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying ACC Push-Button Control Unit (1998)
