LH-SFI System Tests (Section 23)

NOTE: For aid using diagnostic charts, see USING DIAGNOSTIC CHARTS .

After verifying problem using COMPLAINT RELATED DIAGNOSTIC CHART (SECTION 12) under TROUBLE SHOOTING or SELF-DIAGNOSTIC SYSTEM , perform appropriate test step(s). For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS .

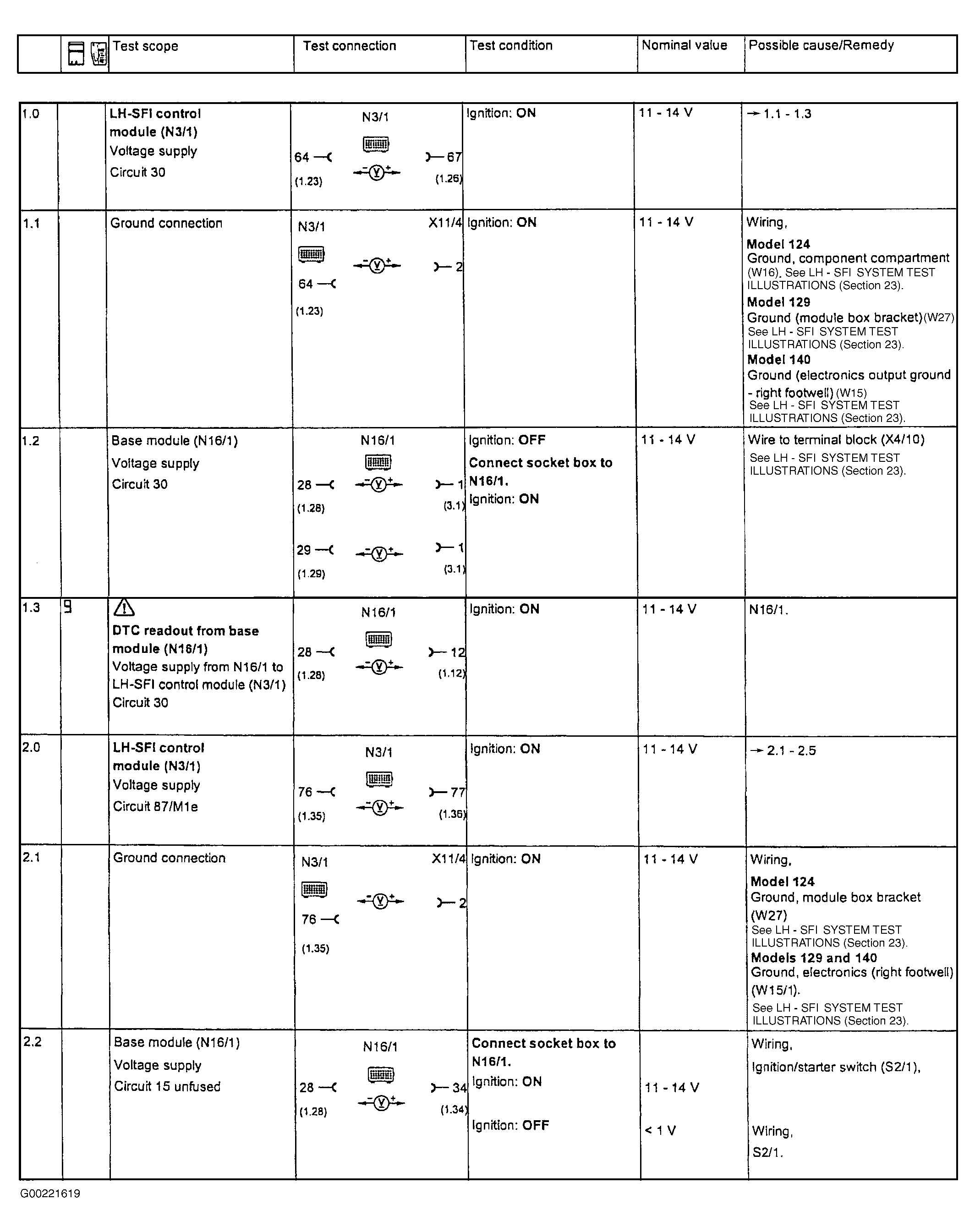

Fig 1: LH-SFI System Tests - Section 21 (Steps 1.0-2.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

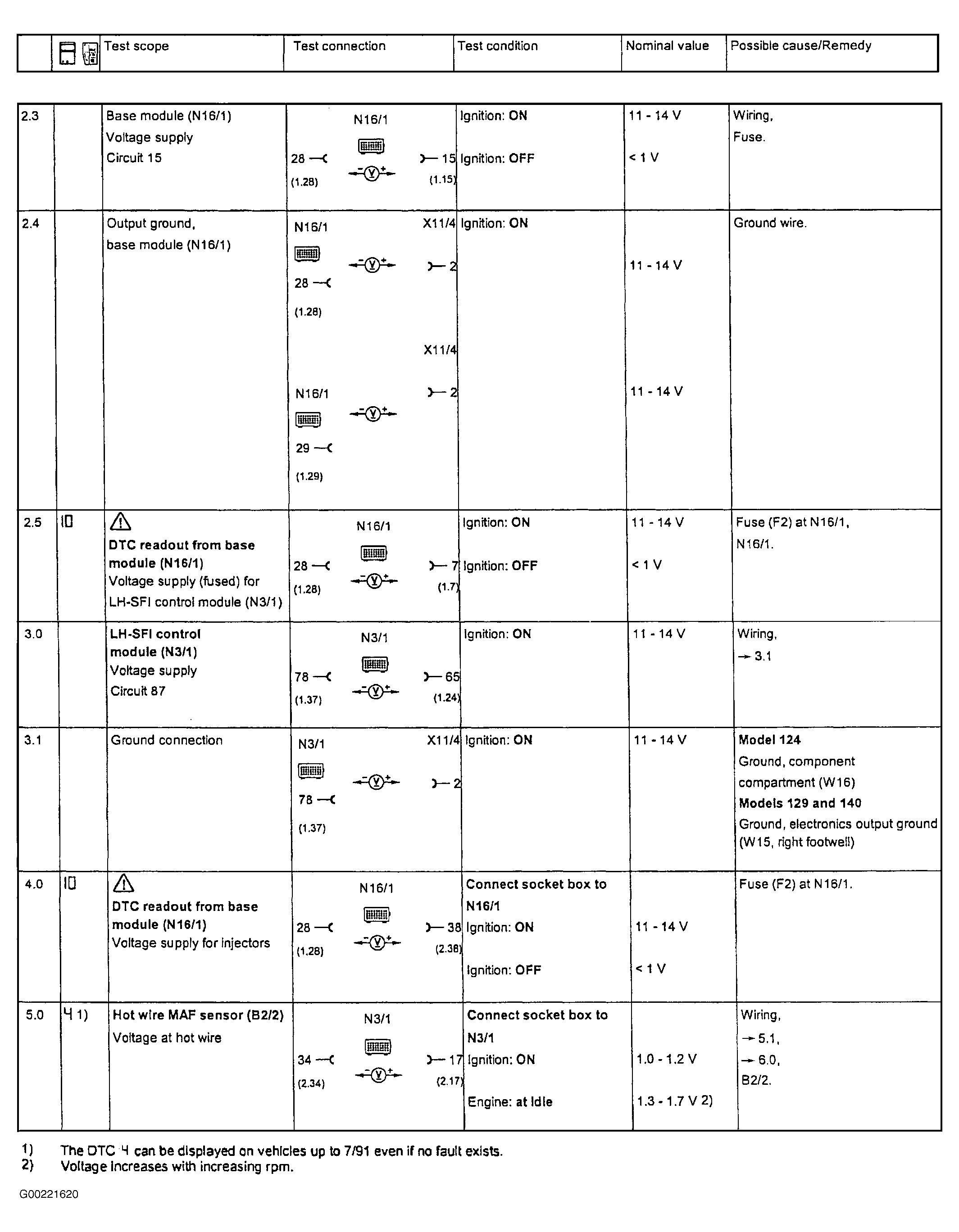

Fig 2: LH-SFI System Tests - Section 23 (Steps 2.3-5.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

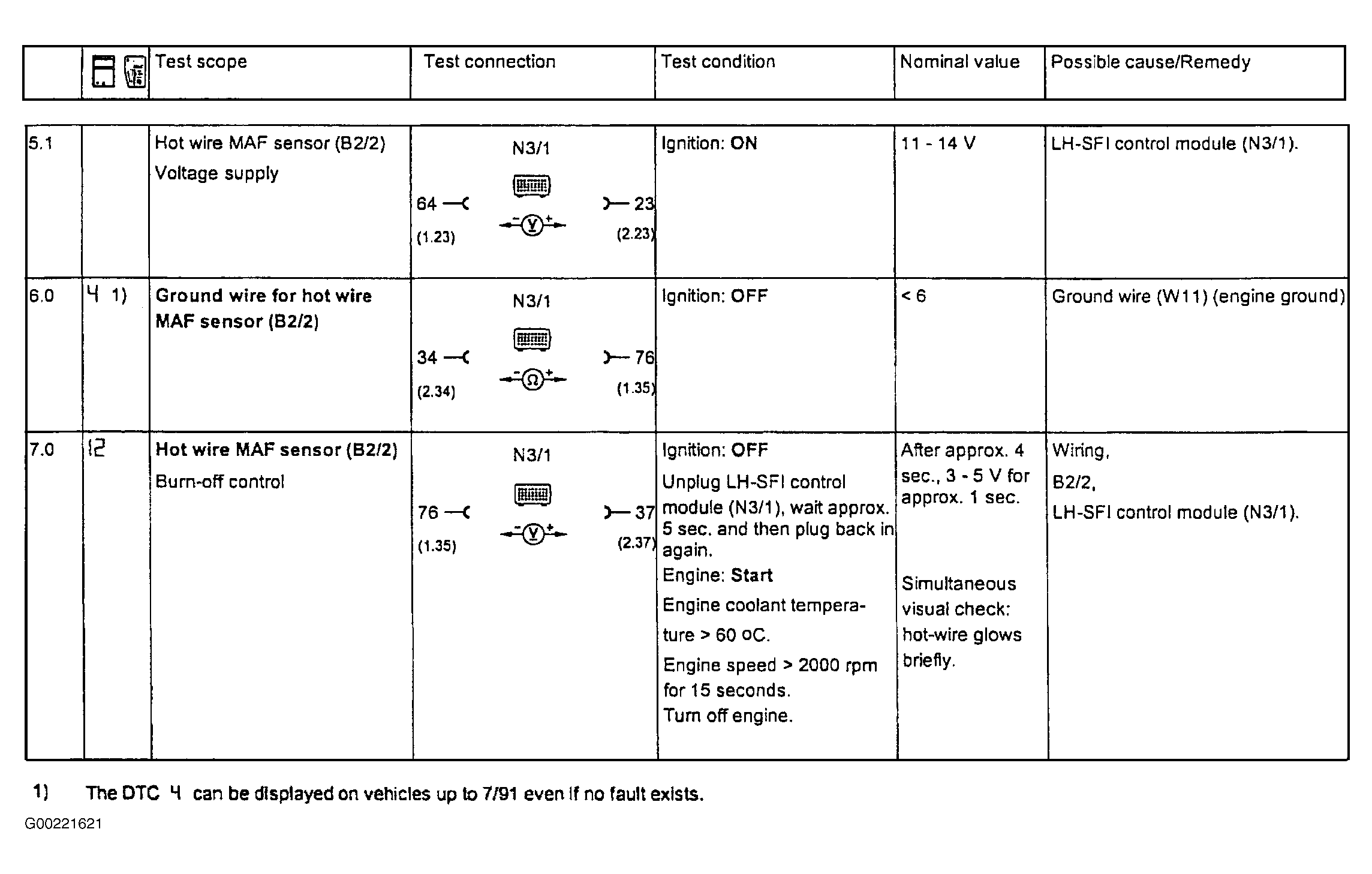

Fig 3: LH-SFI System Tests - Section 23 (Steps 5.1-7.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

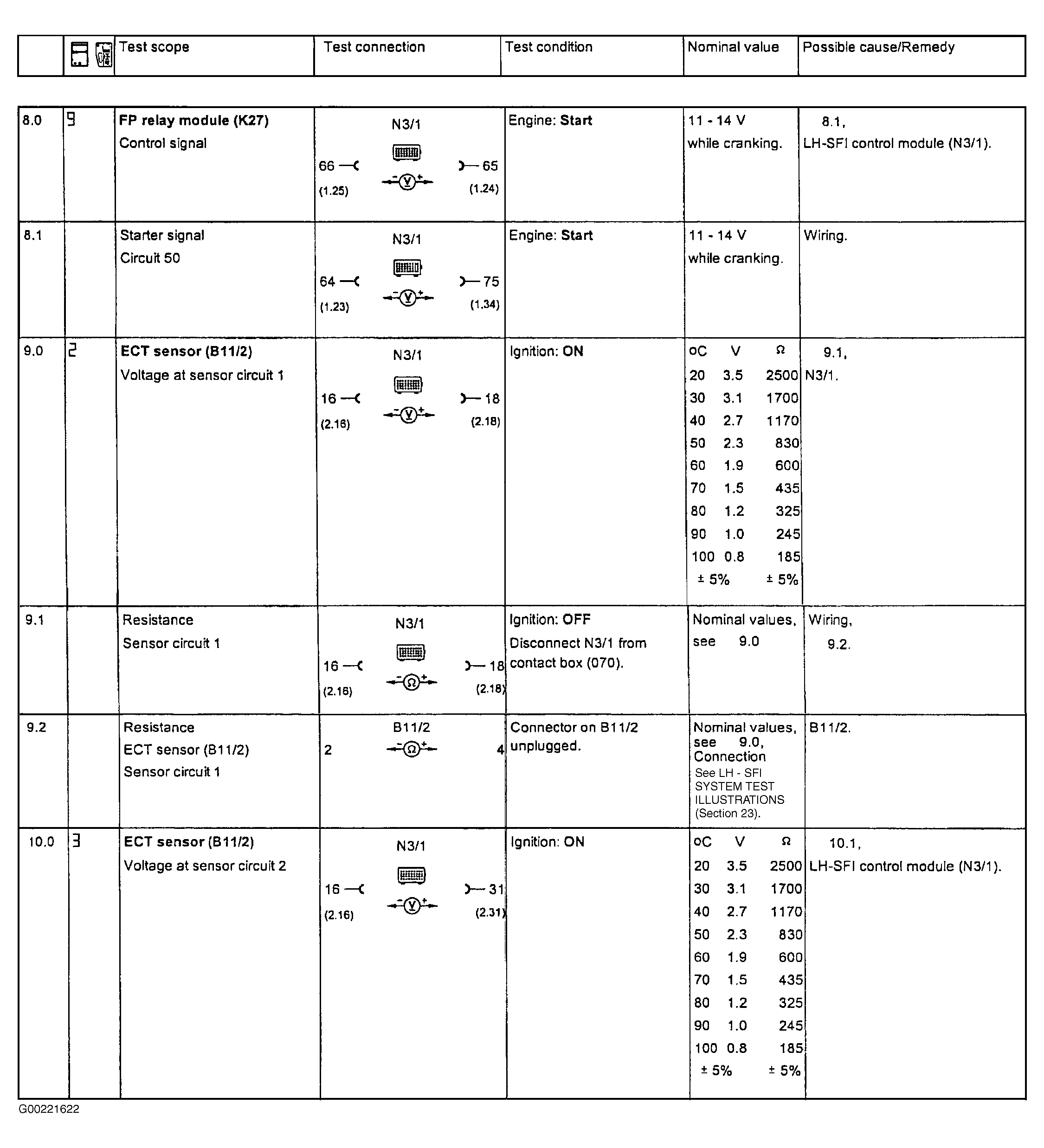

Fig 4: LH-SFI System Tests - Section 23 (Steps 8.0-10.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

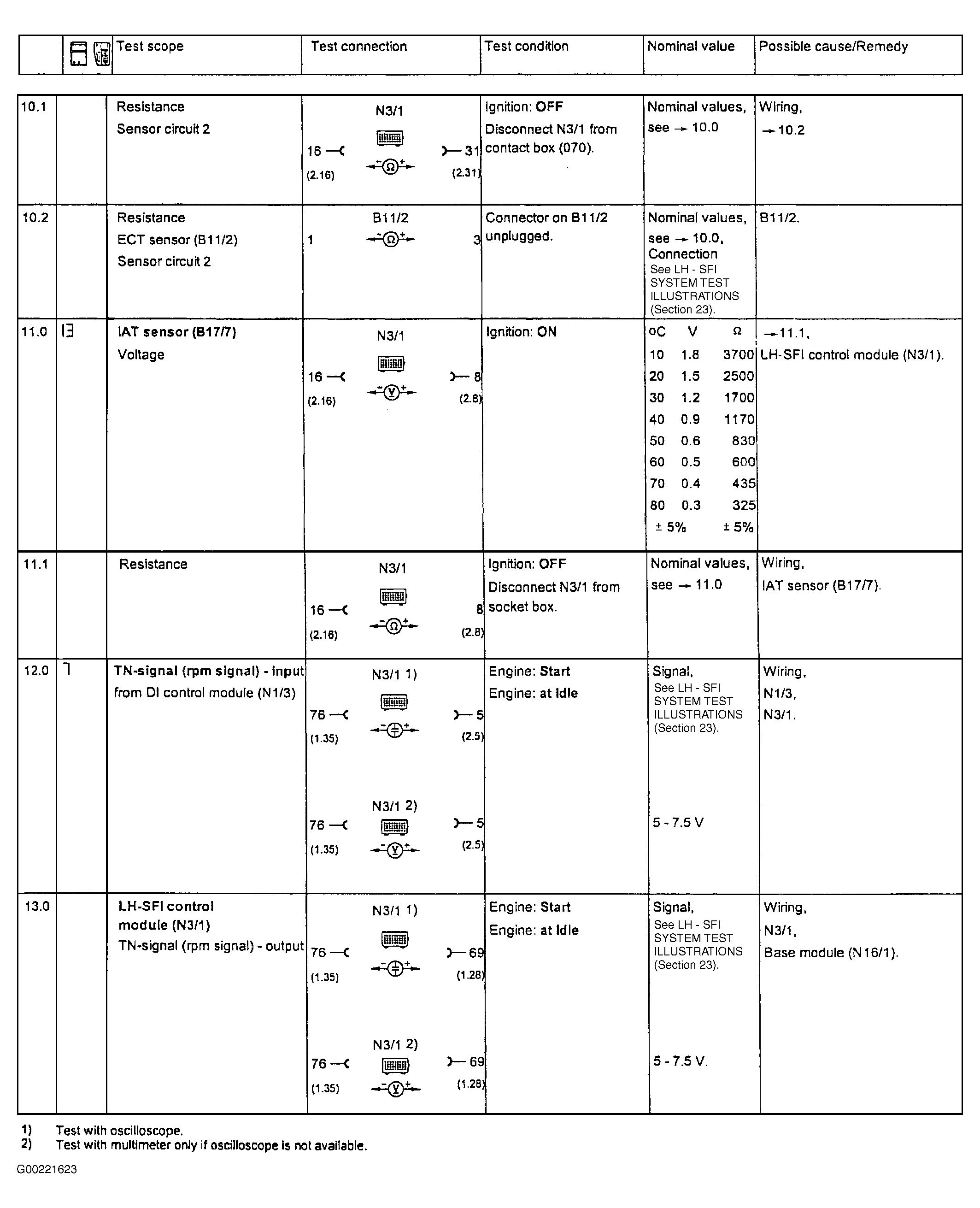

Fig 5: LH-SFI System Tests - Section 23 (Steps 10.1-13.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

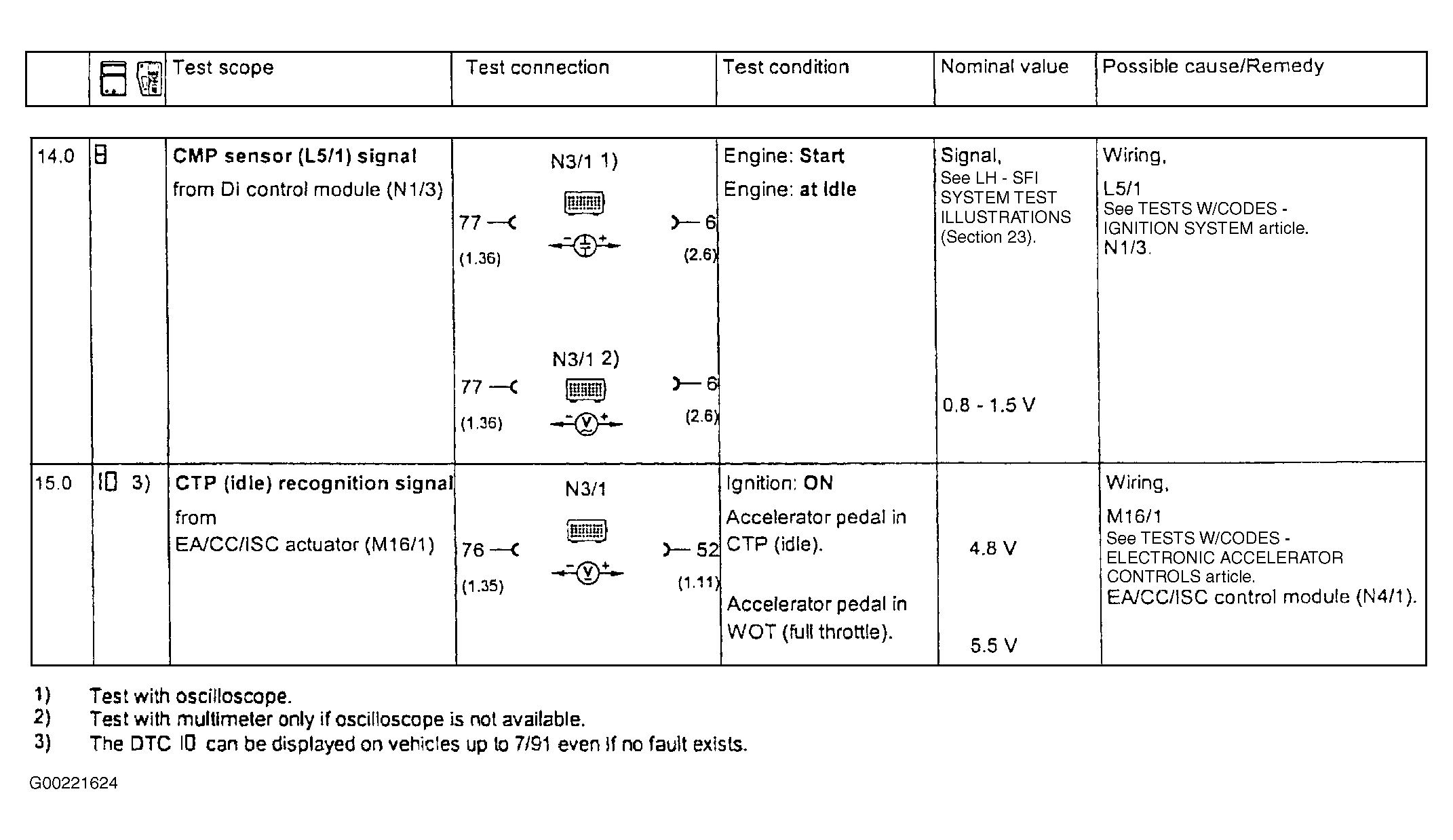

Fig 6: LH-SFI System Tests - Section 23 (Steps 14.0-15.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

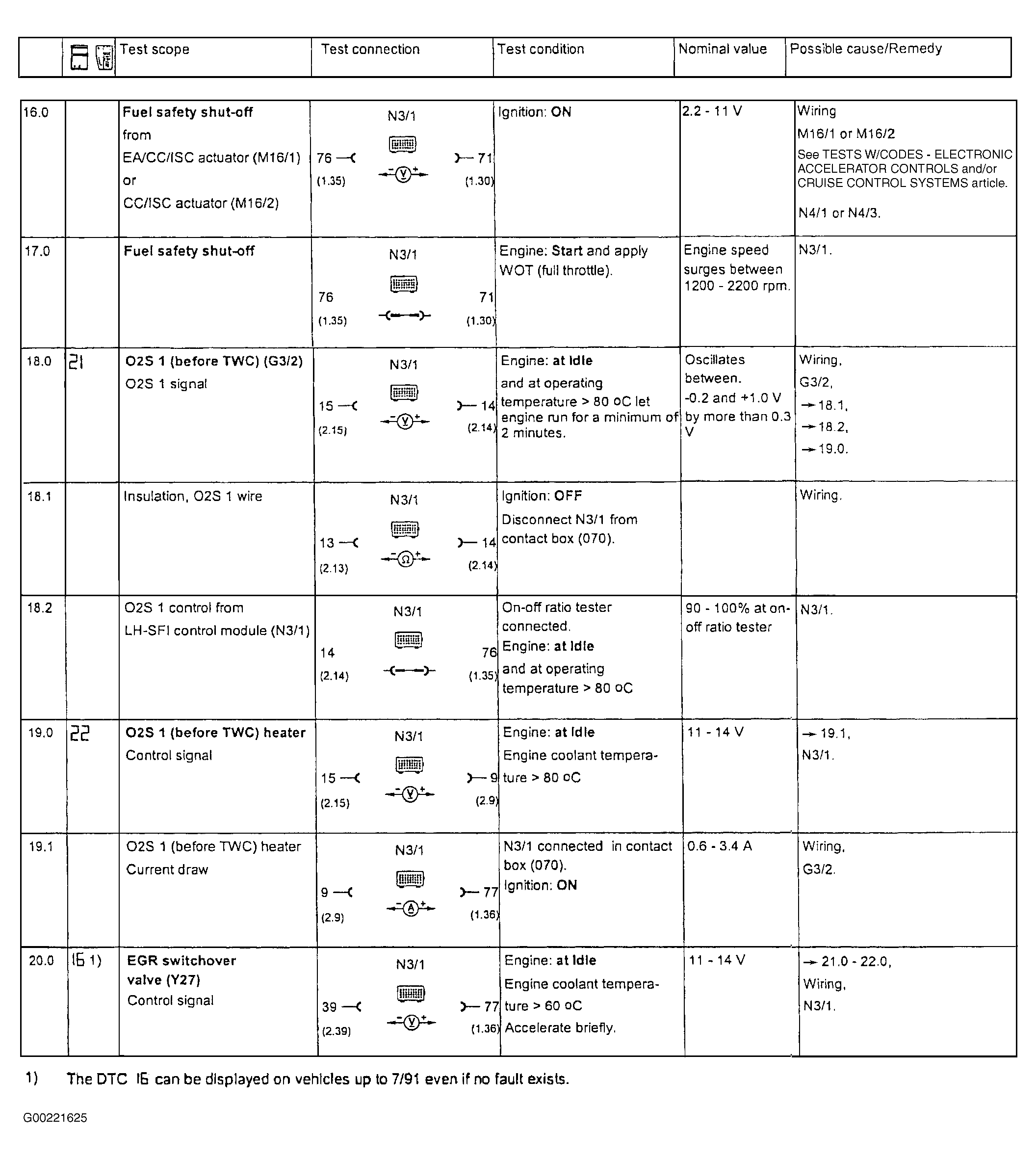

Fig 7: LH-SFI System Tests - Section 23 (Steps 16.0-20.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

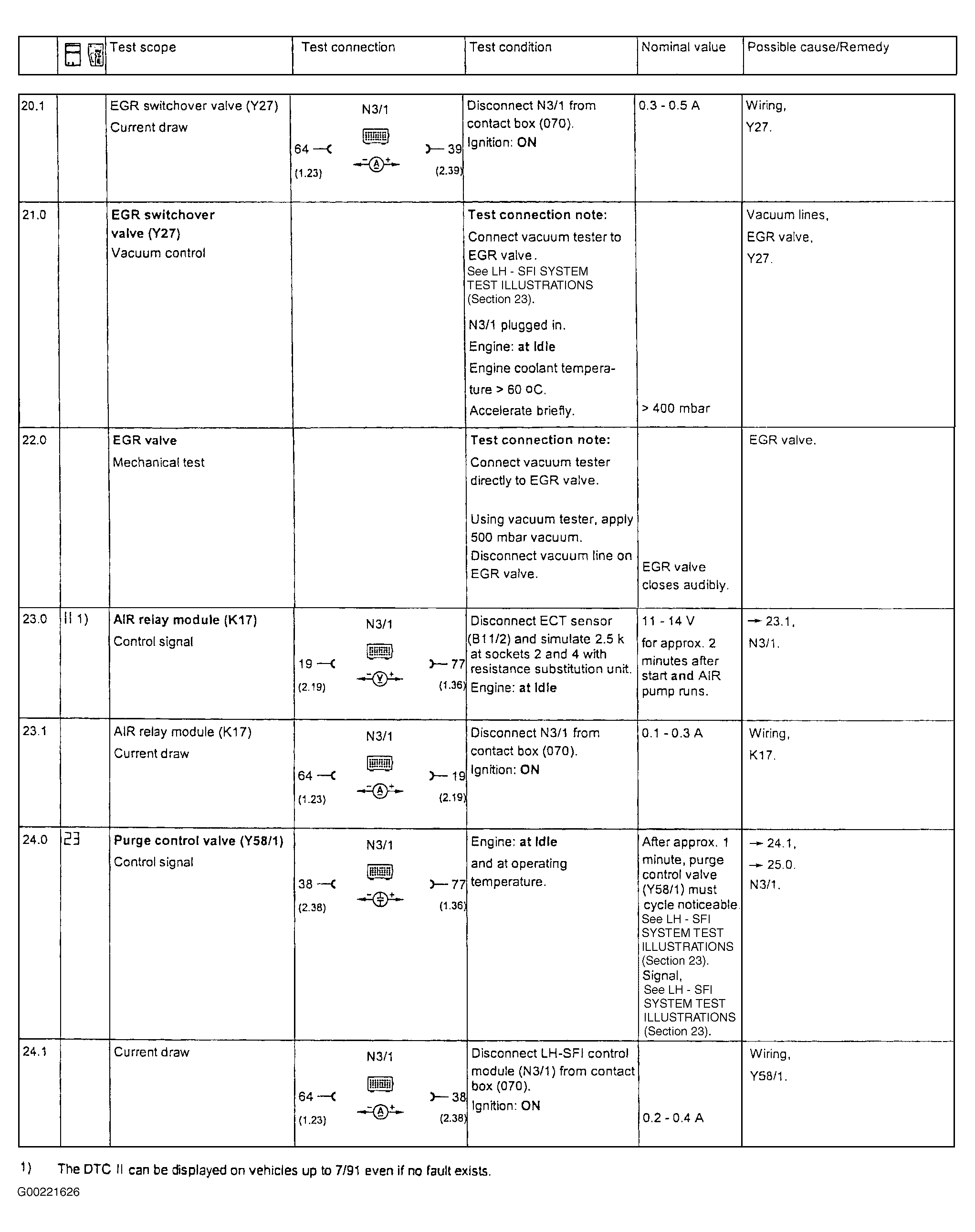

Fig 8: LH-SFI System Tests - Section 23 (Steps 20.1-24.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

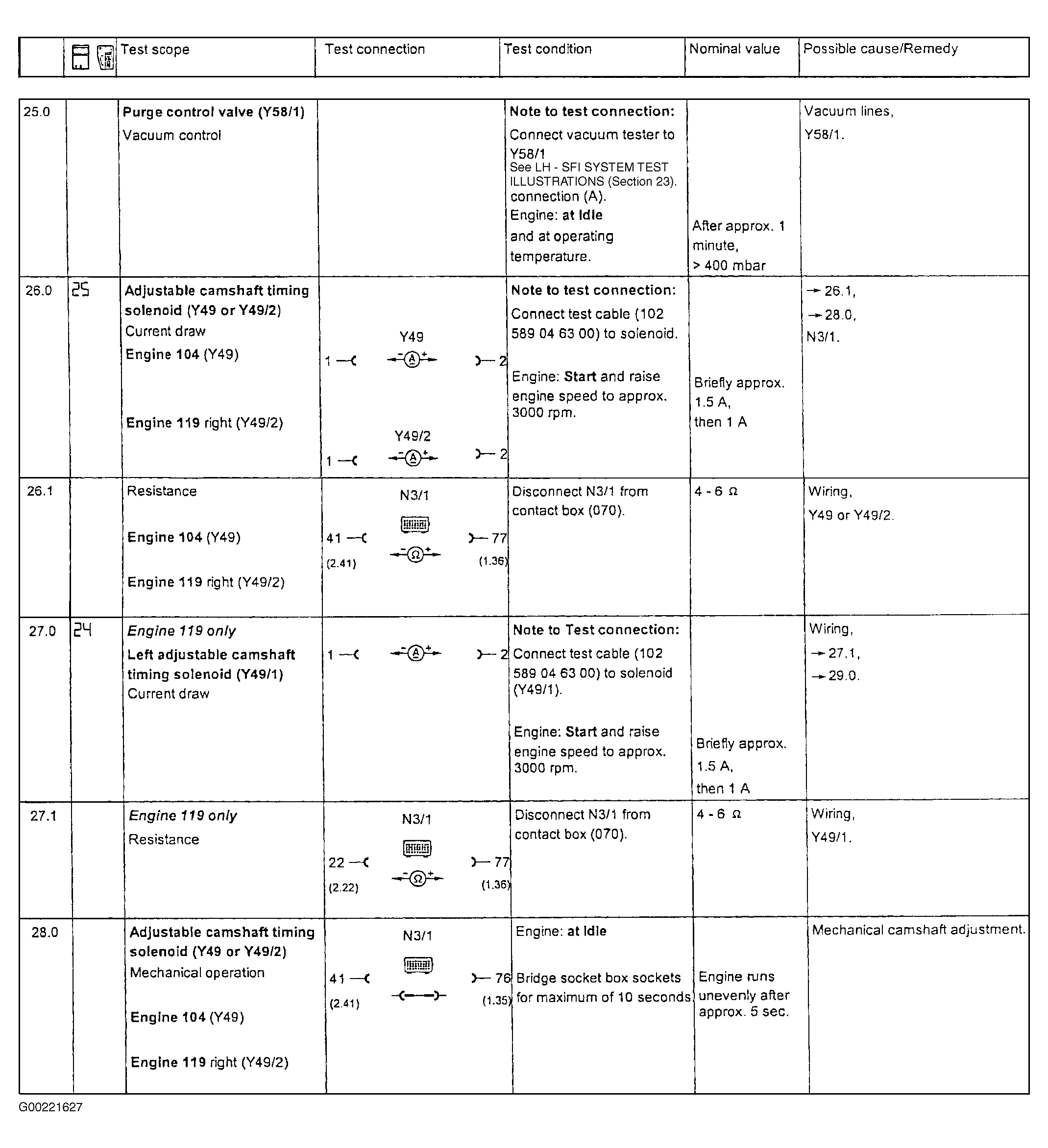

Fig 9: LH-SFI System Tests - Section 23 (Steps 25.0-28.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

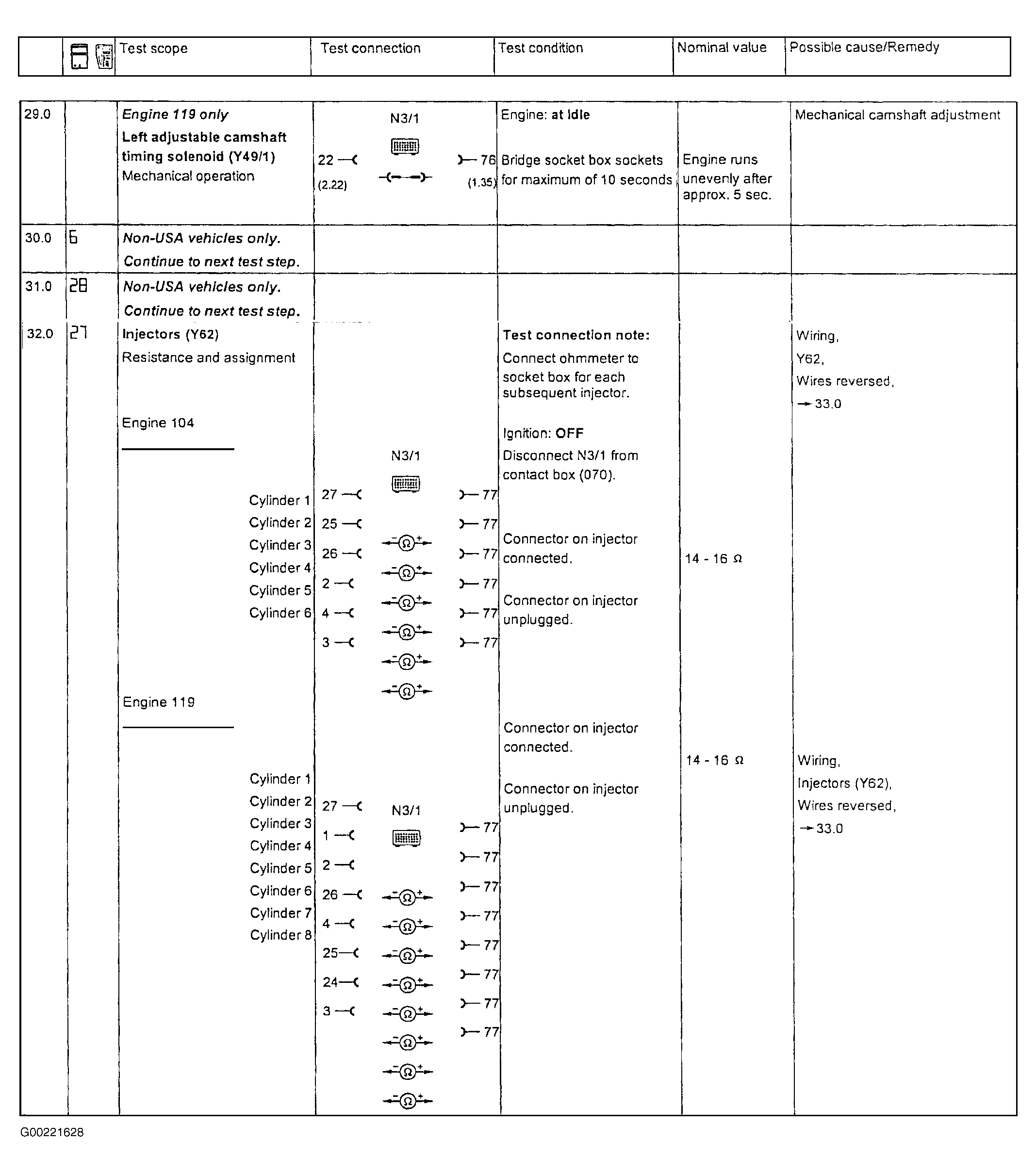

Fig 10: LH-SFI System Tests - Section 23 (Steps 29.0-32.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

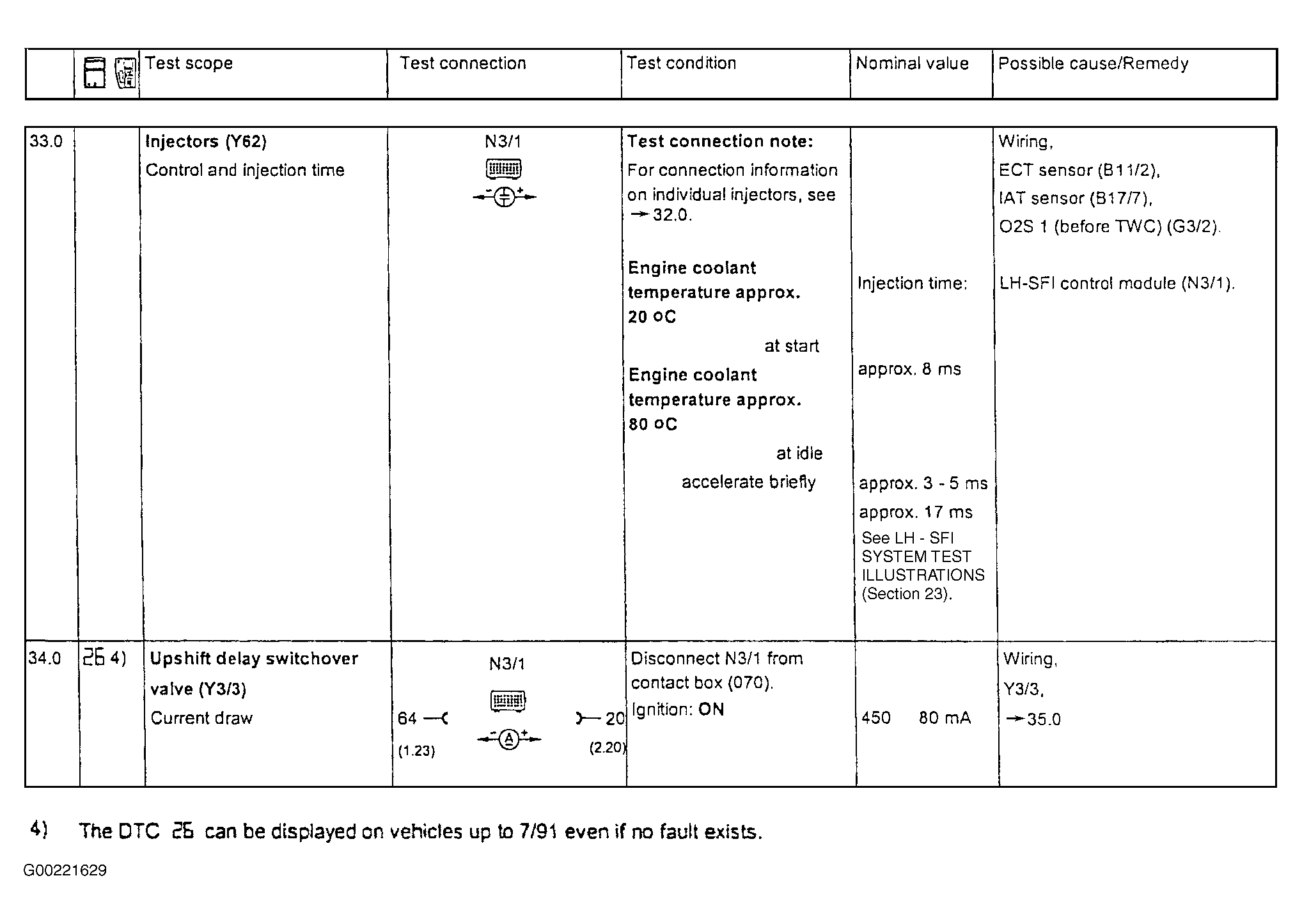

Fig 11: LH-SFI System Tests - Section 23 (Steps 33.0 & 34.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

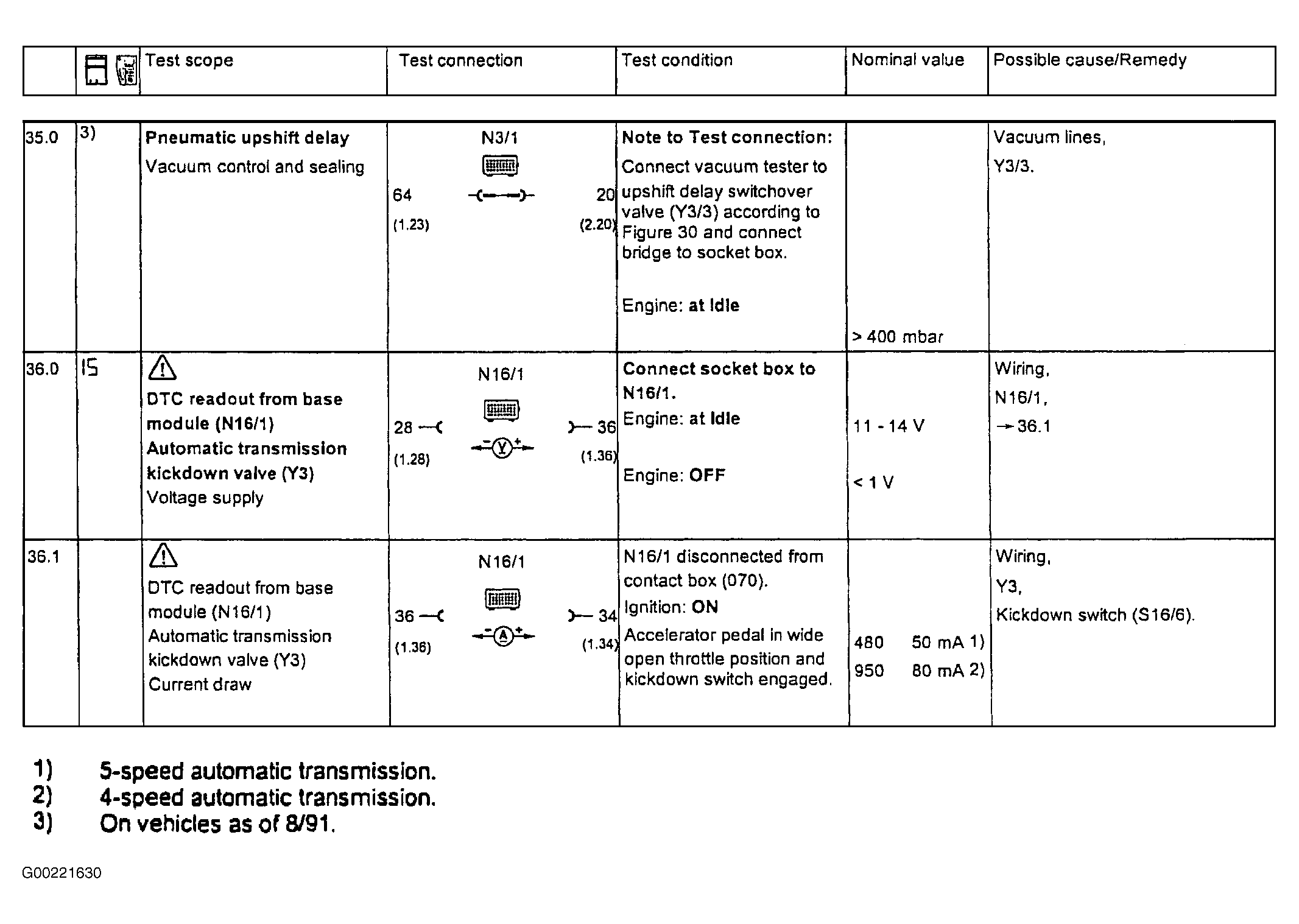

Fig 12: LH-SFI System Tests - Section 23 (Steps 35.0-36.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

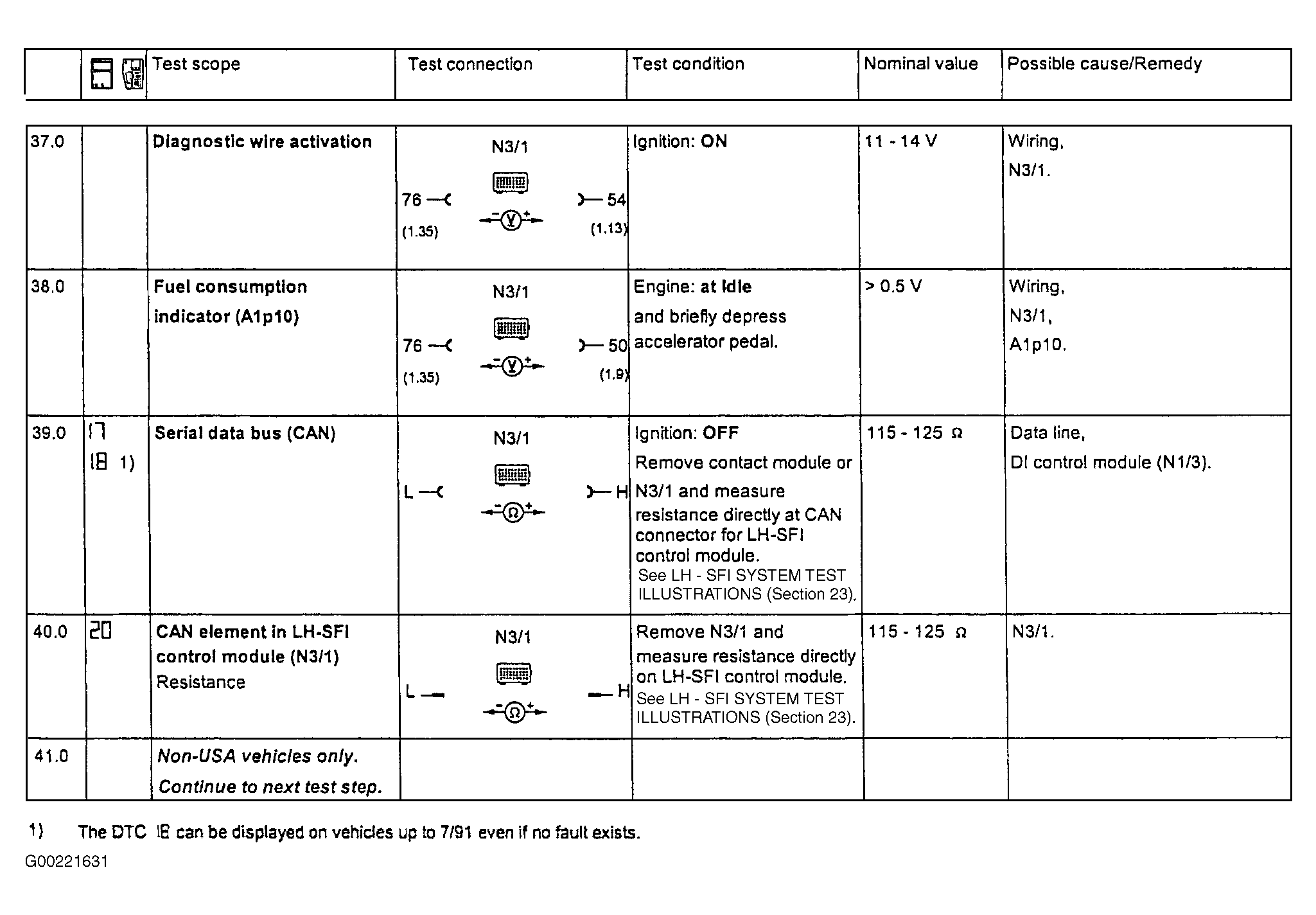

Fig 13: LH-SFI System Tests - Section 23 (Steps 37.0-41.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

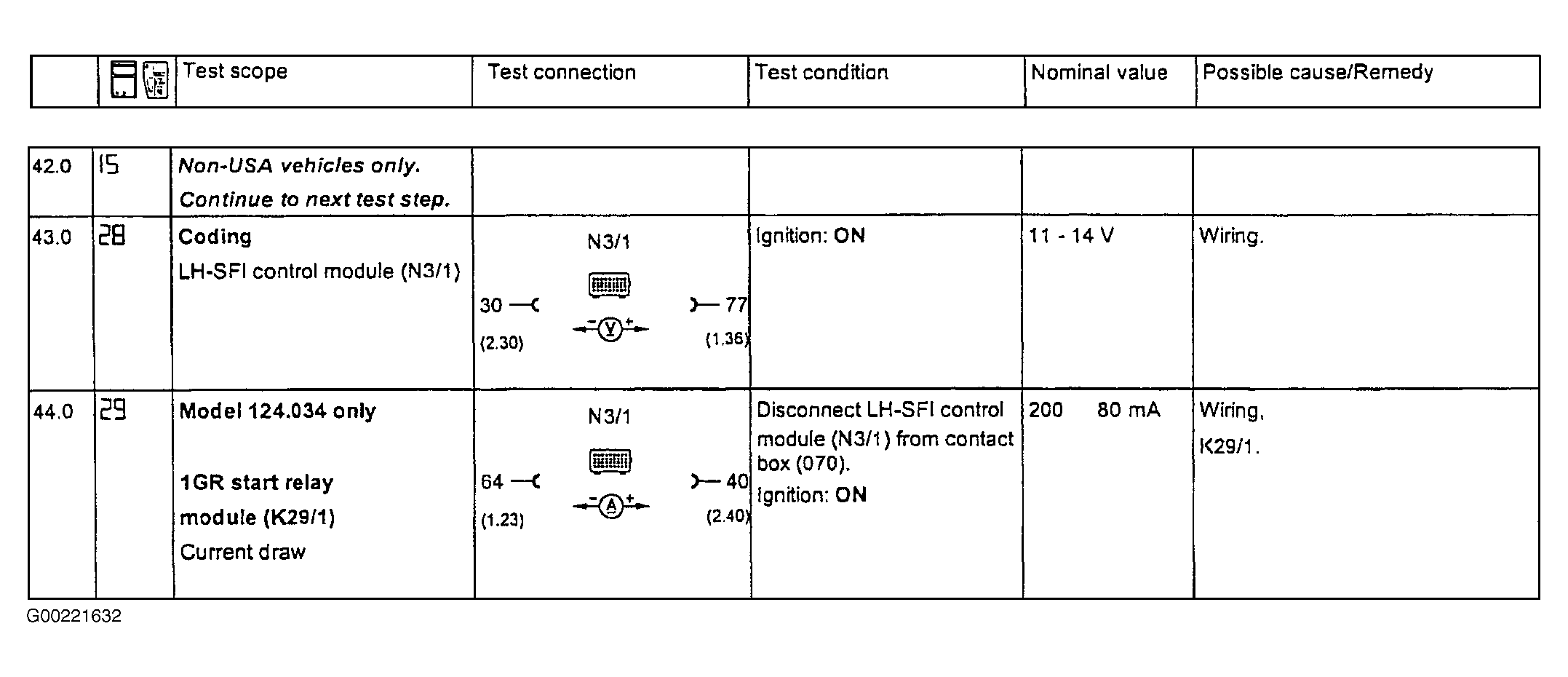

Fig 14: LH-SFI System Tests - Section 23 (Steps 42.0-44.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
