Connector Identification (Section 22)

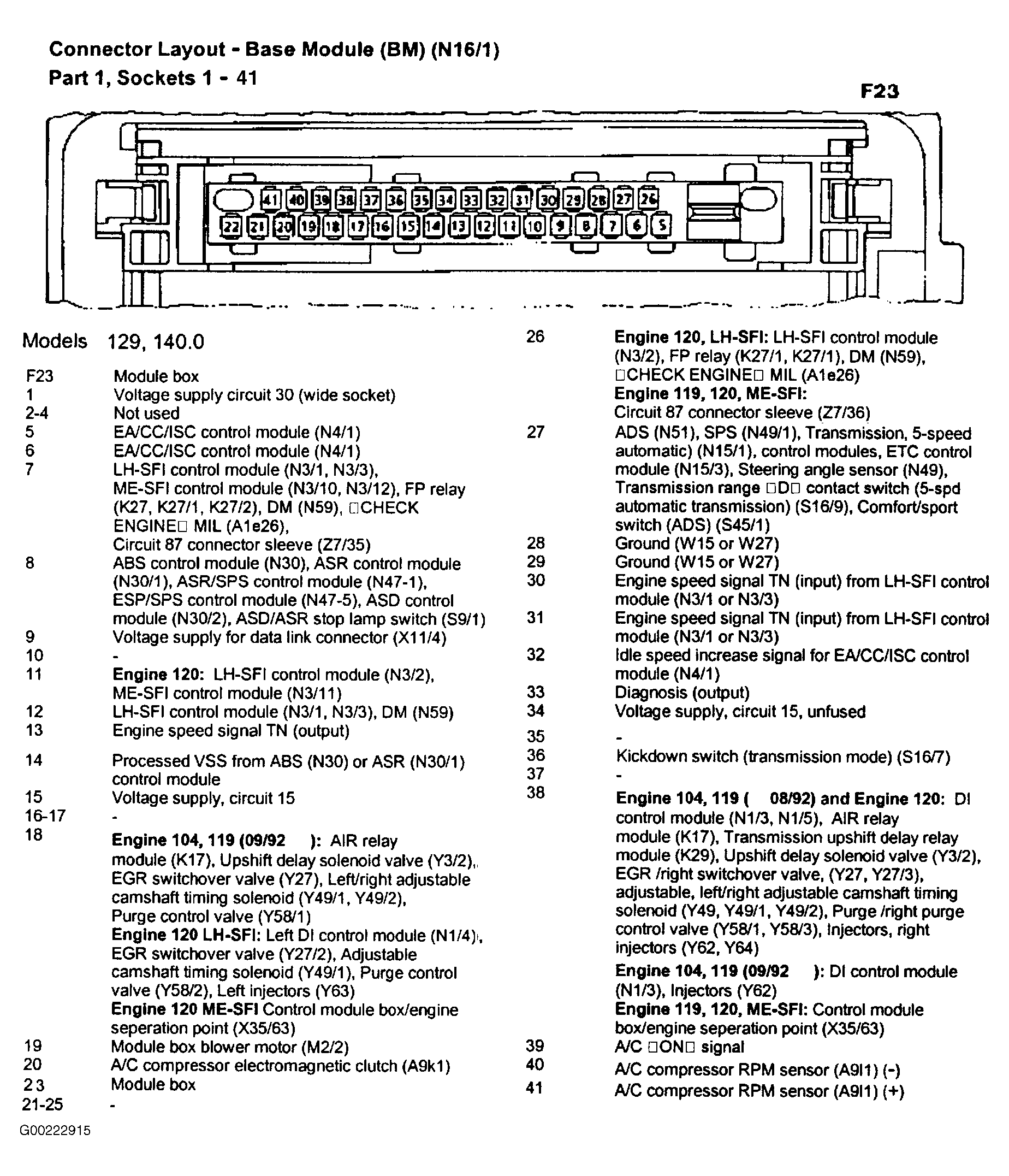

Fig 1: Base Module (N16/1) Connector Layout (Model 124, 129 & 140.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

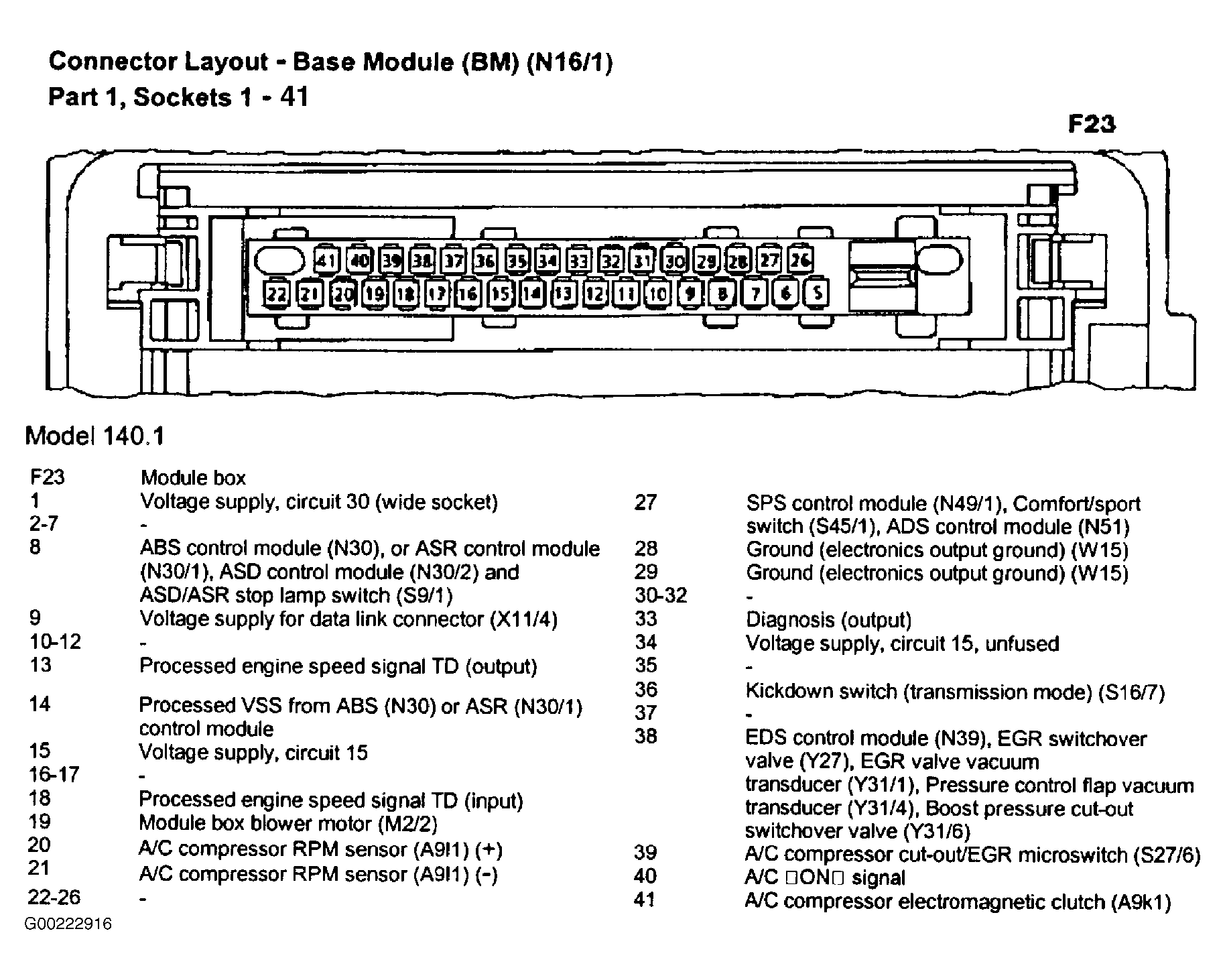

Fig 2: Base Module (N16/1) Connector Layout (Model 140.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
