Electrical System Tests (Section 23)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS  .

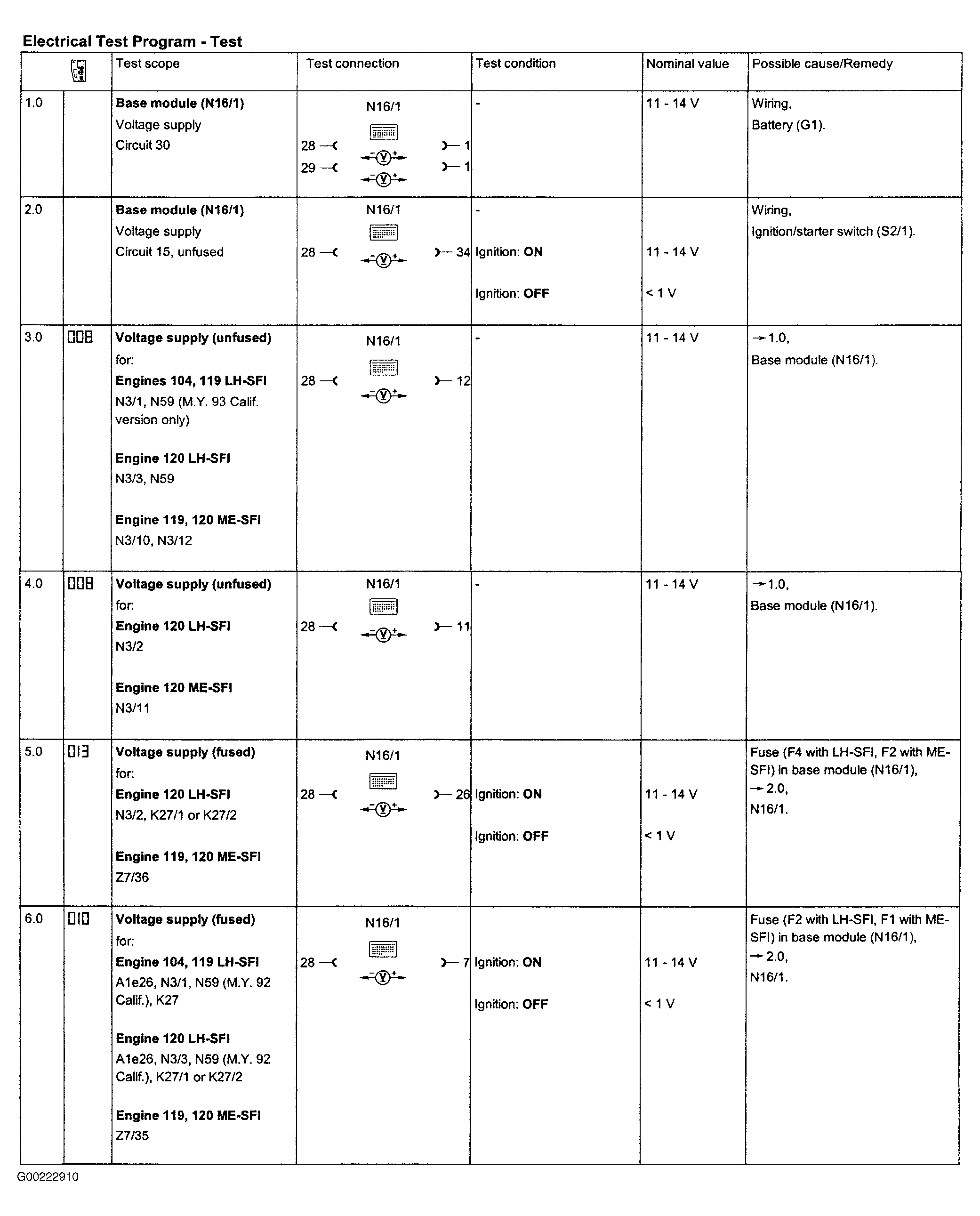

Fig 1: Electrical System Tests - Section 23 (Steps 1.0-6.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

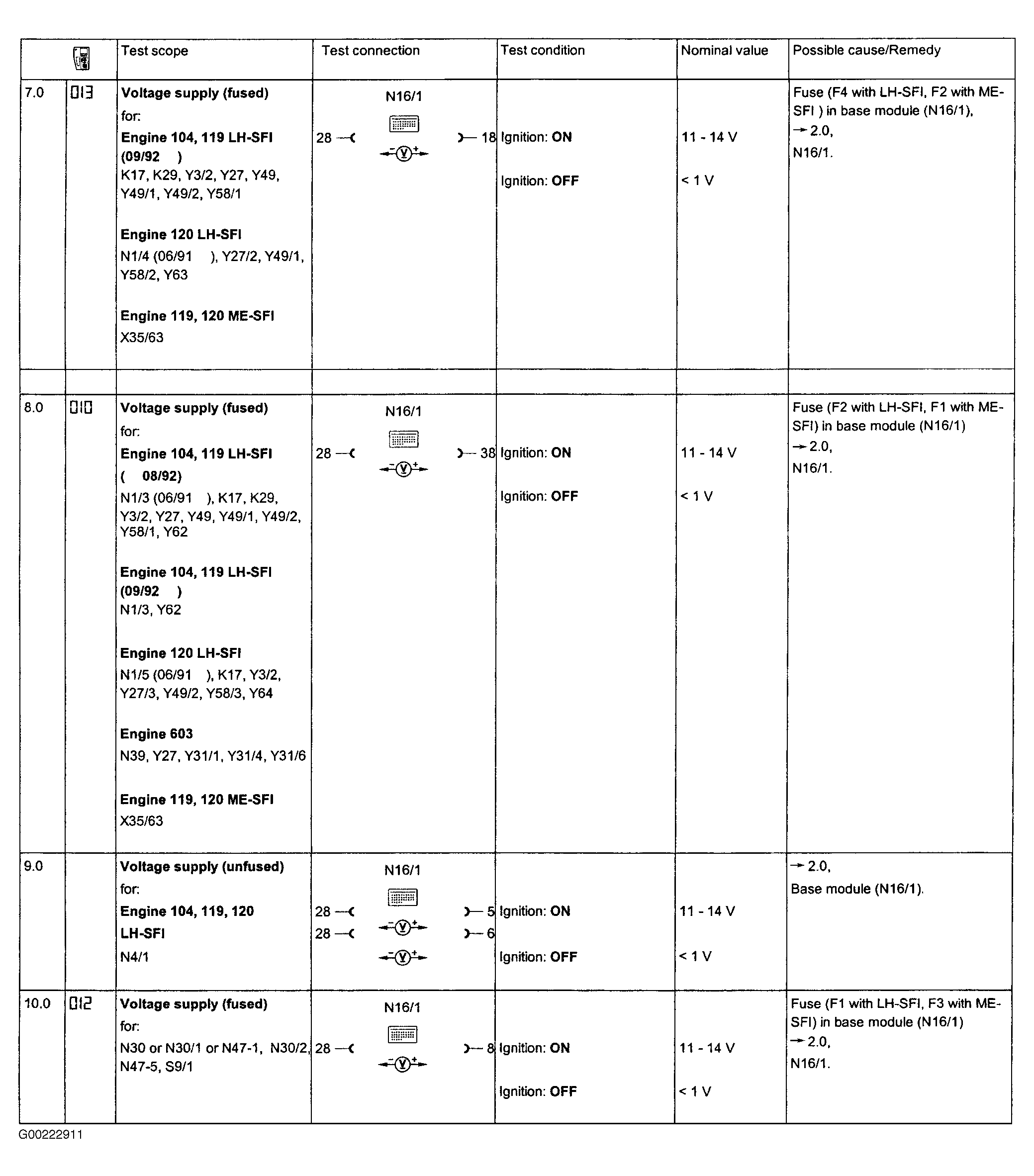

Fig 2: Electrical System Tests - Section 23 (Steps 7.0-10.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

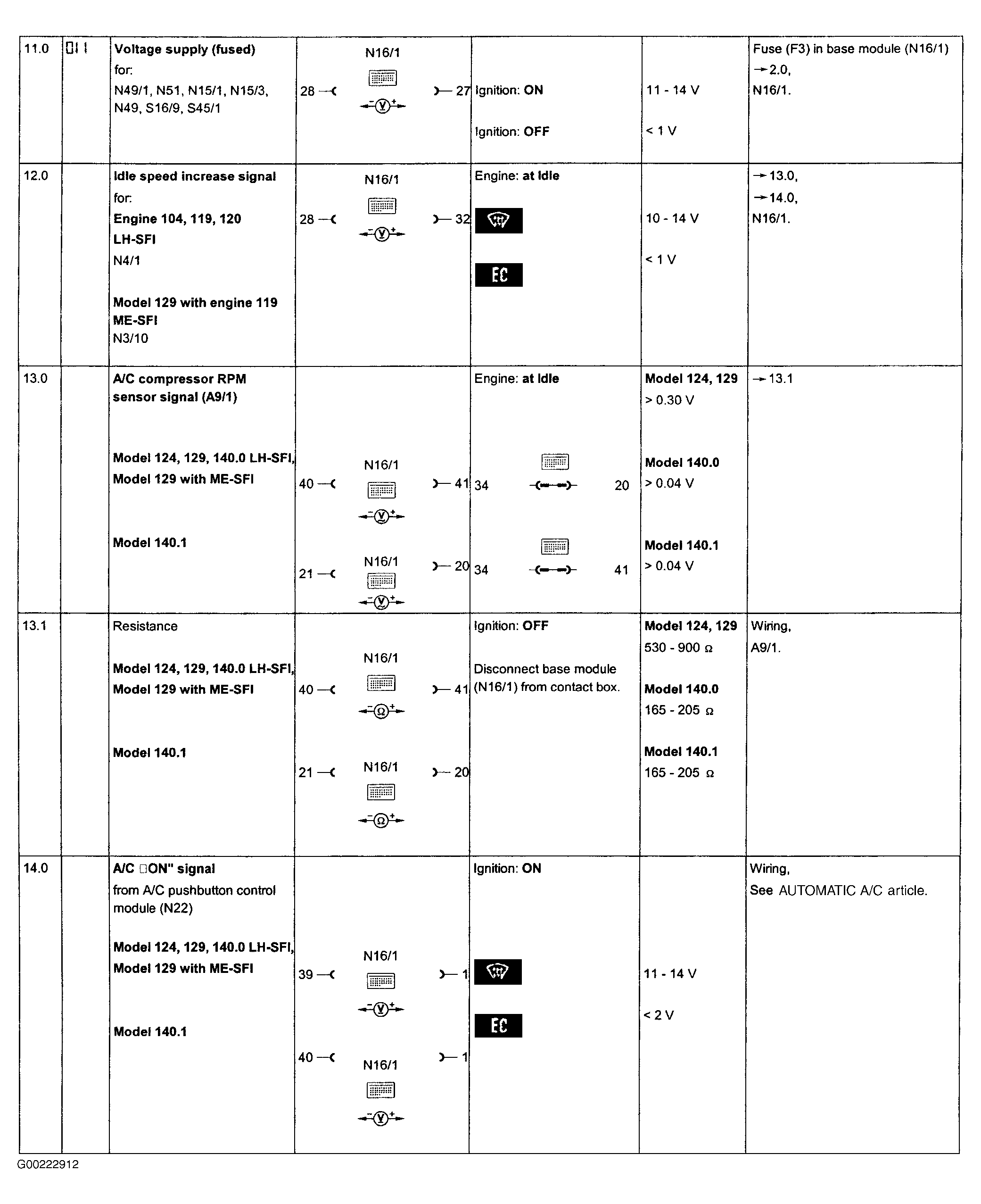

Fig 3: Electrical System Tests - Section 23 (Steps 11.0-14.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

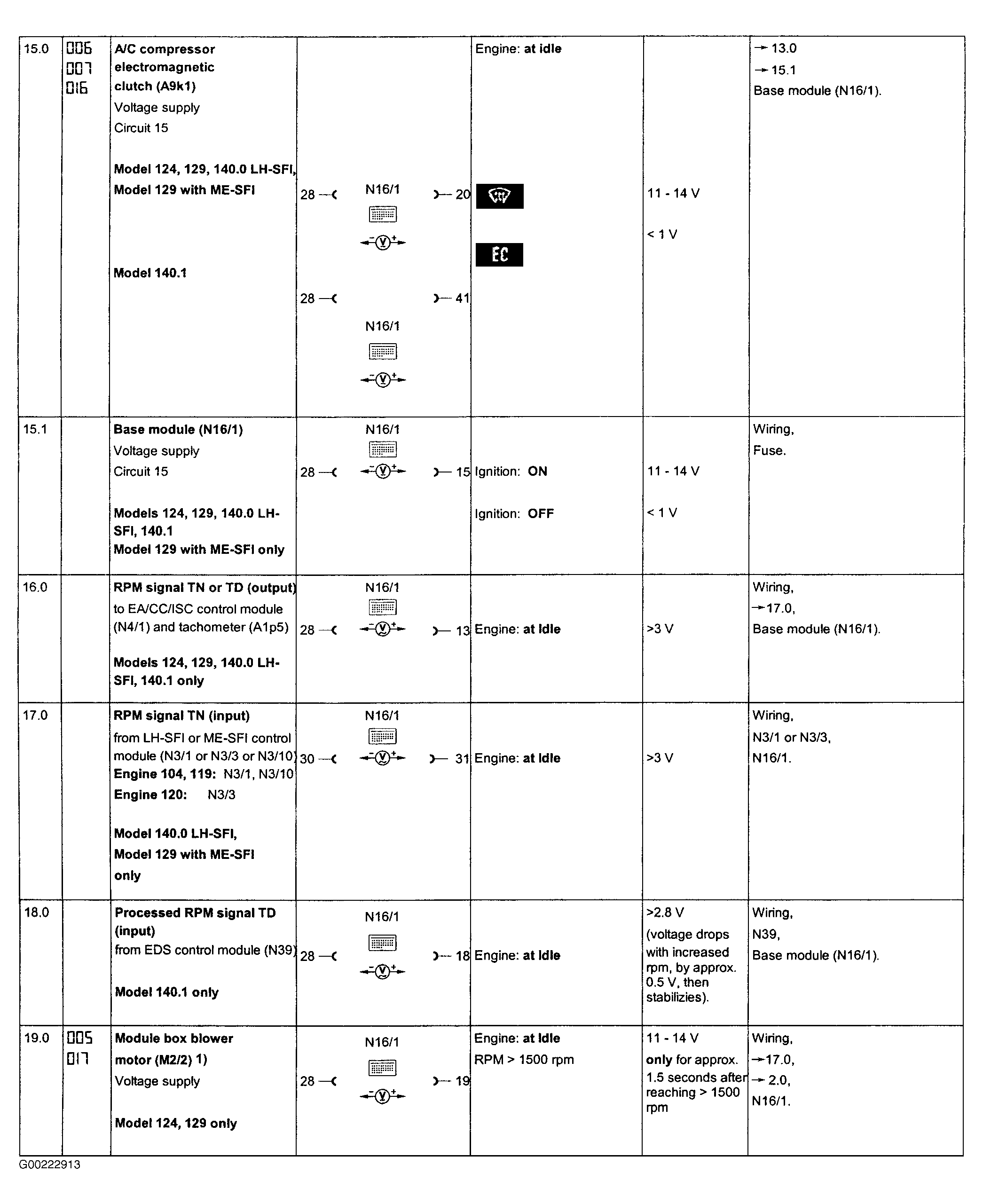

Fig 4: Electrical System Tests - Section 23 (Steps 15.0-19.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

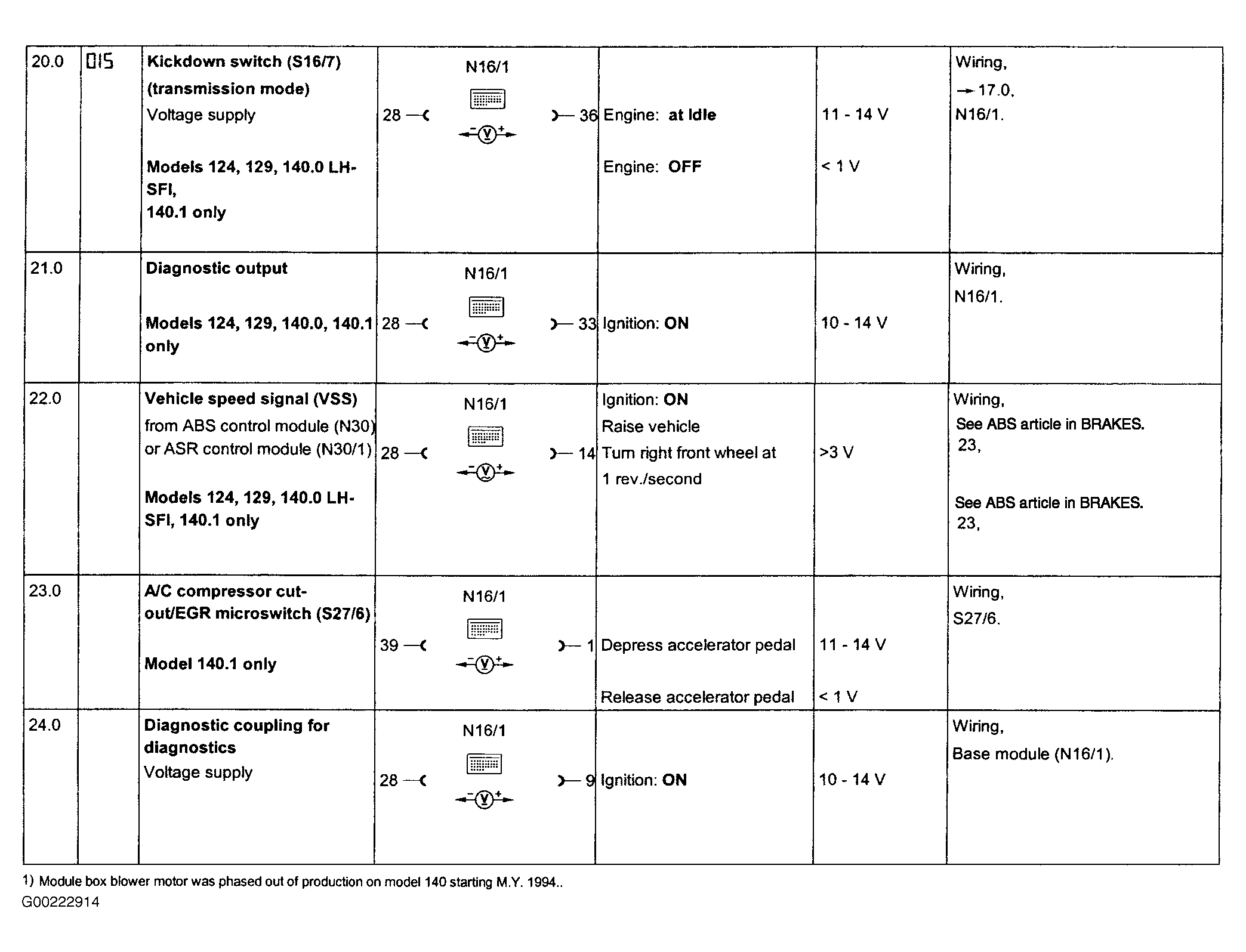

Fig 5: Electrical System Tests - Section 23 (Steps 20.0-24.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
