Mercedes Benz
›
1995
›
SL600
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes - LH-SFI System
›
Connector Identification
Connector Identification

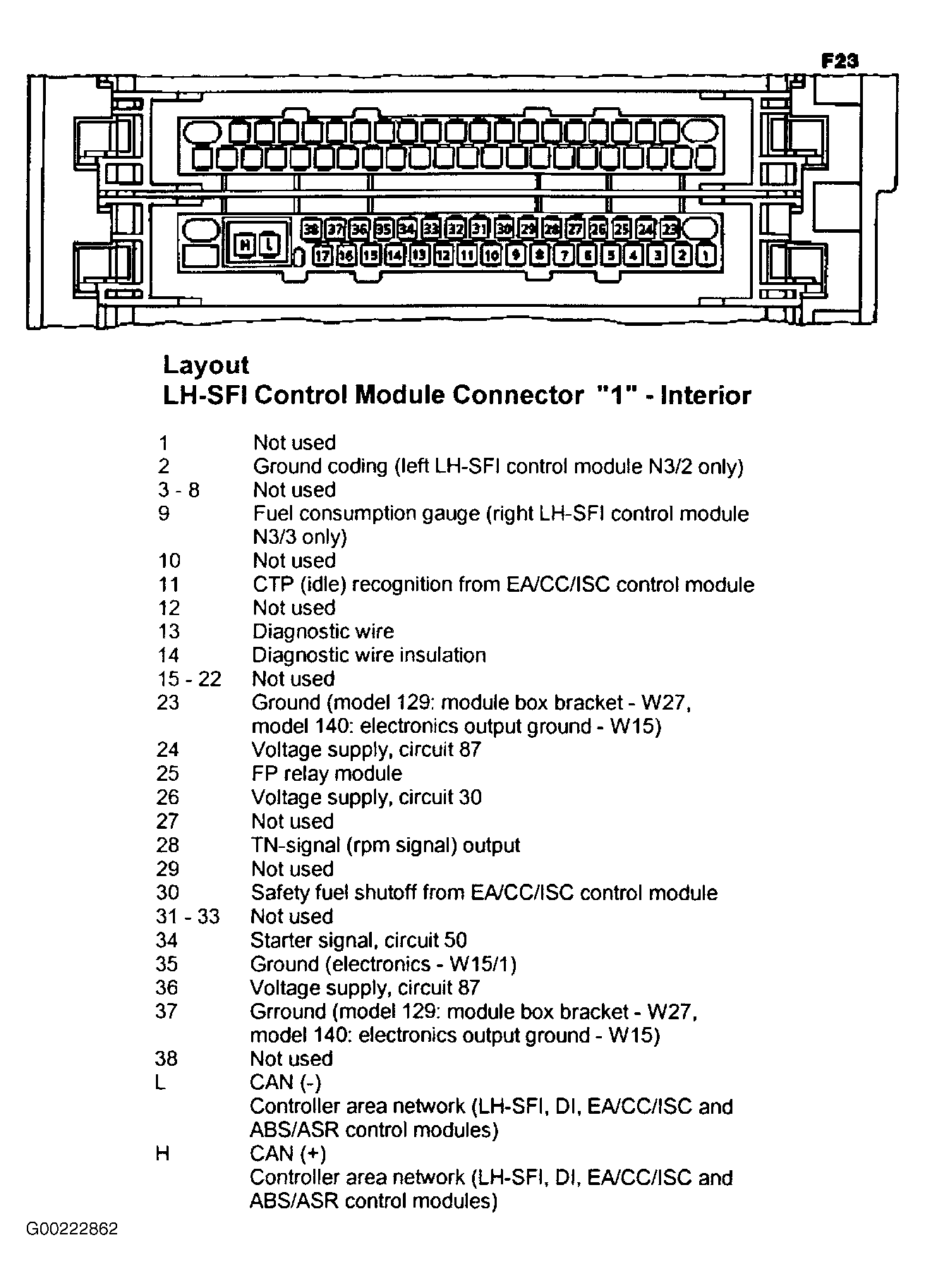

Fig 1: LH-SFI Control Module Connector (1 Interior) Pin Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

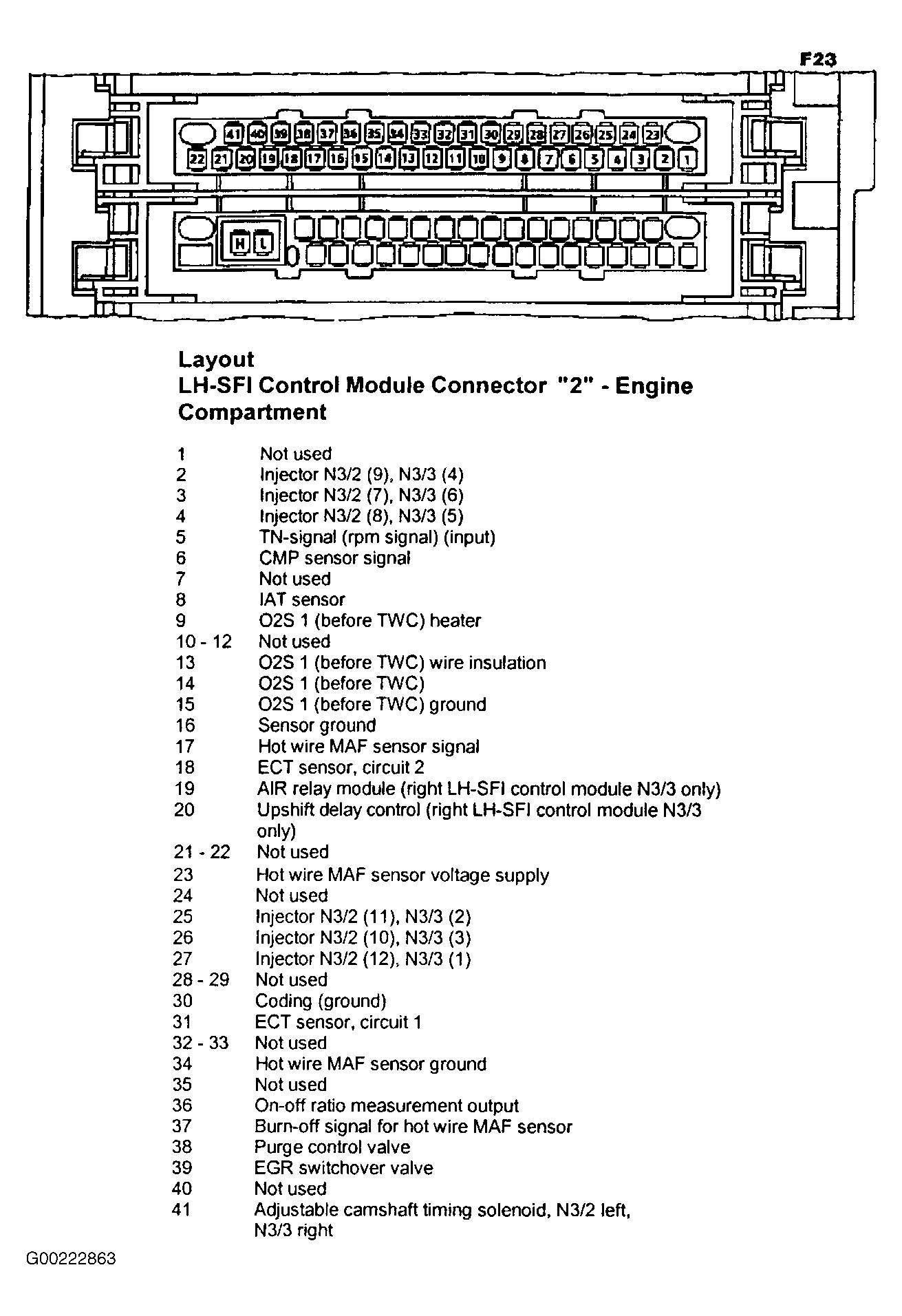

Fig 2: LH-SFI Control Module Connector (2 Engine Compartment) Pin Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
