Retrieving Codes

NOTE: For diagnostic equipment connections, see FAULT CODE DIAGNOSIS EQUIPMENT CONNECTION .

Using Hand Held Tester (HHT)

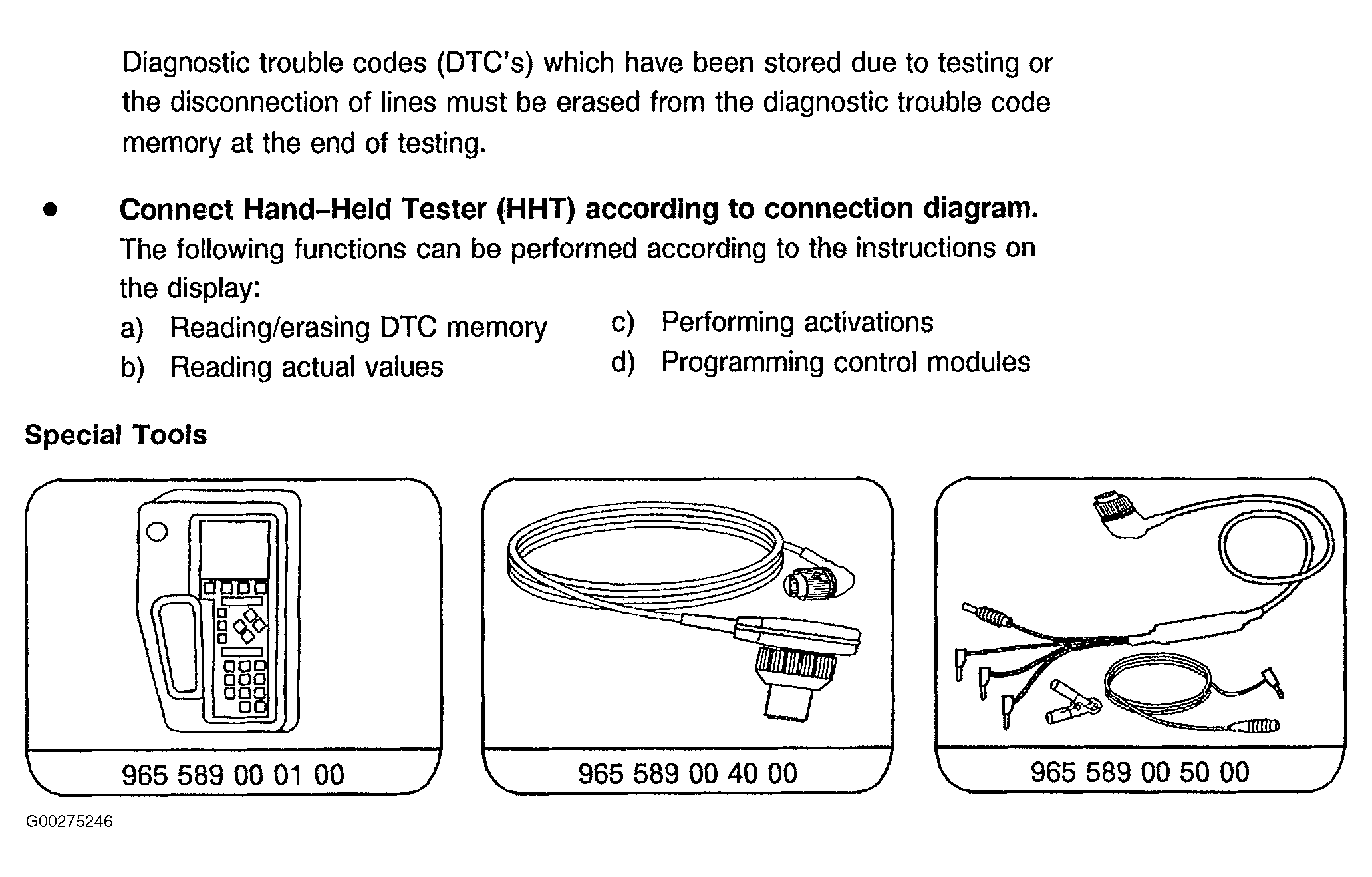

Fig 1: Retrieving Codes Using Hand Held Tester (HHT)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Using Impulse Counter Scan Tool

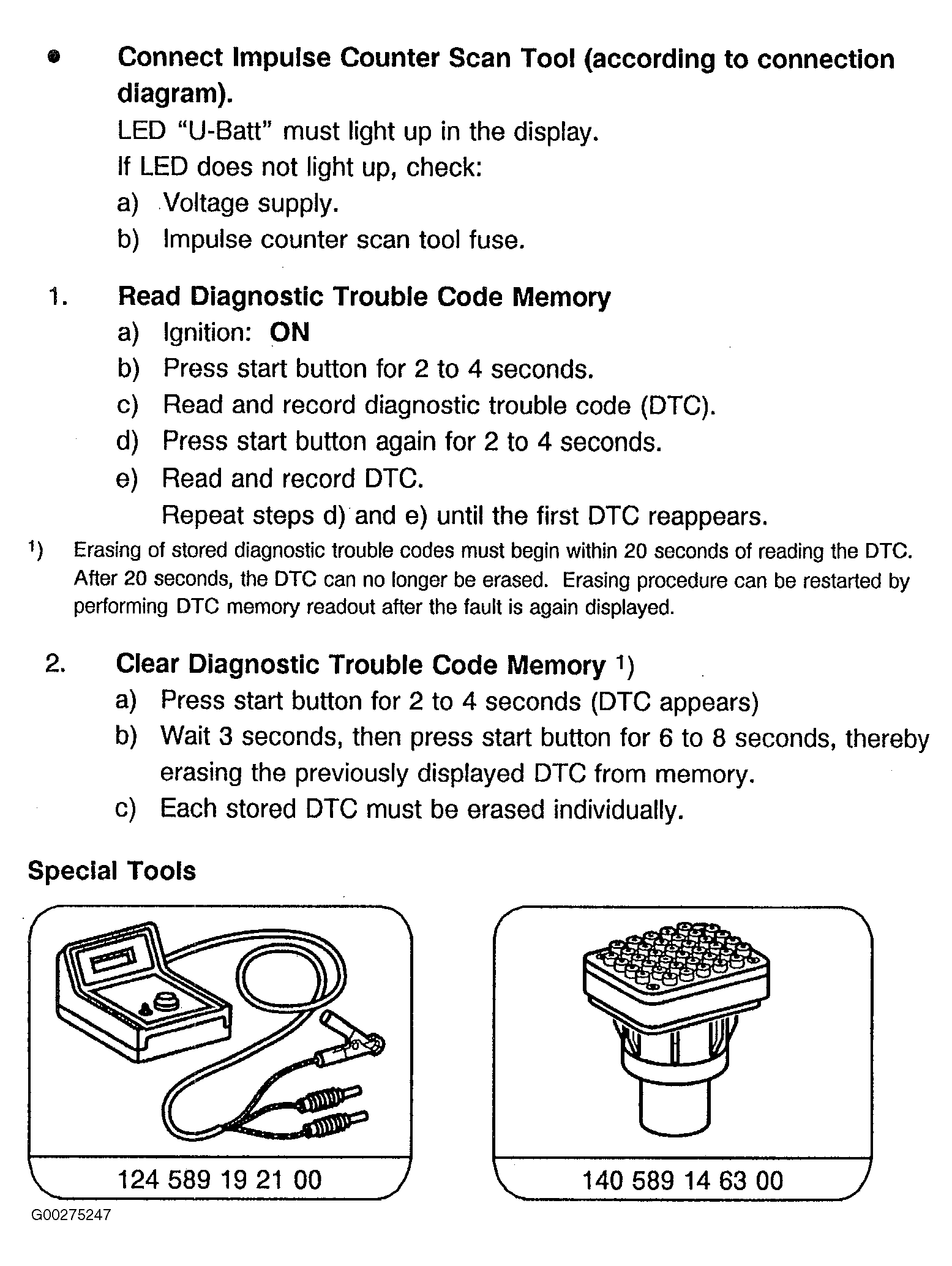

Fig 2: Retrieving Codes Using Impulse Counter Scan Tool

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
