Engine Controls - Tests W/Codes - Base Module
›
Connector Identification
Connector Identification

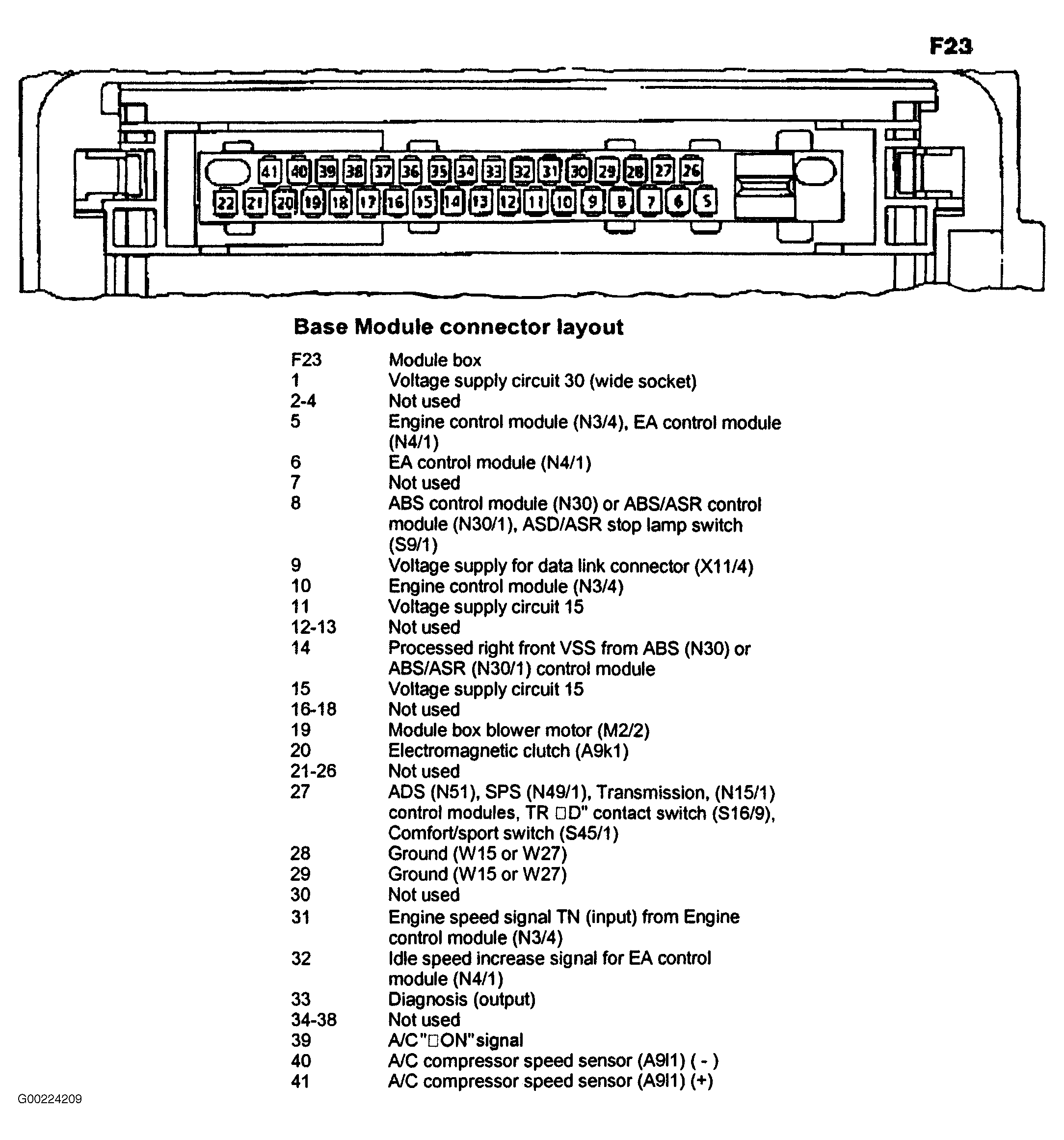

Fig 1: Base Module Connector Pin Identification
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
