Using Hand Held Tester

Connect Hand Held Tester to Data Link Connector (X11/4) according to connection diagram. See Fig 1 and/or Figure . The following functions can be performed according to the instructions on the hand held tester display:

• Retrieving/Erasing DTC Memory
• Reading Actual Values
• Performing Activations
• Programming Control Modules

Fig 1: Scan Tool Connection Diagrams

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

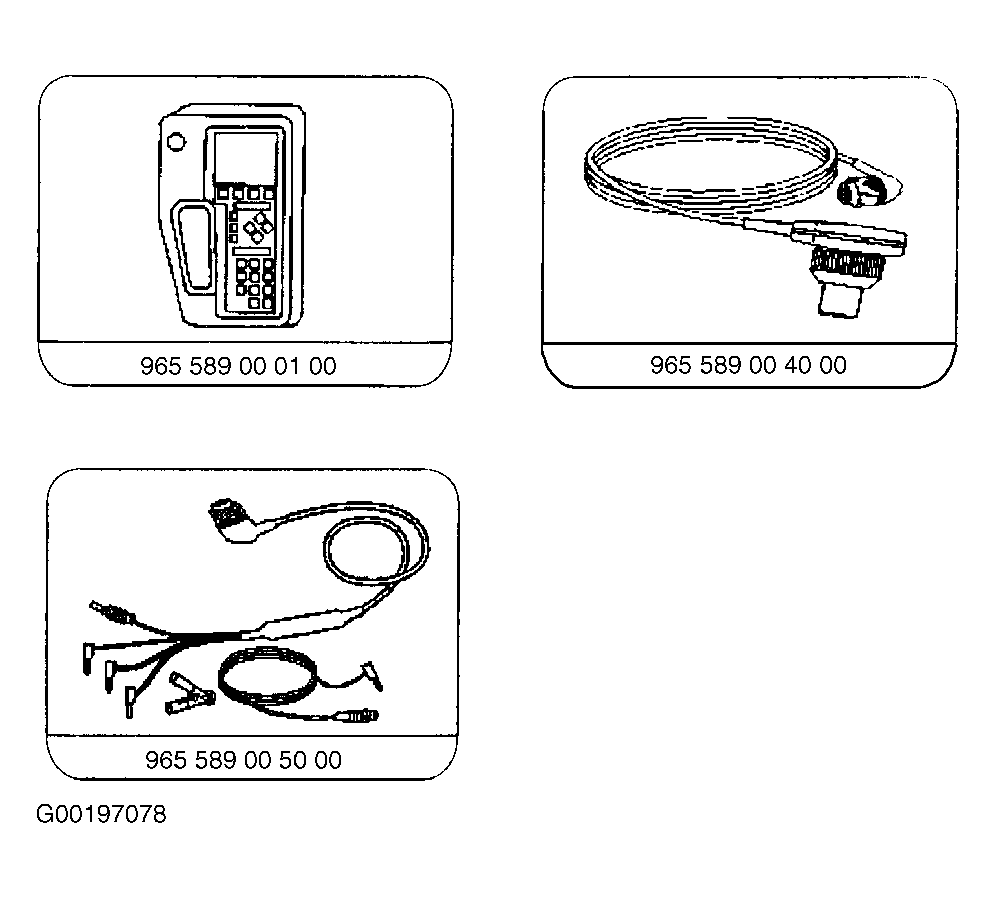

Fig 2: Identifying Hand Held Tester Special Tools

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
