Electrical System Tests - Section 23 (Step 13.0)
Electrical System Tests - Section 23 (Step 13.0)

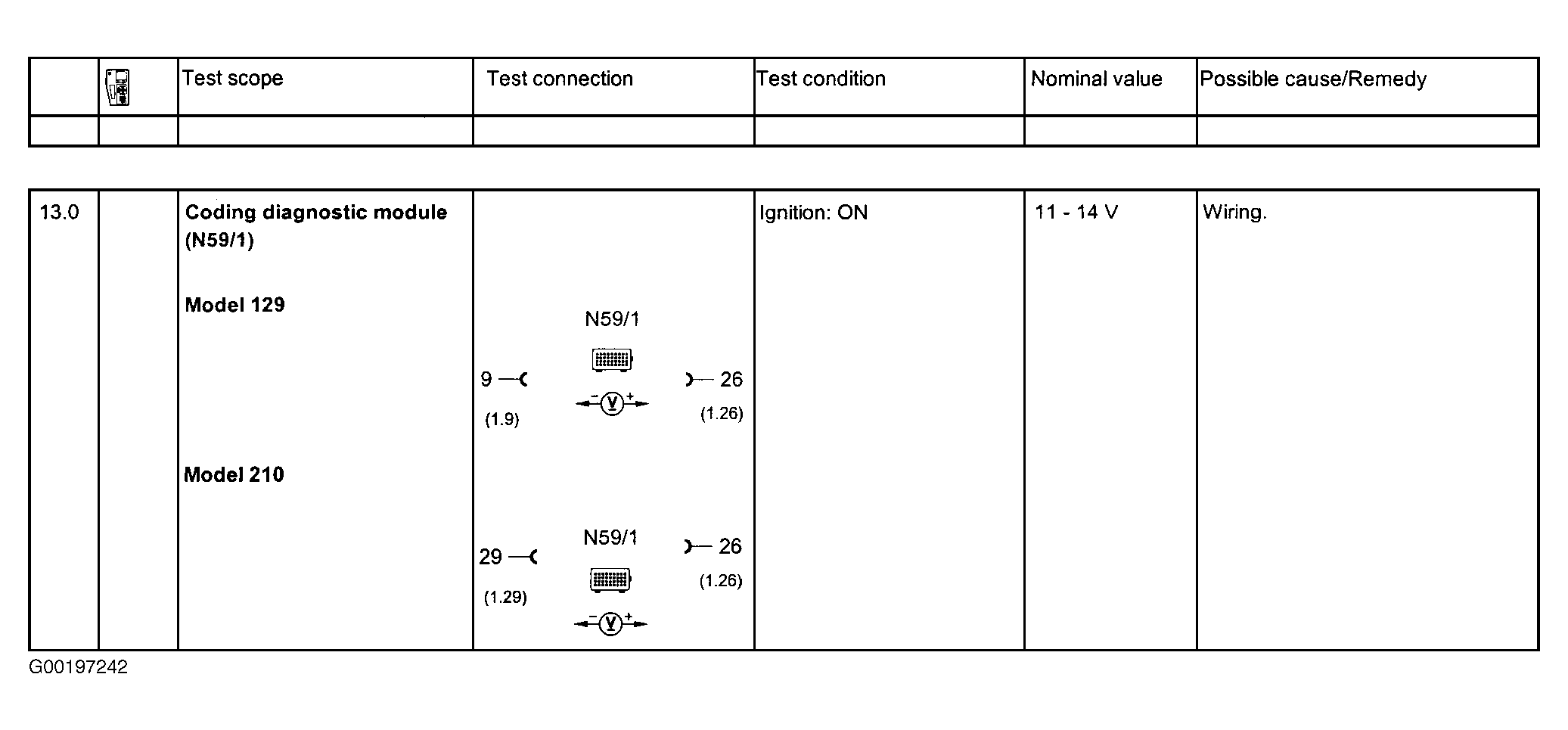

Fig 1: Electrical System Tests - Section 23 (Step 13.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
