Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes - Diagnostic Module
›
System Tests
›
Electrical System Tests Illustrations (Section 23)
Electrical System Tests Illustrations (Section 23)

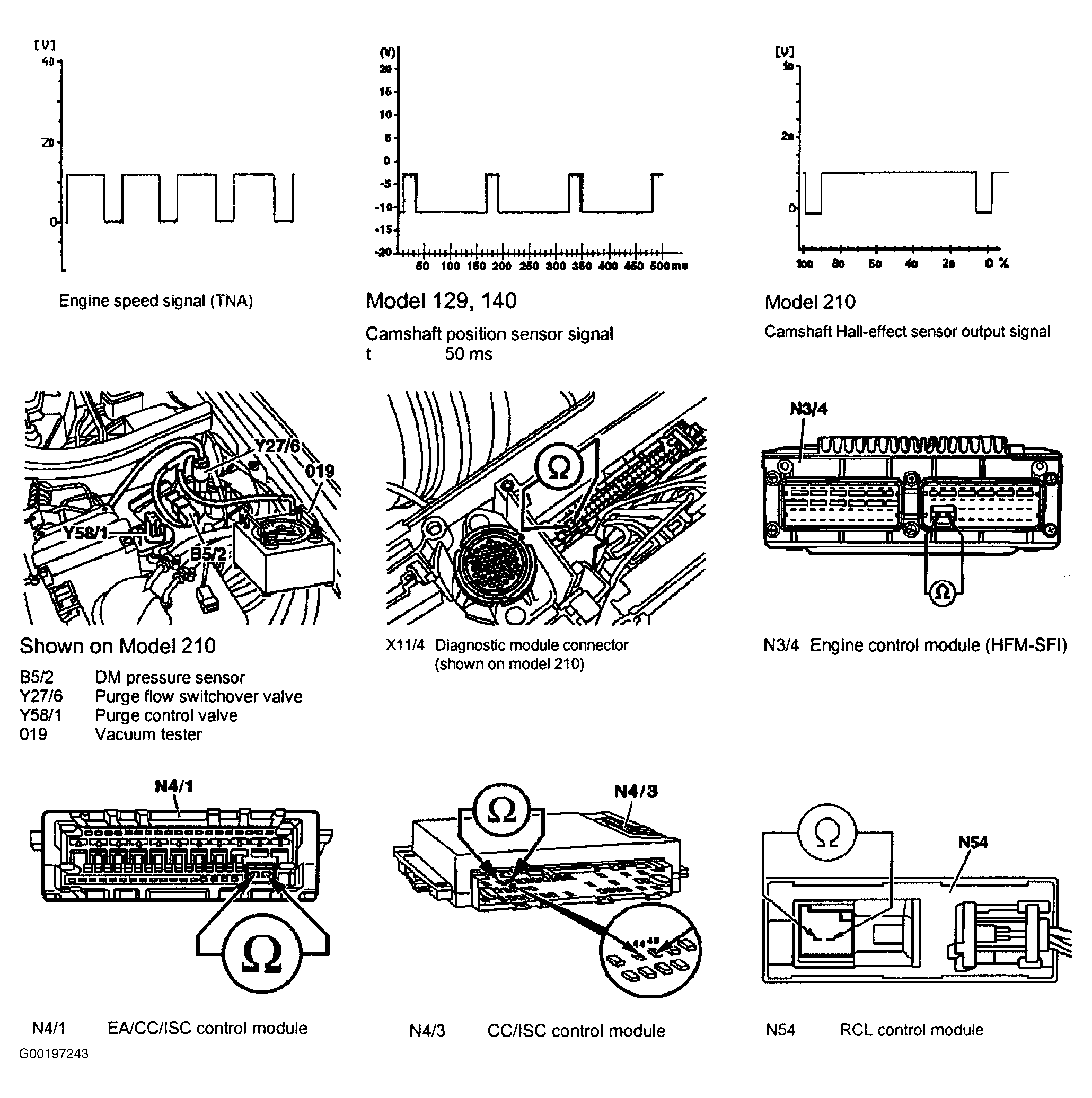

Fig 1: Electrical System Tests Illustrations (Section 23)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
