Engine Controls - Tests W/Codes - Electronic Accelerator Controls
›
System Tests
›
Cruise Control System Tests (Section 24)
›
Cruise Control System Tests 1.0
Cruise Control System Tests 1.0

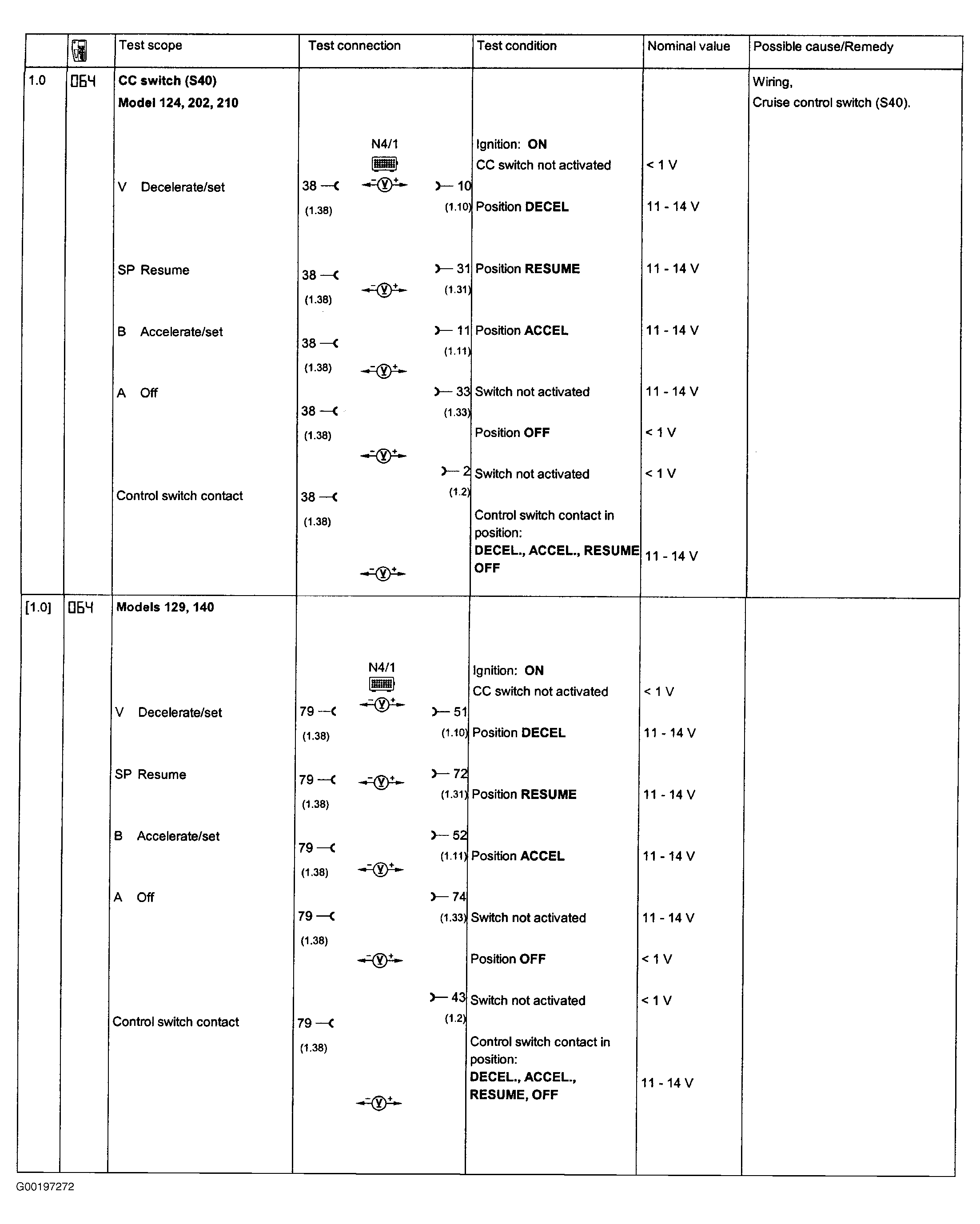

Fig 1: Cruise Control System Tests (Step 1.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
