Ignition System Tests (Section 24)
›
Ignition System Tests 14.0-15.1
Ignition System Tests 14.0-15.1

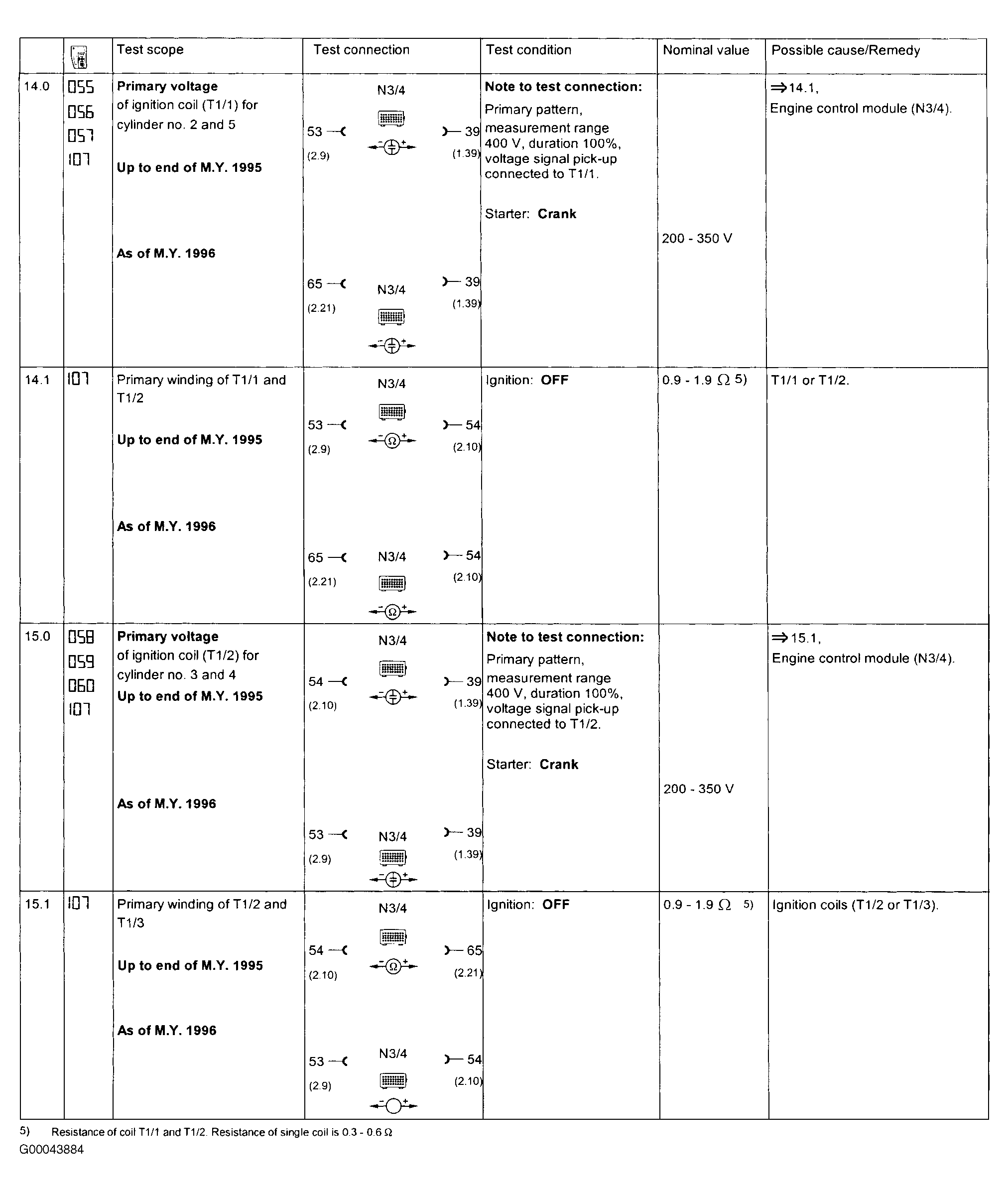

Fig 1: Ignition System Tests (Steps 14.0-15.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
