Electronic Accelerator Test (Steps 6.1-8.0)
Electronic Accelerator Test (Steps 6.1-8.0)

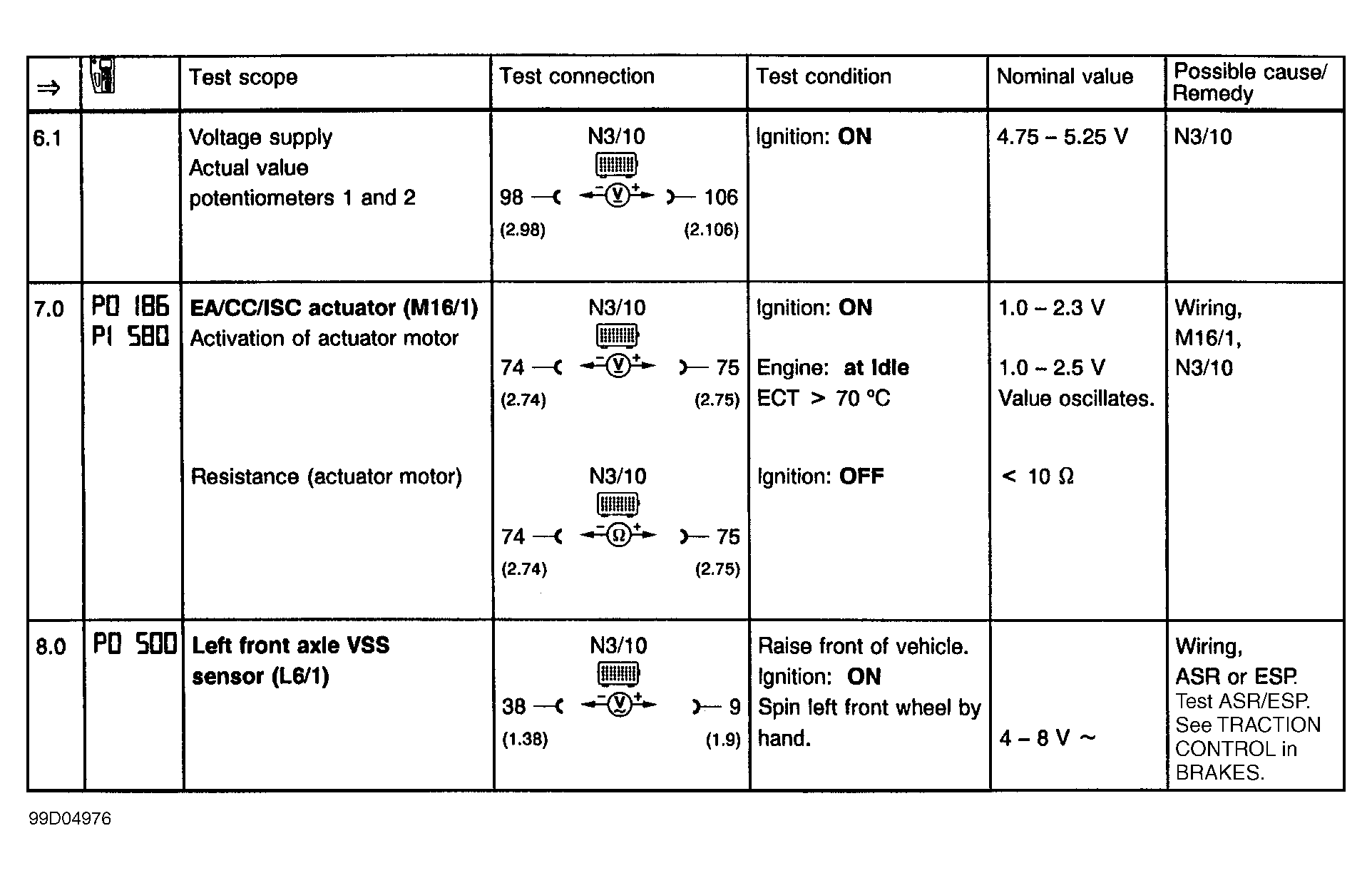

Fig 1: Electronic Accelerator Test (Steps 6.1-8.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
