Electronic Accelerator Test (Steps 9.0-11.0)

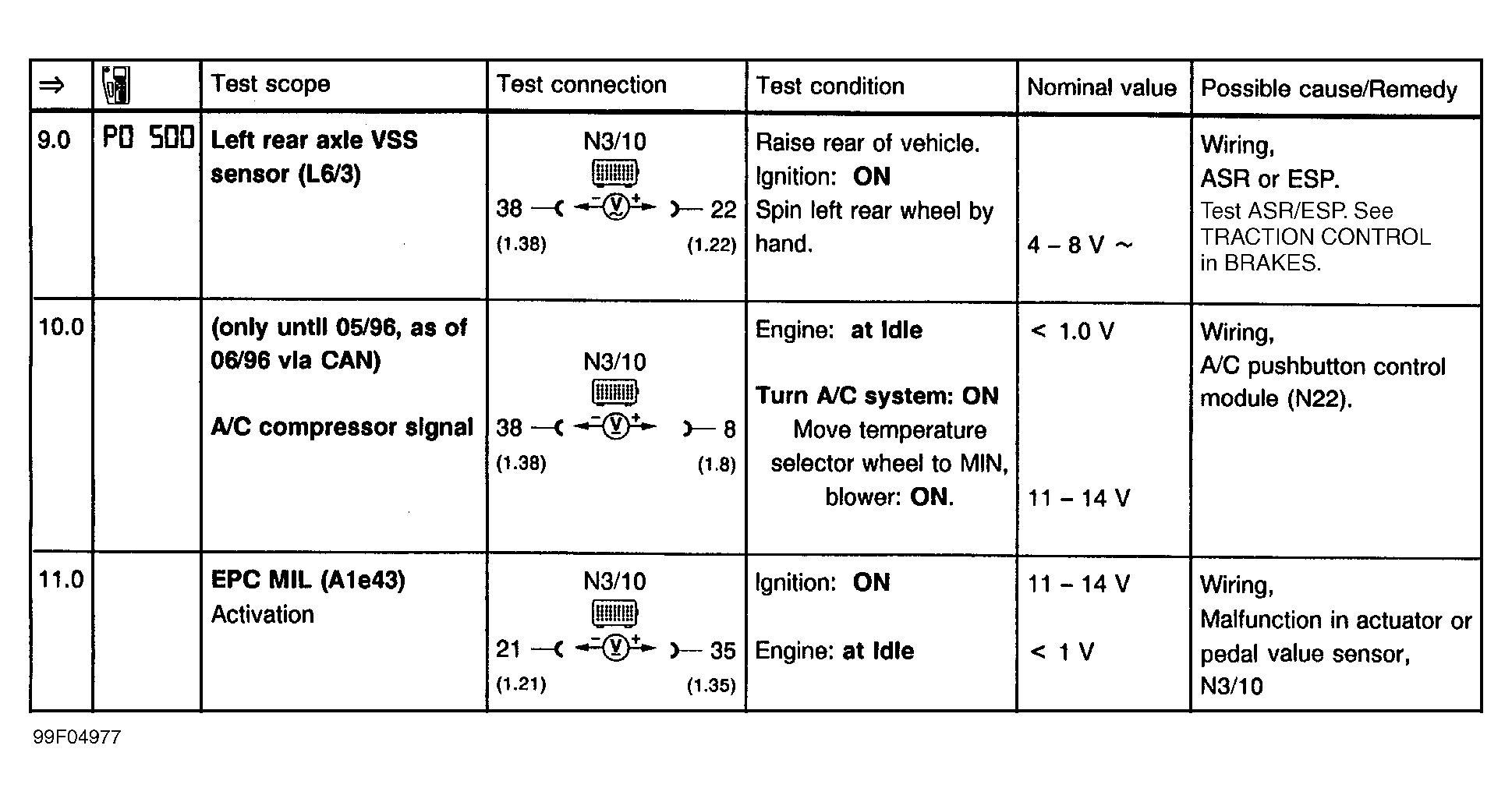

Fig 1: Electronic Accelerator Test (Steps 9.0-11.0)
G99F04977Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
