Fuse Block Location: Notes

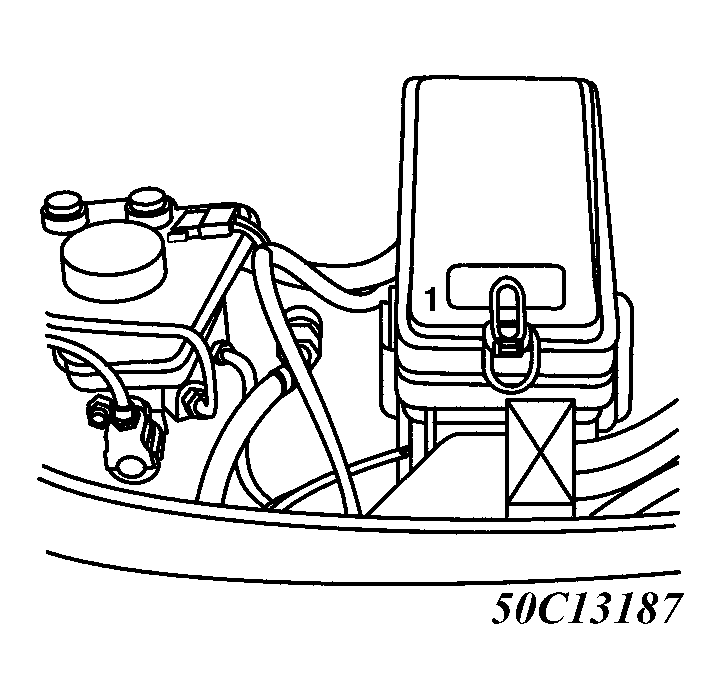

Fig 1: Engine Compartment Main Fuse Block Location
G50C13187Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

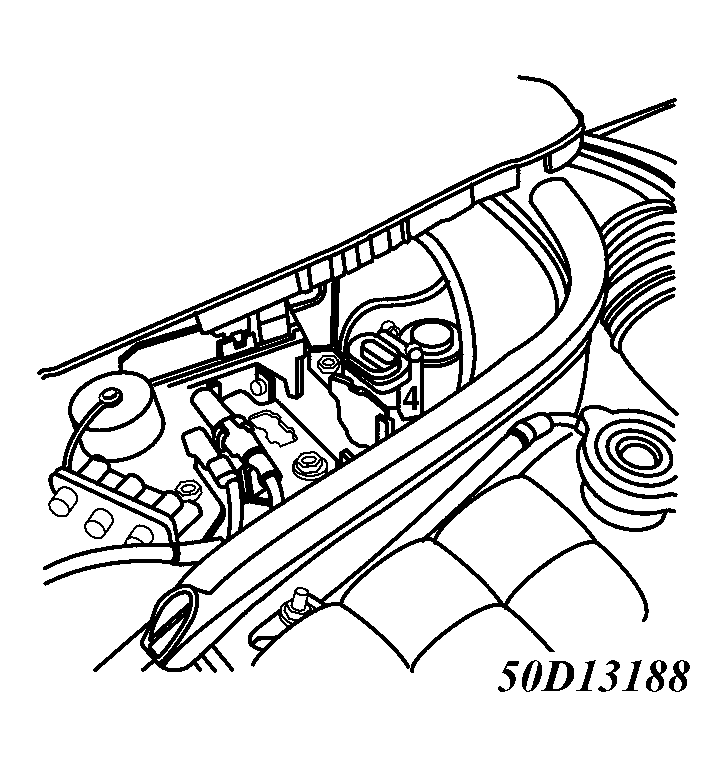

Fig 2: Engine Compartment Auxiliary Fuse Block Location
G50D13188Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Trunk Compartment Fuse Blocks Locations
G50E13189Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
