Ignition System Test (Steps 1.2 & 2.0)
Ignition System Test (Steps 1.2 & 2.0)

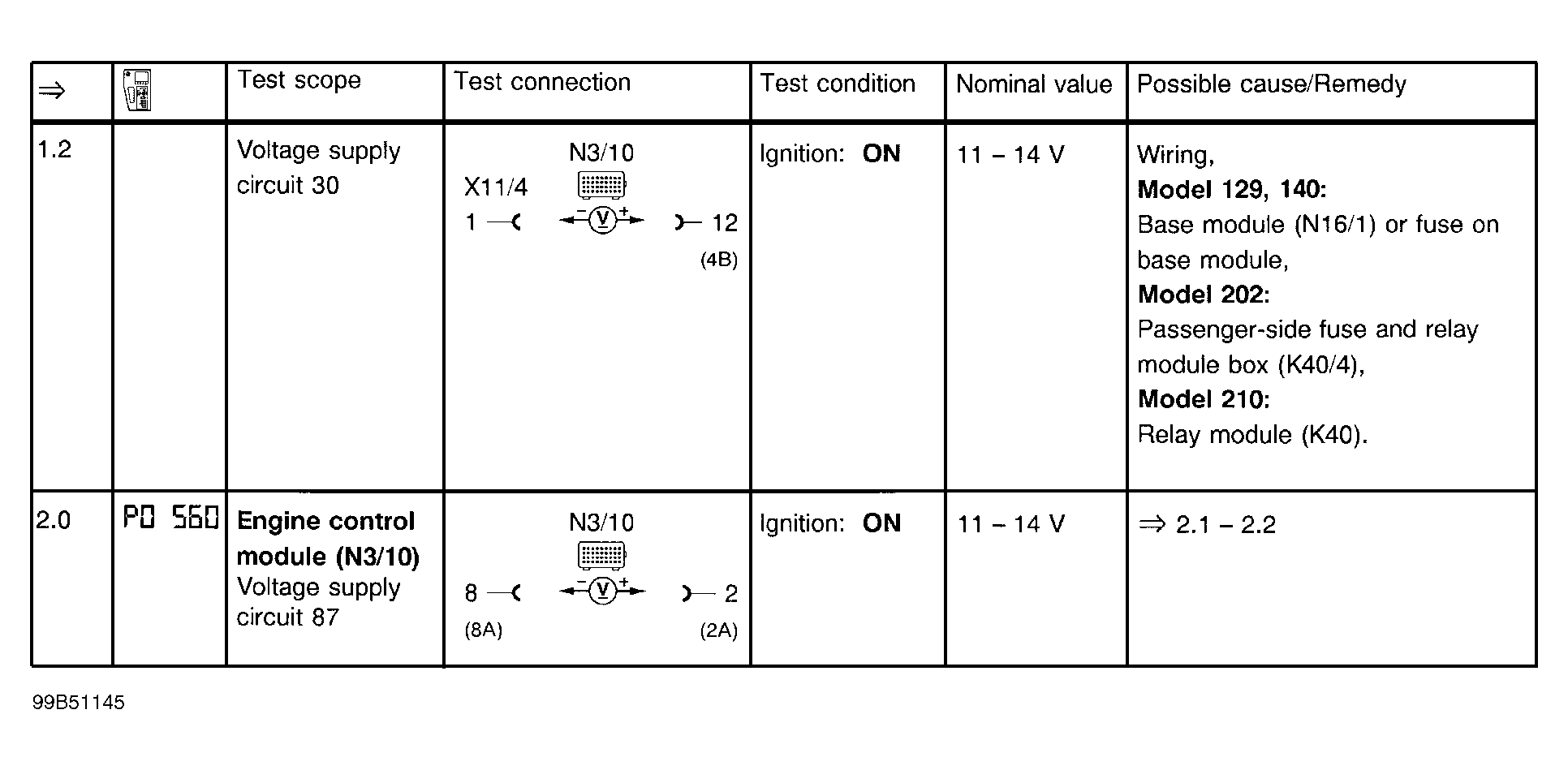

Fig 1: Ignition System Test (Steps 1.2 & 2.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
