Ignition System Test (Steps 2.1 & 2.2)
Ignition System Test (Steps 2.1 & 2.2)

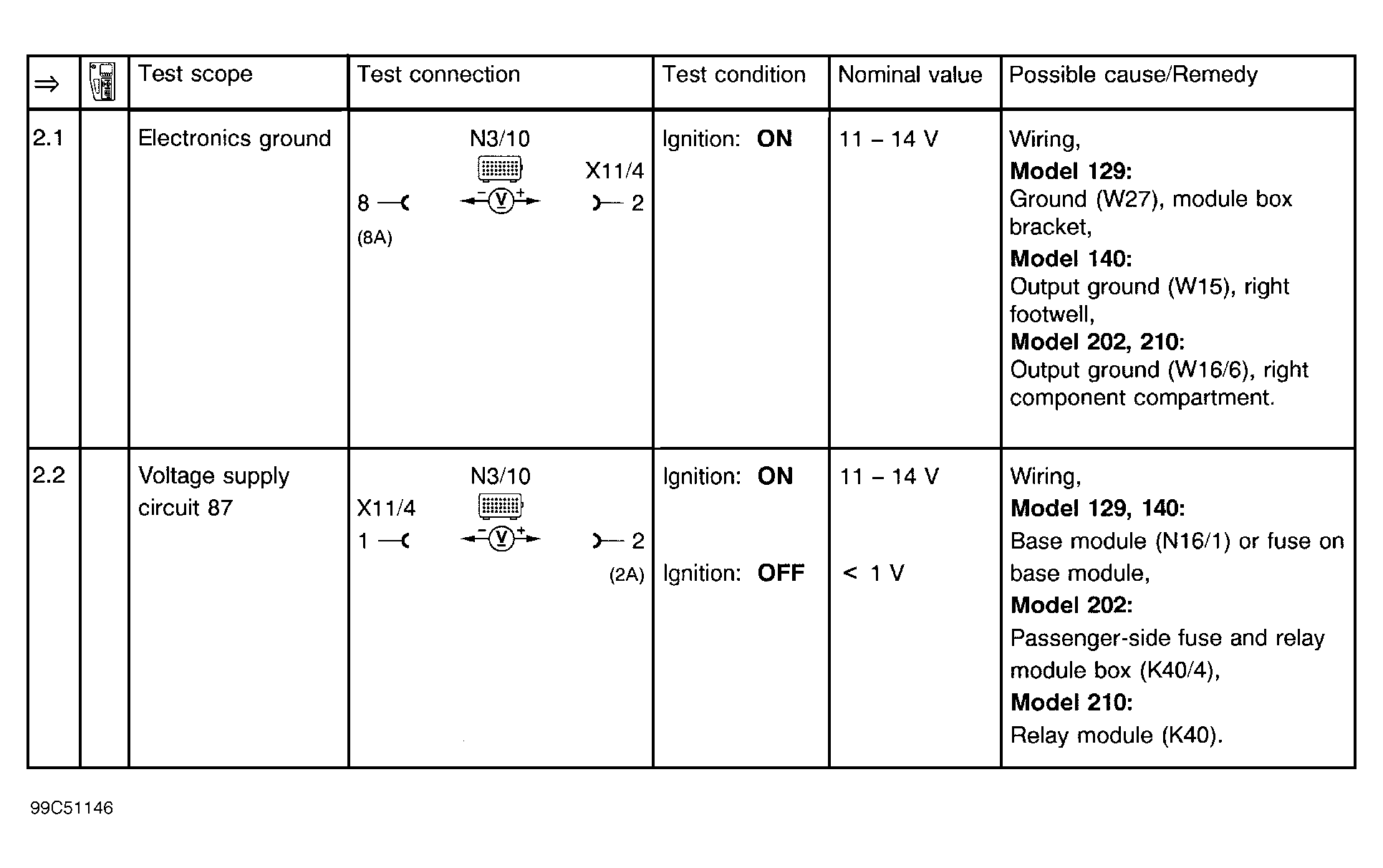

Fig 1: Ignition System Test (Steps 2.1 & 2.2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
