Engine Controls - Self-Diagnostics With Codes
›
Diagnostic Trouble Code Identification
›
Cruise Control Tests
›
Cruise Control Test (Step 1.0)
Cruise Control Test (Step 1.0)

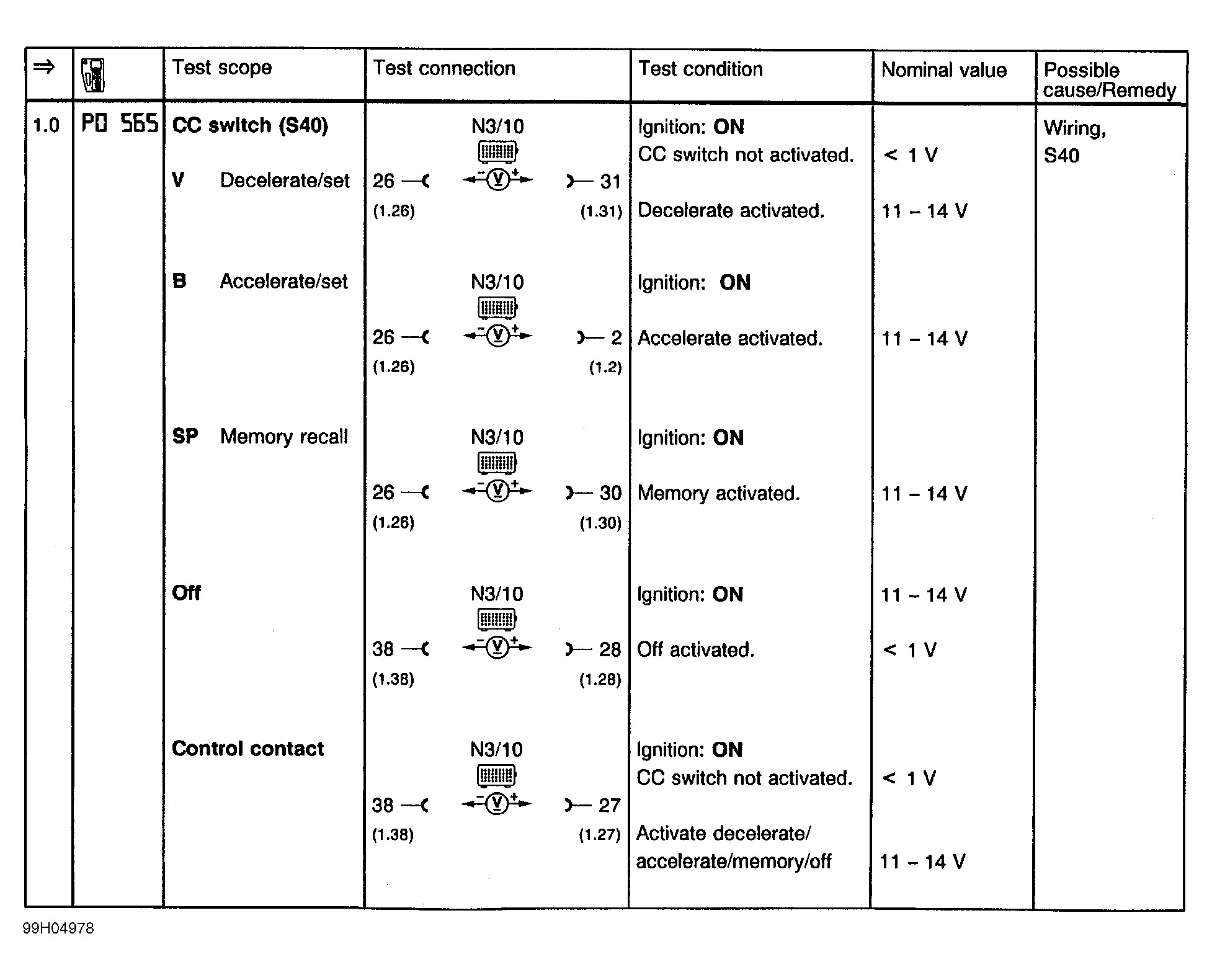

Fig 1: Cruise Control Test (Step 1.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
