Fuel Injection System Test (Steps 13.1-14.0)

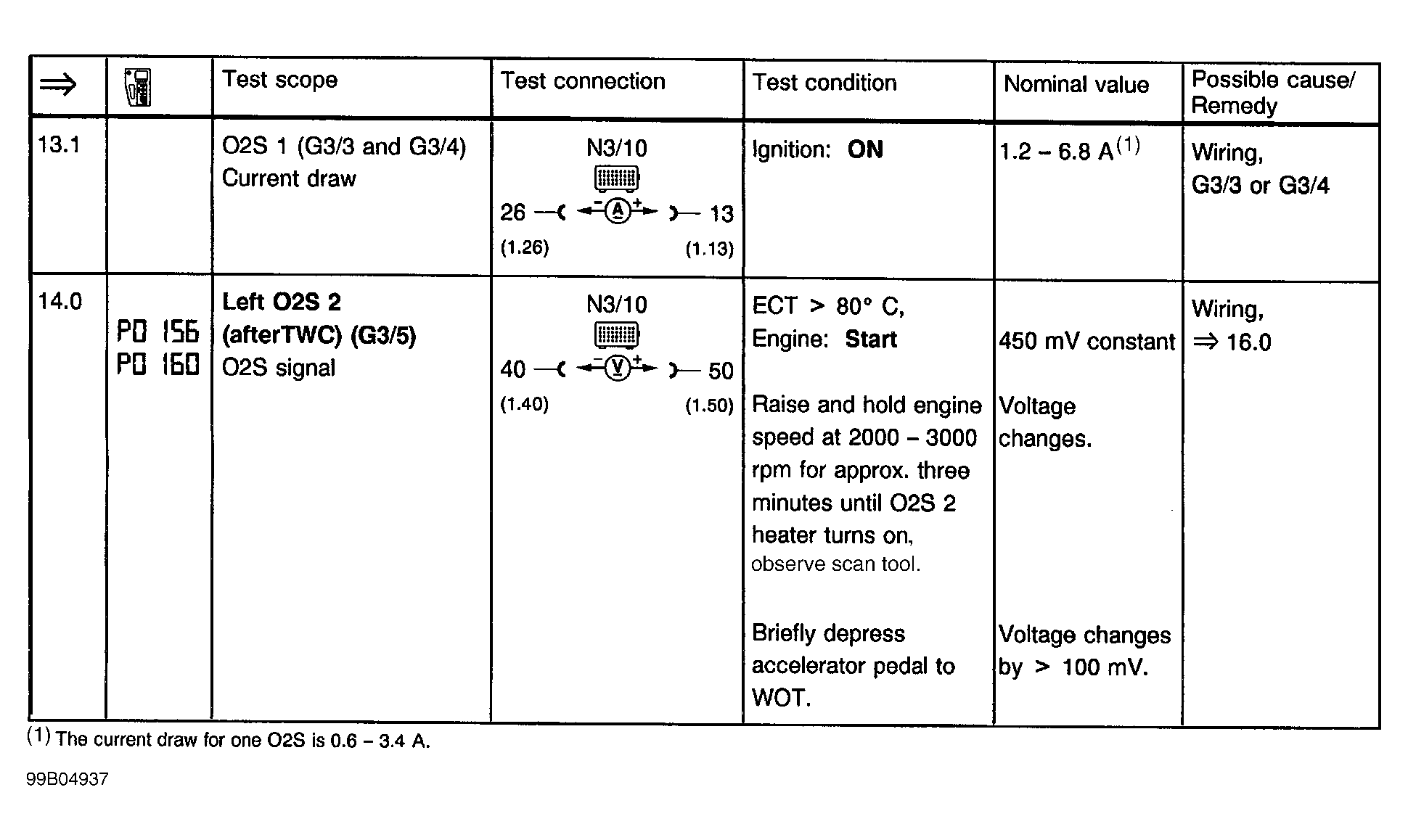

Fig 1: Fuel Injection System Test (Steps 13.1-14.0)
G99B04937Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
