Fuel Injection System Test (Steps 18.1-19.1)

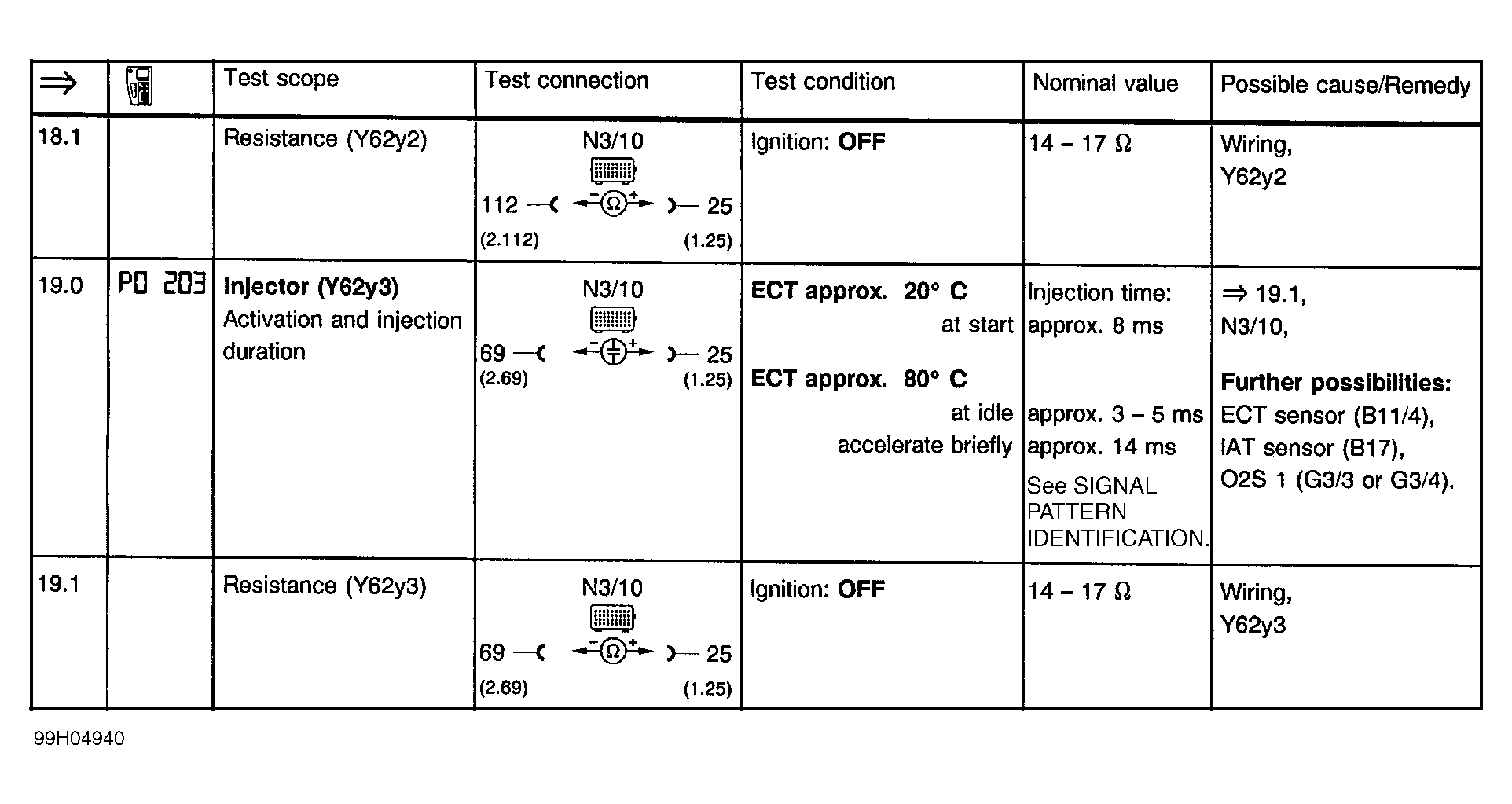

Fig 1: Fuel Injection System Test (Steps 18.1-19.1)
G99H04940Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
