Fuel Injection System Test (Steps 20.0-20.1)

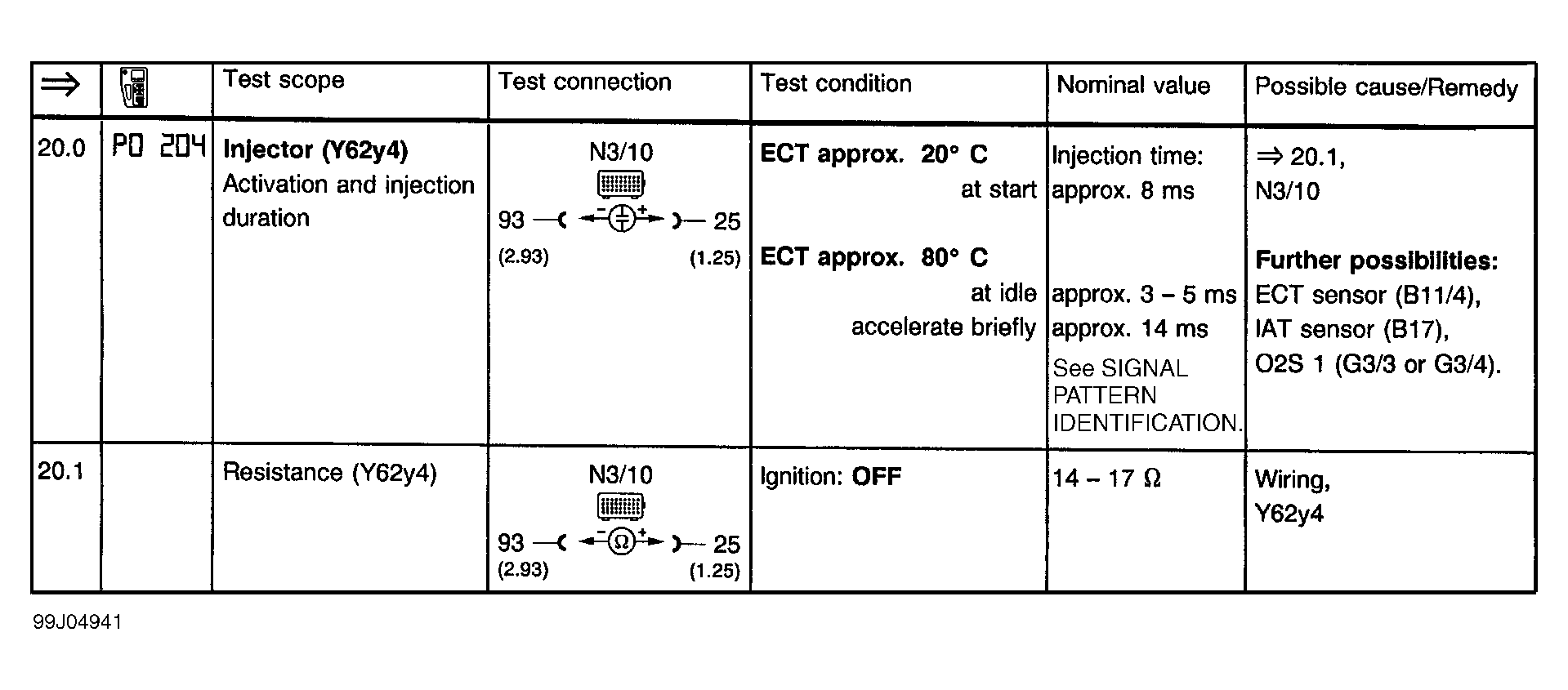

Fig 1: Fuel Injection System Test (Steps 20.0-20.1)
G99J04941Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
