Fuel Injection System Test (Steps 45.0-47.0)
Fuel Injection System Test (Steps 45.0-47.0)

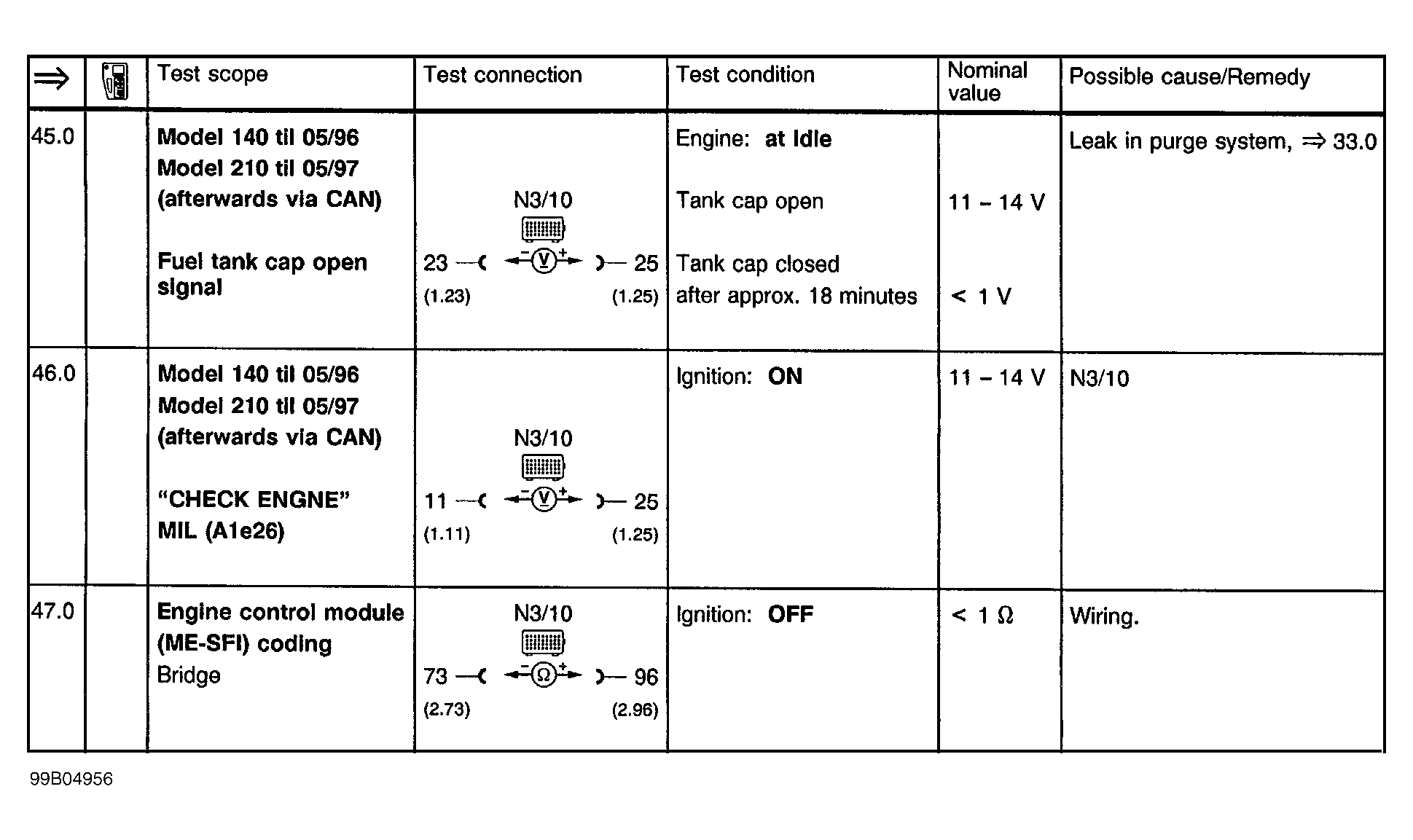

Fig 1: Fuel Injection System Test (Steps 45.0-47.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
