Fuse Block Identification: Notes

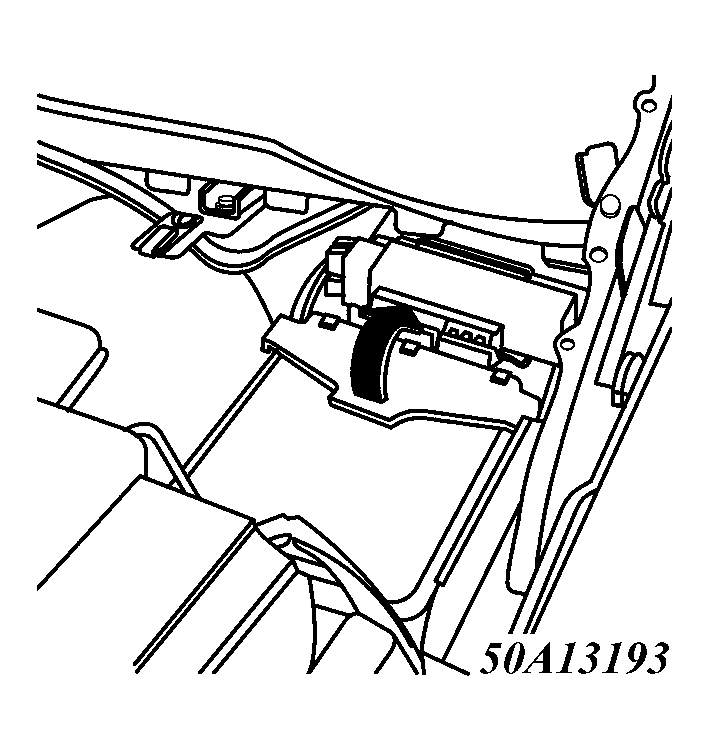

Fig 1: Engine Compartment Main Fuse Block Location (S Models)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

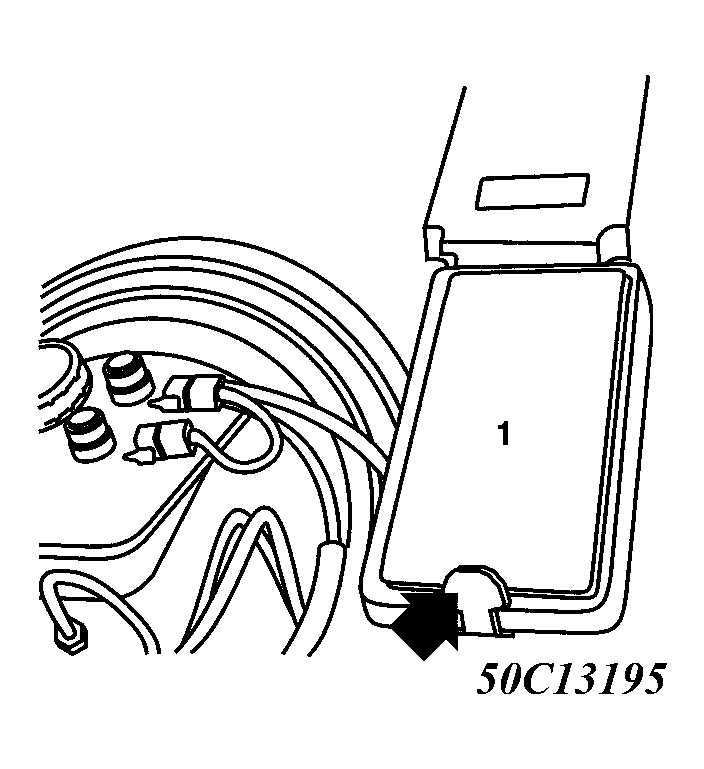

Fig 2: Trunk Compartment Auxiliary Fuse Block Location (S Models)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Engine Compartment Main Fuse Block Location (SL Models)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

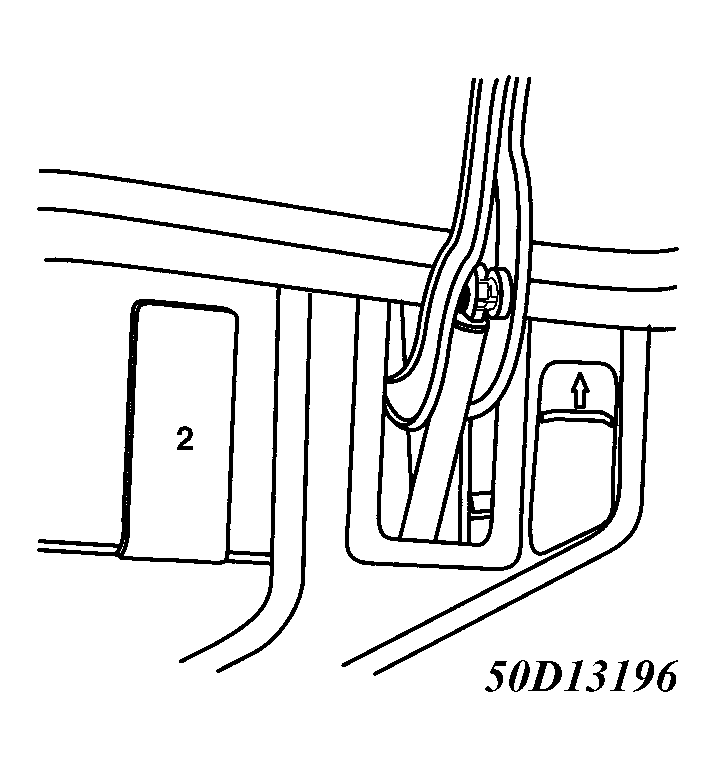

Fig 4: Trunk Compartment Auxiliary Fuse Block Location (SL Models)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
