Fuel Injection System Test (Steps 1.2-2.1)

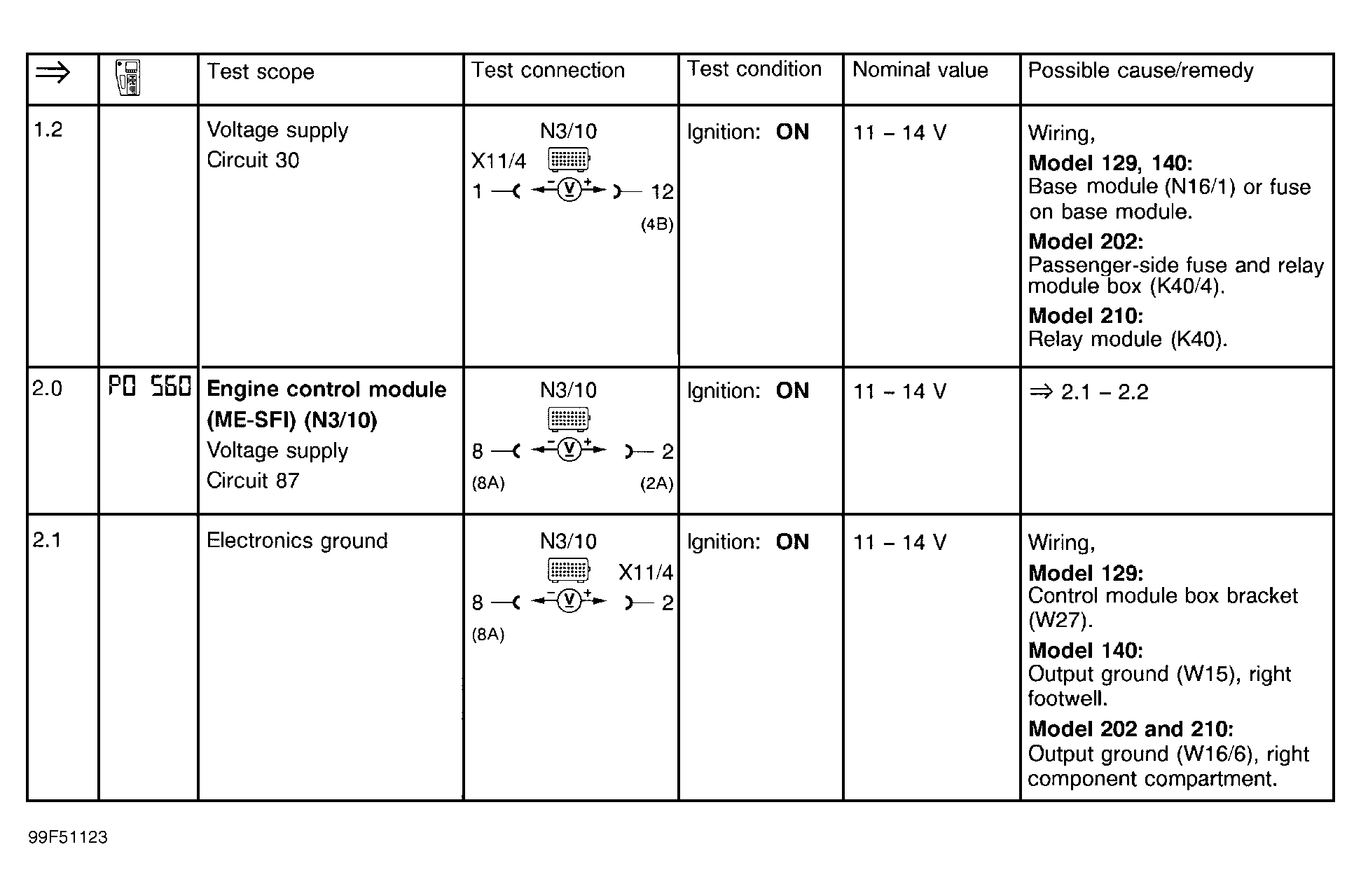

Fig 1: Fuel Injection System Test (Steps 1.2-2.1)
G99F51123Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
