Fuel Injection System Test (Steps 31.0 & 31.1)

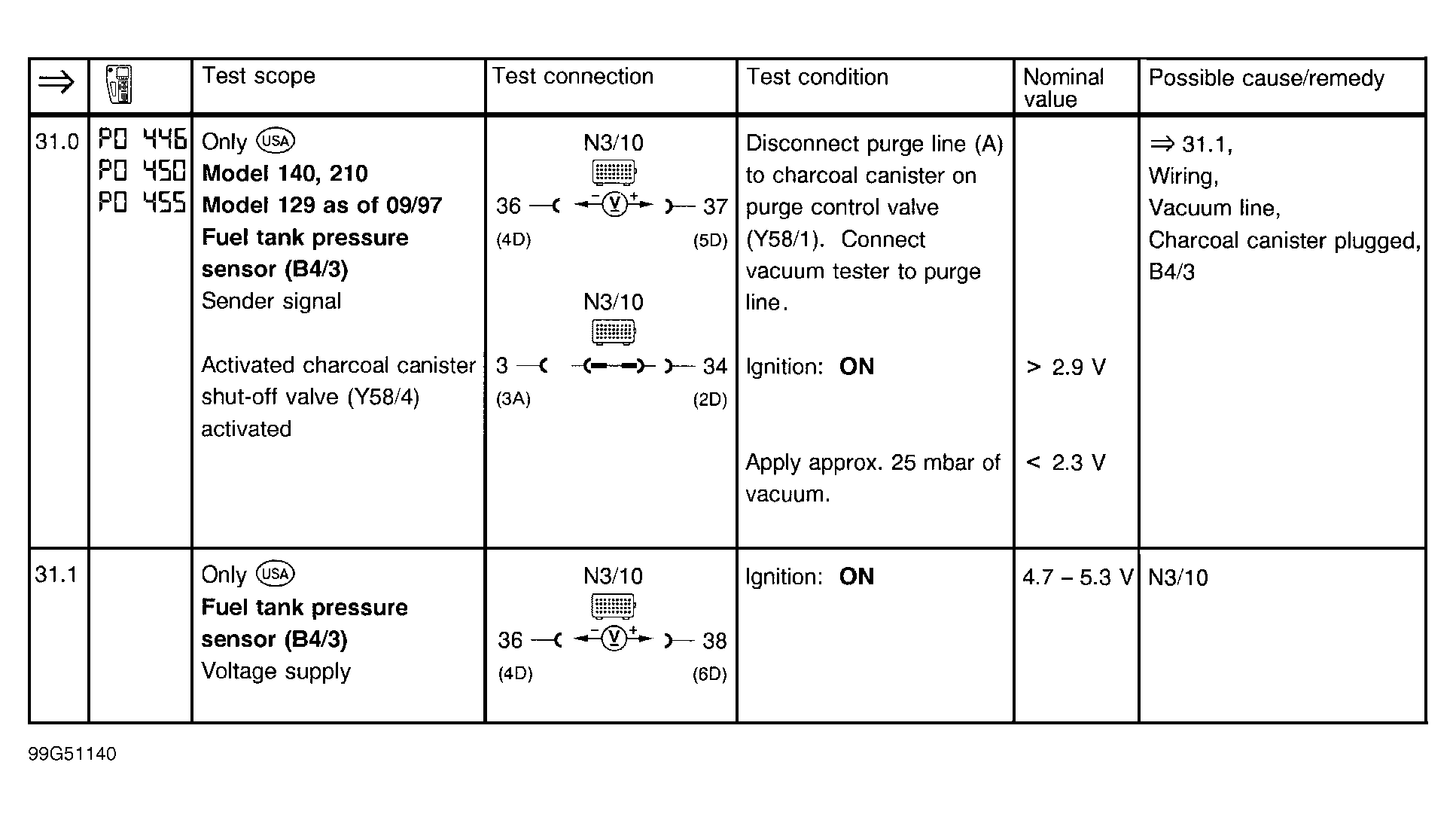

Fig 1: Fuel Injection System Test (Steps 31.0 & 31.1)
G99G51140Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
