Fuel Injection System Test (Steps 32.0 & 32.1)

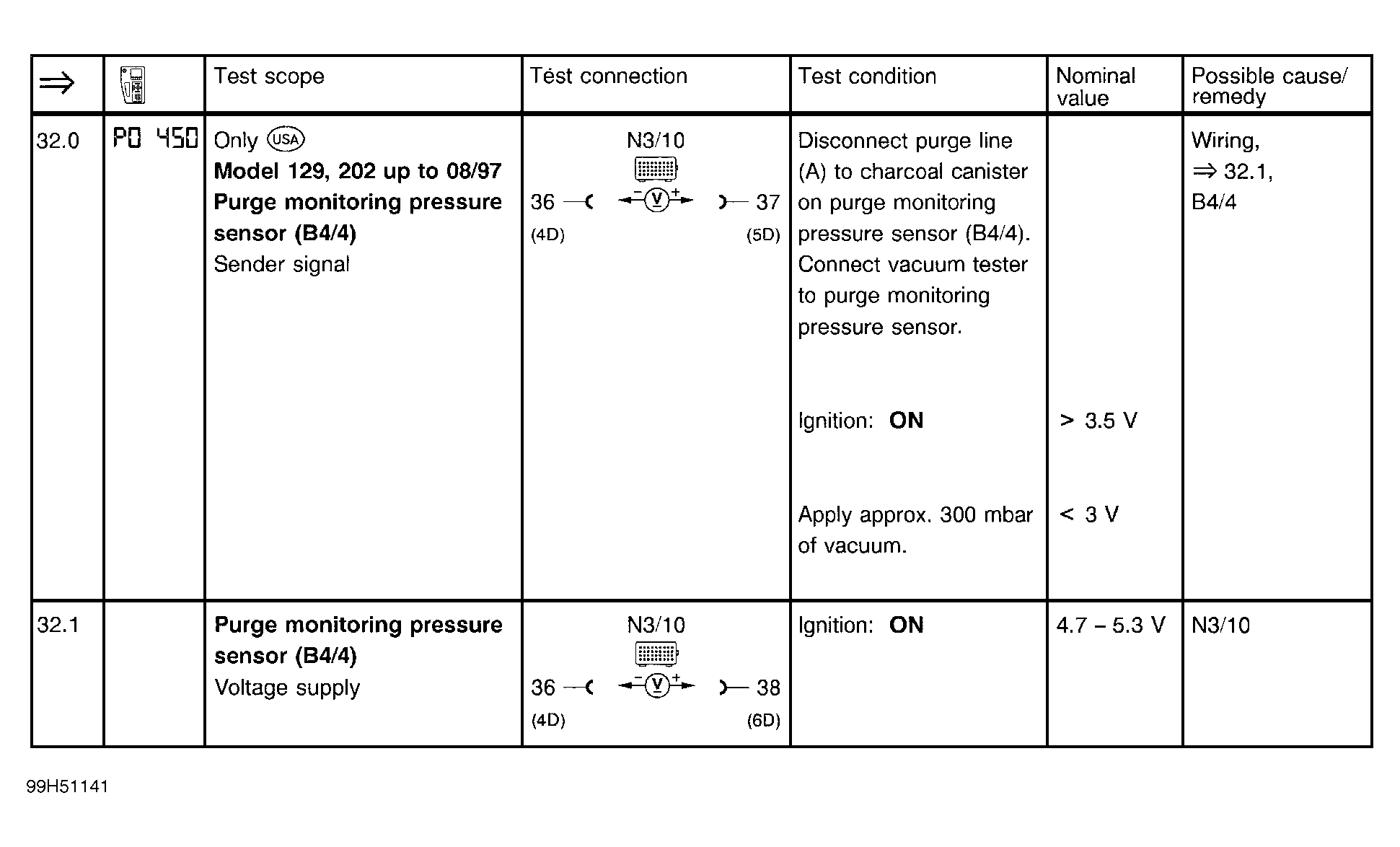

Fig 1: Fuel Injection System Test (Steps 32.0 & 32.1)
G99H51141Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
