Fuel Injection System Test (Steps 4.1-5.2)

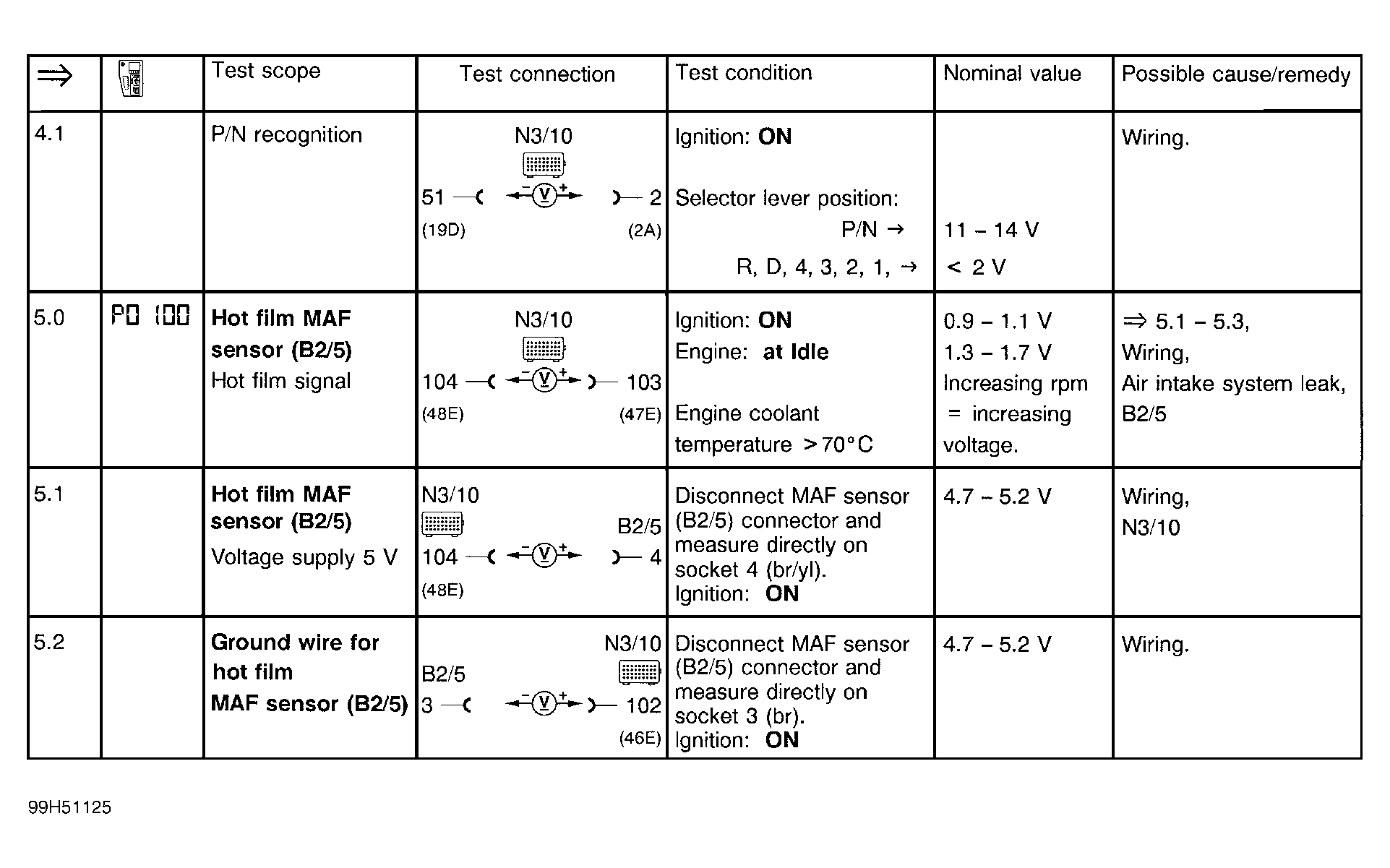

Fig 1: Fuel Injection System Test (Steps 4.1-5.2)
G99H51125Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
