Fuel Injection System Test (Steps 6.1-7.1)

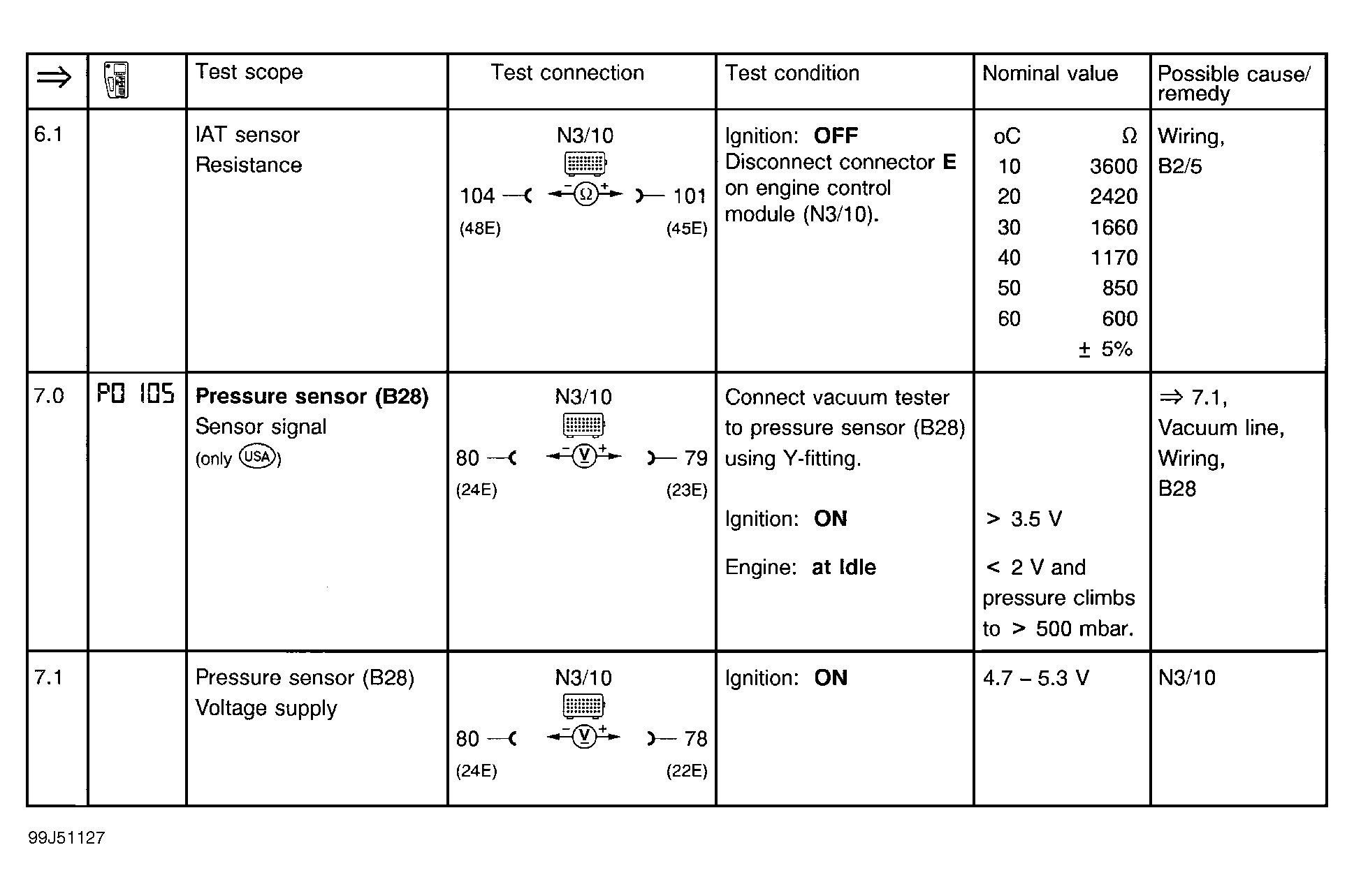

Fig 1: Fuel Injection System Test (Steps 6.1-7.1)
G99J51127Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
