Ignition System Test (Steps 3.0-5.0)
Ignition System Test (Steps 3.0-5.0)

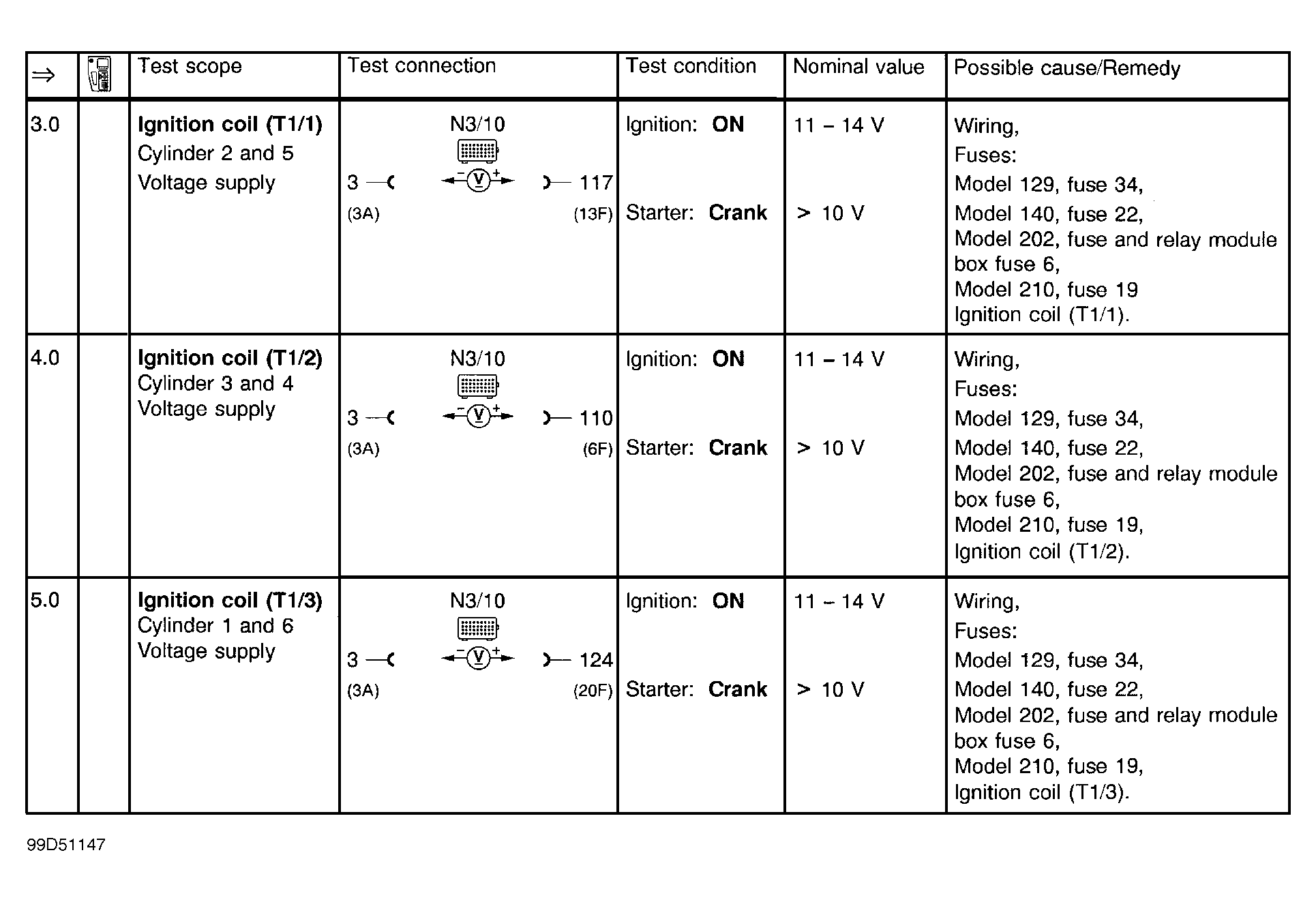

Fig 1: Ignition System Test (Steps 3.0-5.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
