Ignition System Test (Steps 7.0 & 7.1)
Ignition System Test (Steps 7.0 & 7.1)

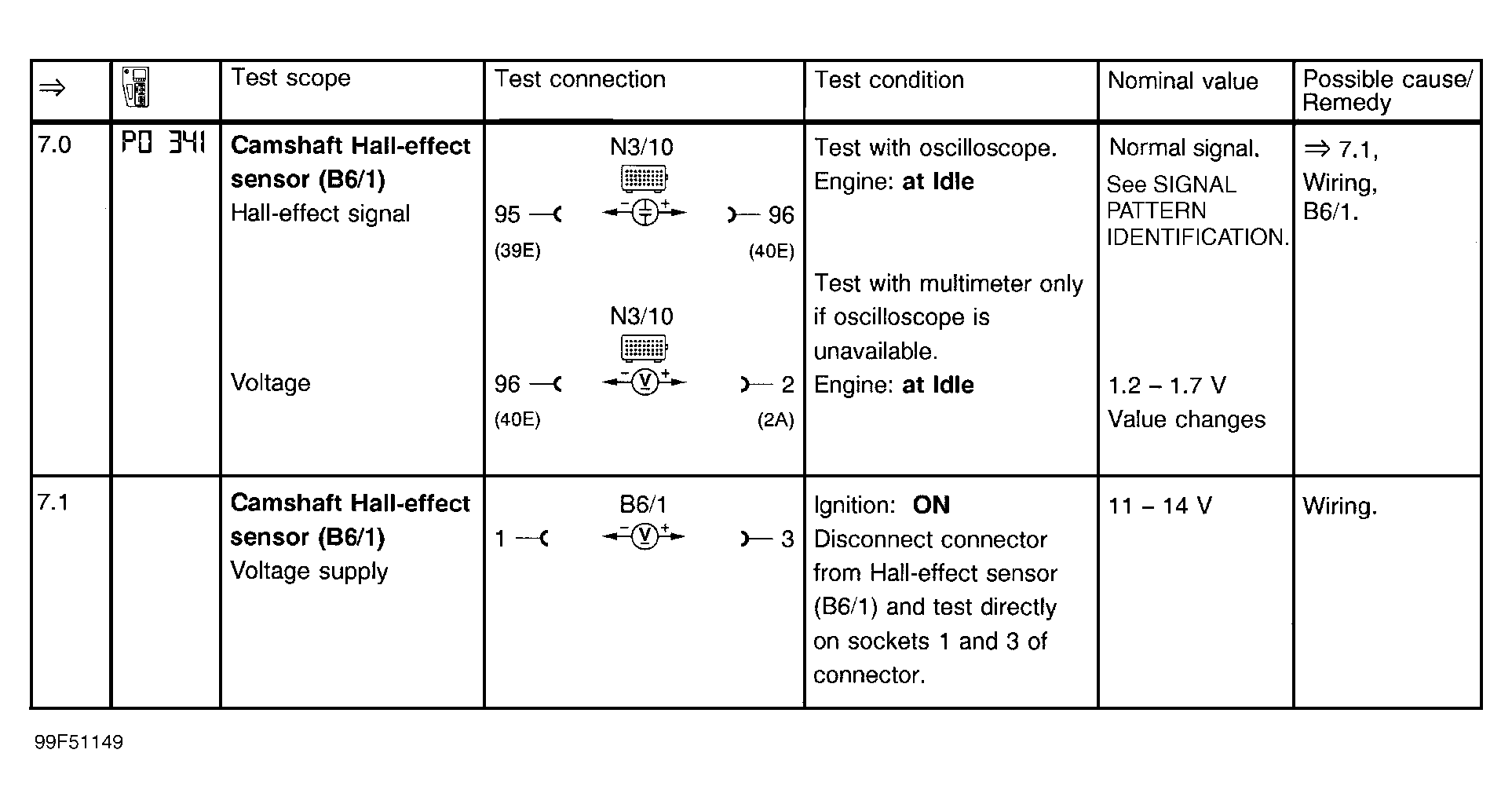

Fig 1: Ignition System Test (Steps 7.0 & 7.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
