Ignition System Test (Steps 9.1-10.1)

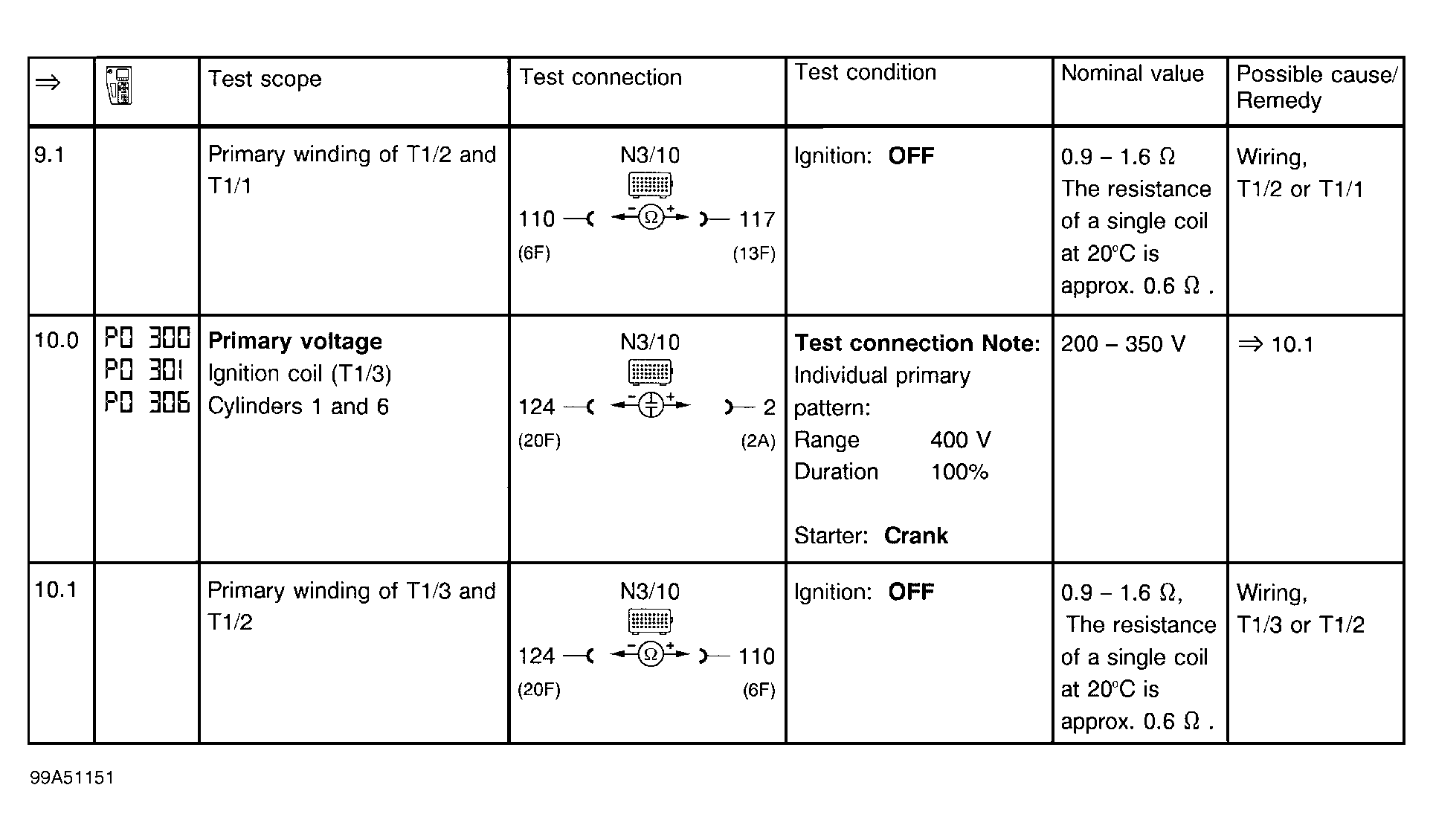

Fig 1: Ignition System Test (Steps 9.1-10.1)
G99A51151Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
