Cruise Control Test (Steps 2.0-4.0)
Cruise Control Test (Steps 2.0-4.0)

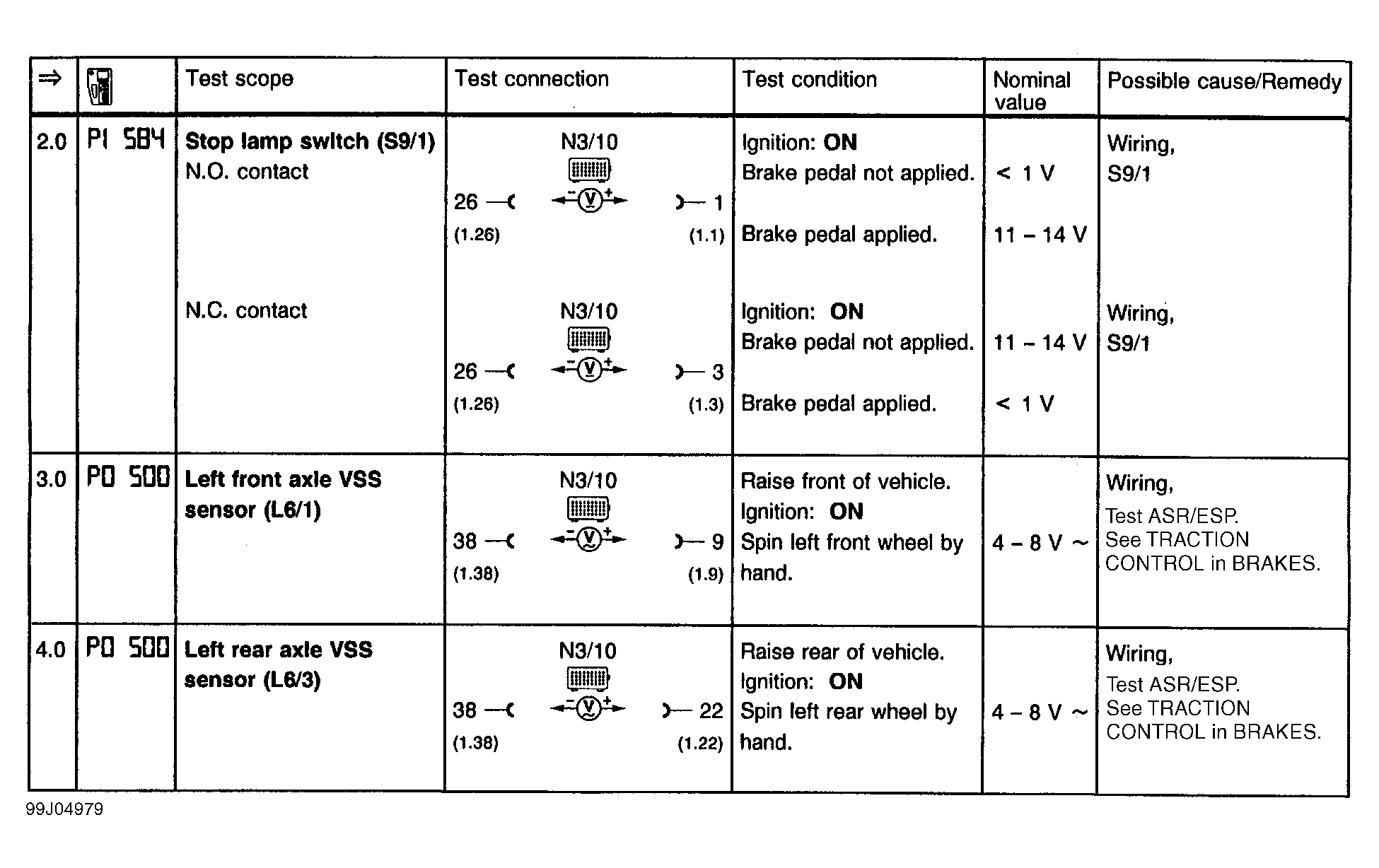

Fig 1: Cruise Control Test (Steps 2.0-4.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
