Electronic Accelerator Test (Steps 1.0-1.2)

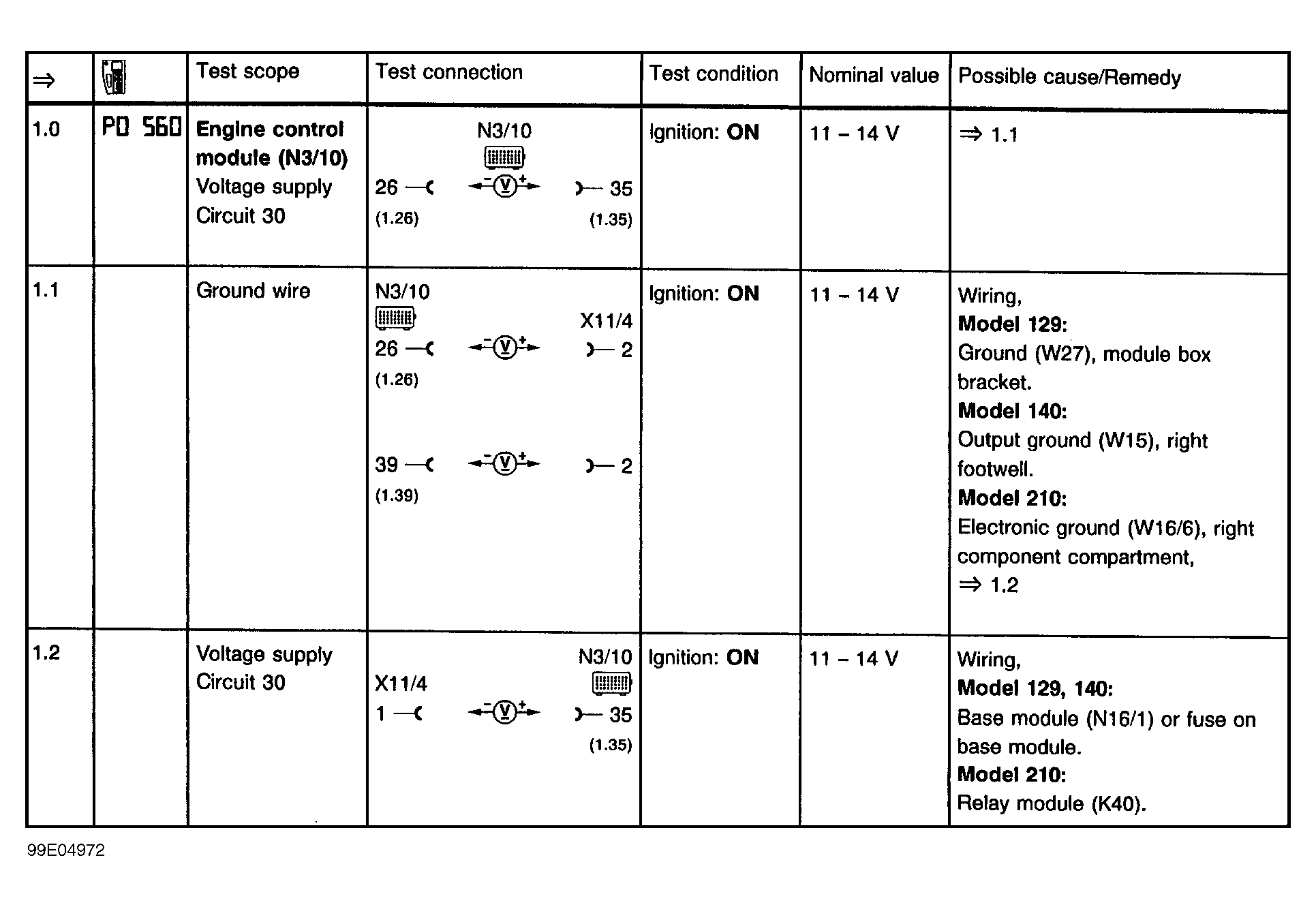

Fig 1: Electronic Accelerator Test (Steps 1.0-1.2)
G99E04972Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
