Fuel Injection System Test (Steps 1.0-1.2)
Fuel Injection System Test (Steps 1.0-1.2)

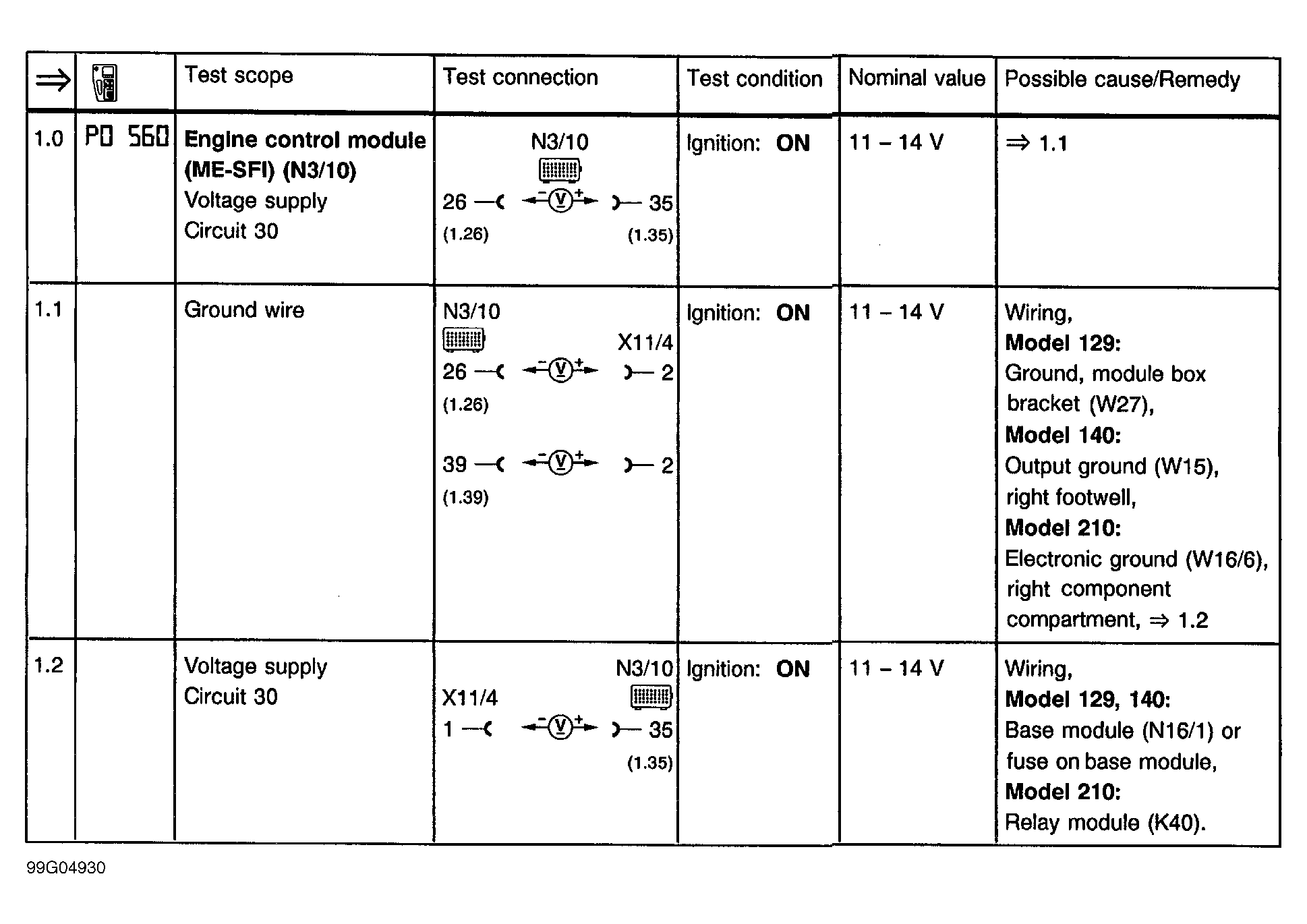

Fig 1: Fuel Injection System Test (Steps 1.0-1.2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
