Fuel Pump Tests
NOTE:
Far left column in following graphic are step numbers.

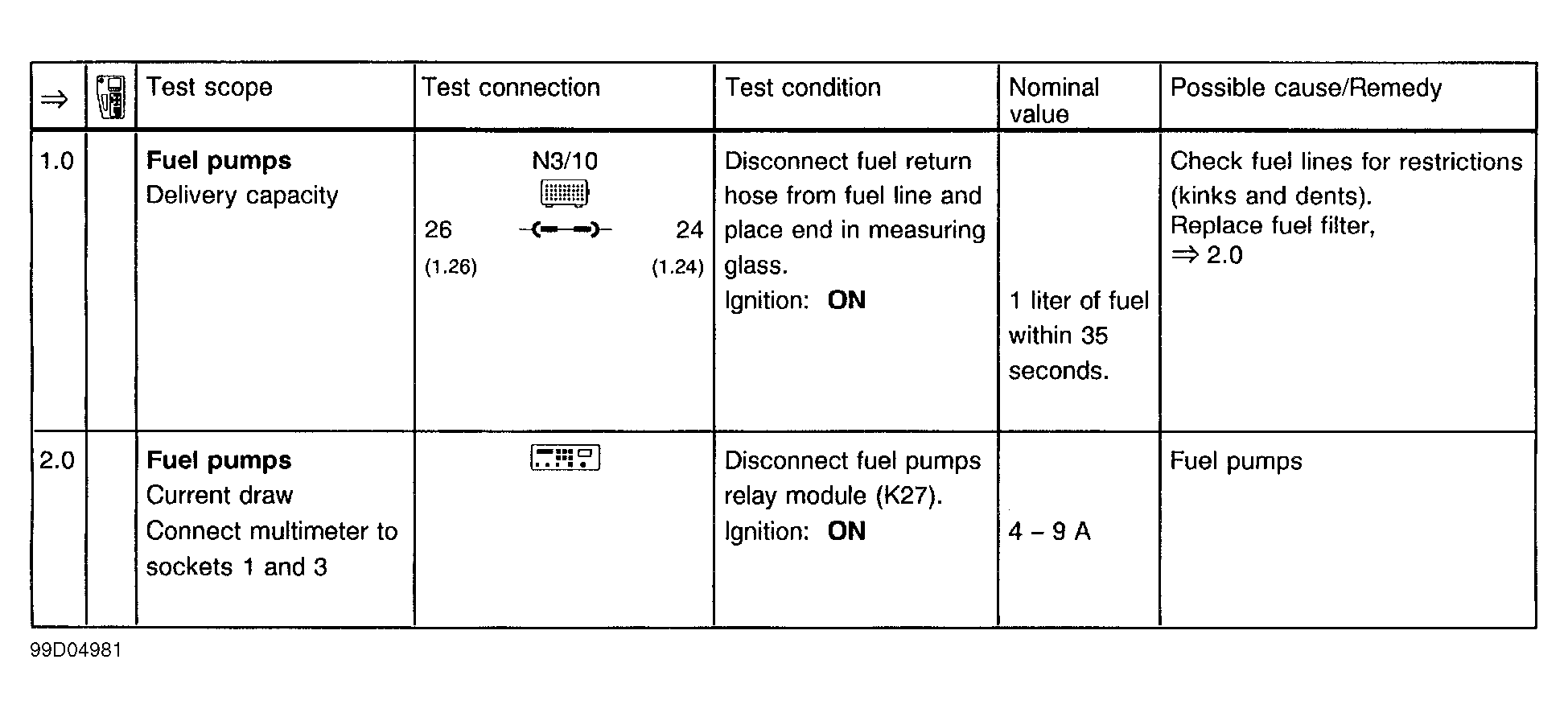

Fig 1: Fuel Pump Tests
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
