Ignition System Test (Steps 22.0-23.1)
Ignition System Test (Steps 22.0-23.1)

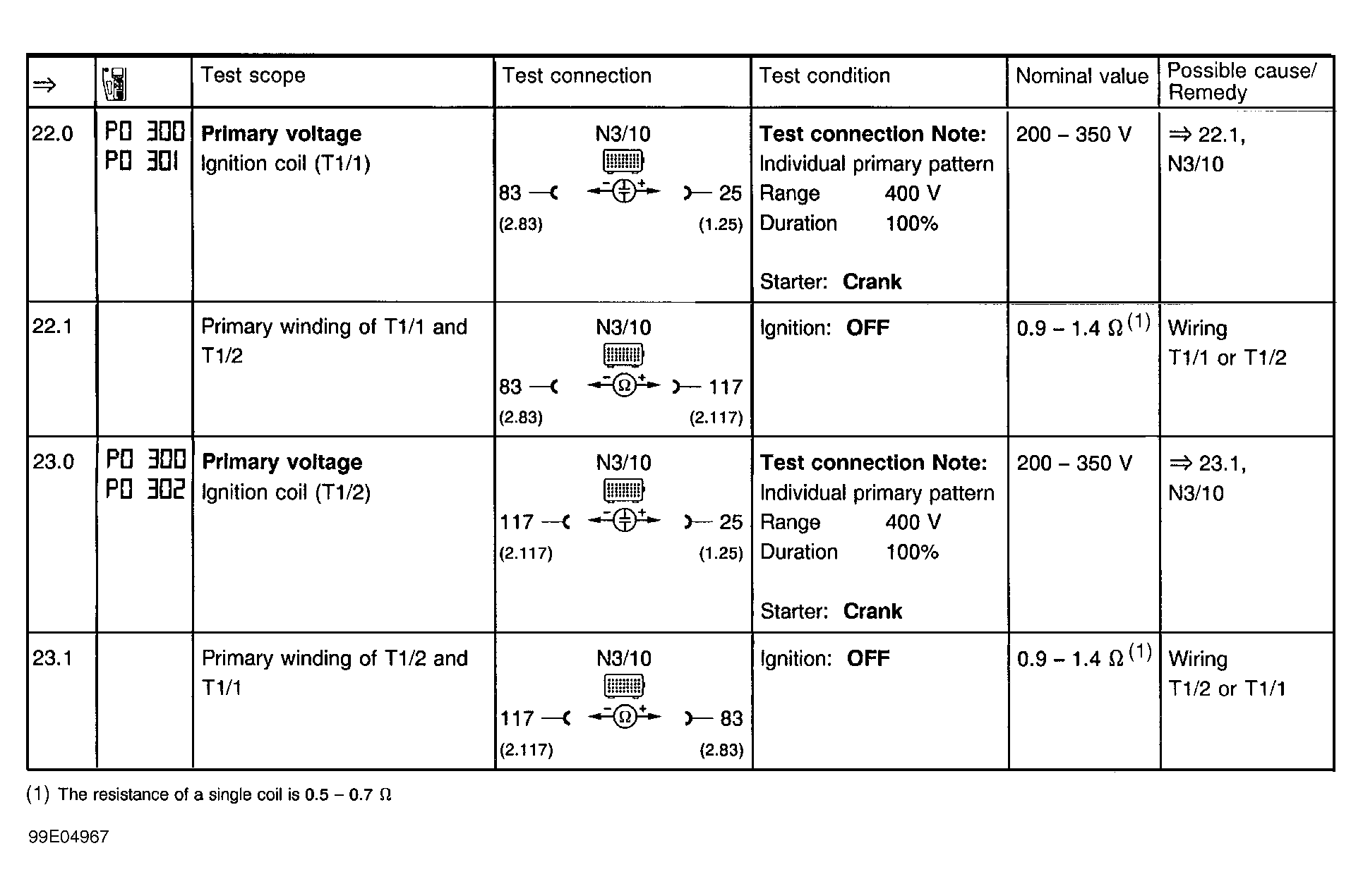

Fig 1: Ignition System Test (Steps 22.0-23.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
