Engine Controls - Self-Diagnostics With Codes
›
Diagnostic Trouble Code Identification
›
IFI System Tests
›
IFI System Test Step 13.0
IFI System Test Step 13.0

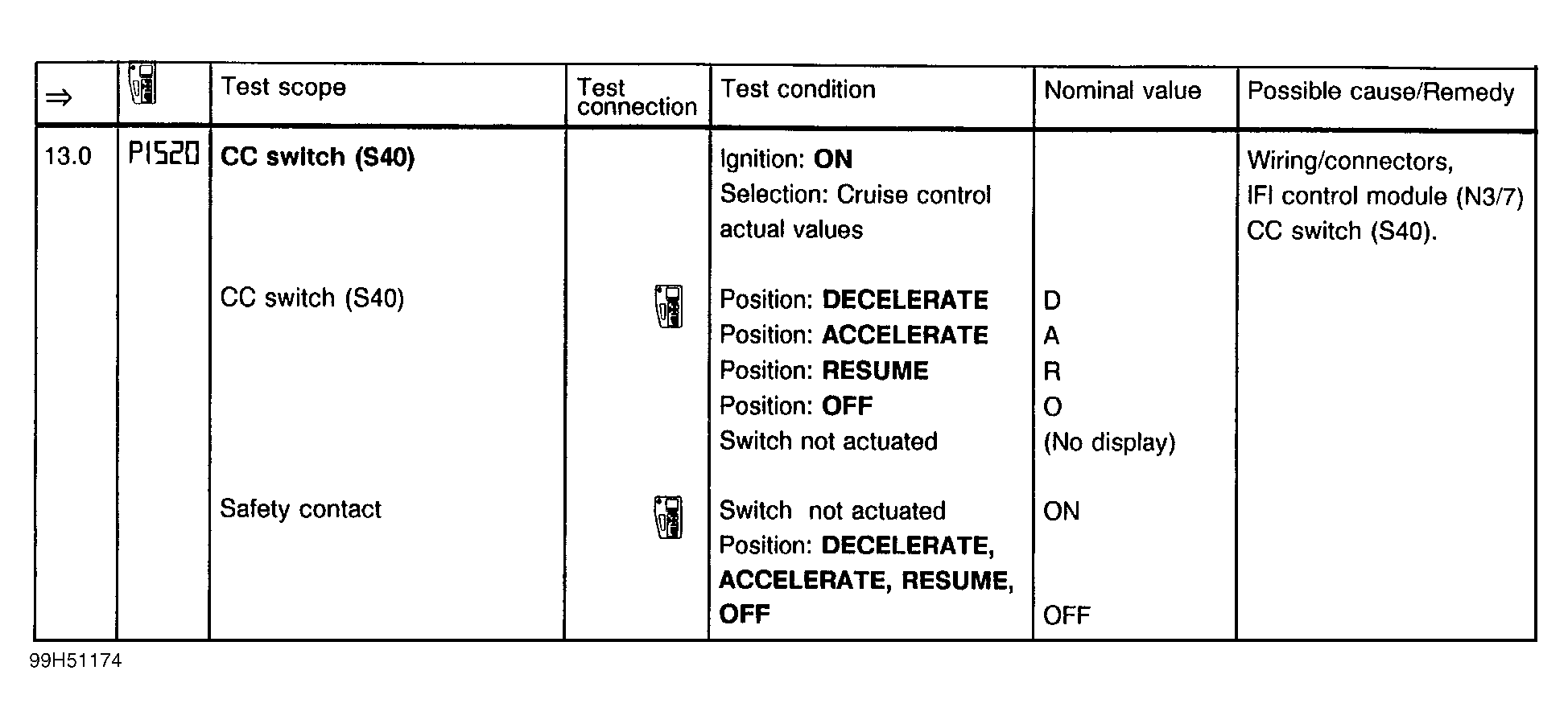

Fig 1: IFI System Test Step 13.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
