Engine Controls - Self-Diagnostics With Codes
›
Diagnostic Trouble Code Identification
›
IFI System Tests
›
IFI System Test Steps 16.0-16.2
IFI System Test Steps 16.0-16.2

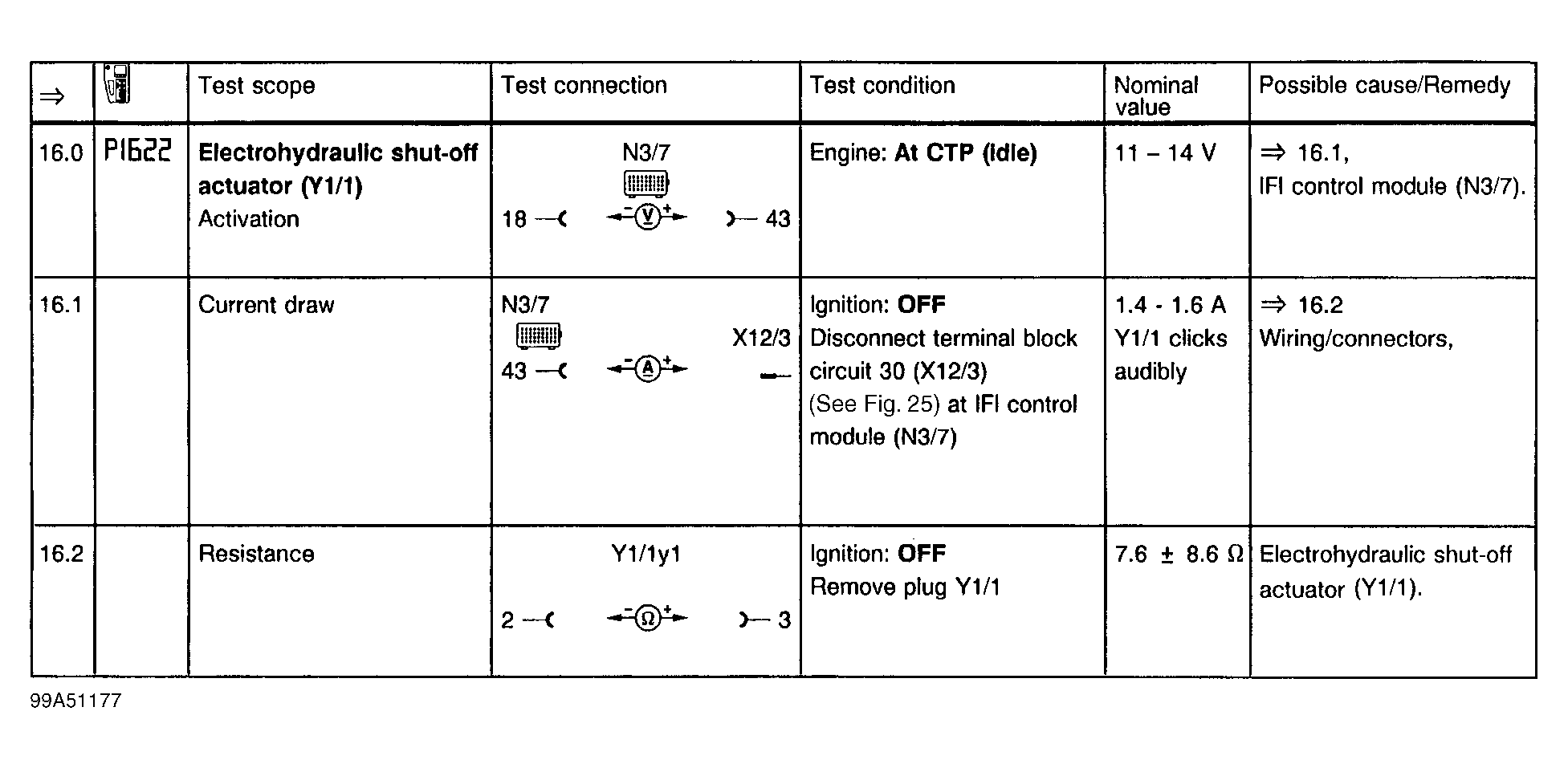

Fig 1: IFI System Test Steps 16.0-16.2
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
