Engine Controls - Self-Diagnostics With Codes
›
Diagnostic Trouble Code Identification
›
IFI System Tests
›
IFI System Test Steps 21.0-22.1
IFI System Test Steps 21.0-22.1

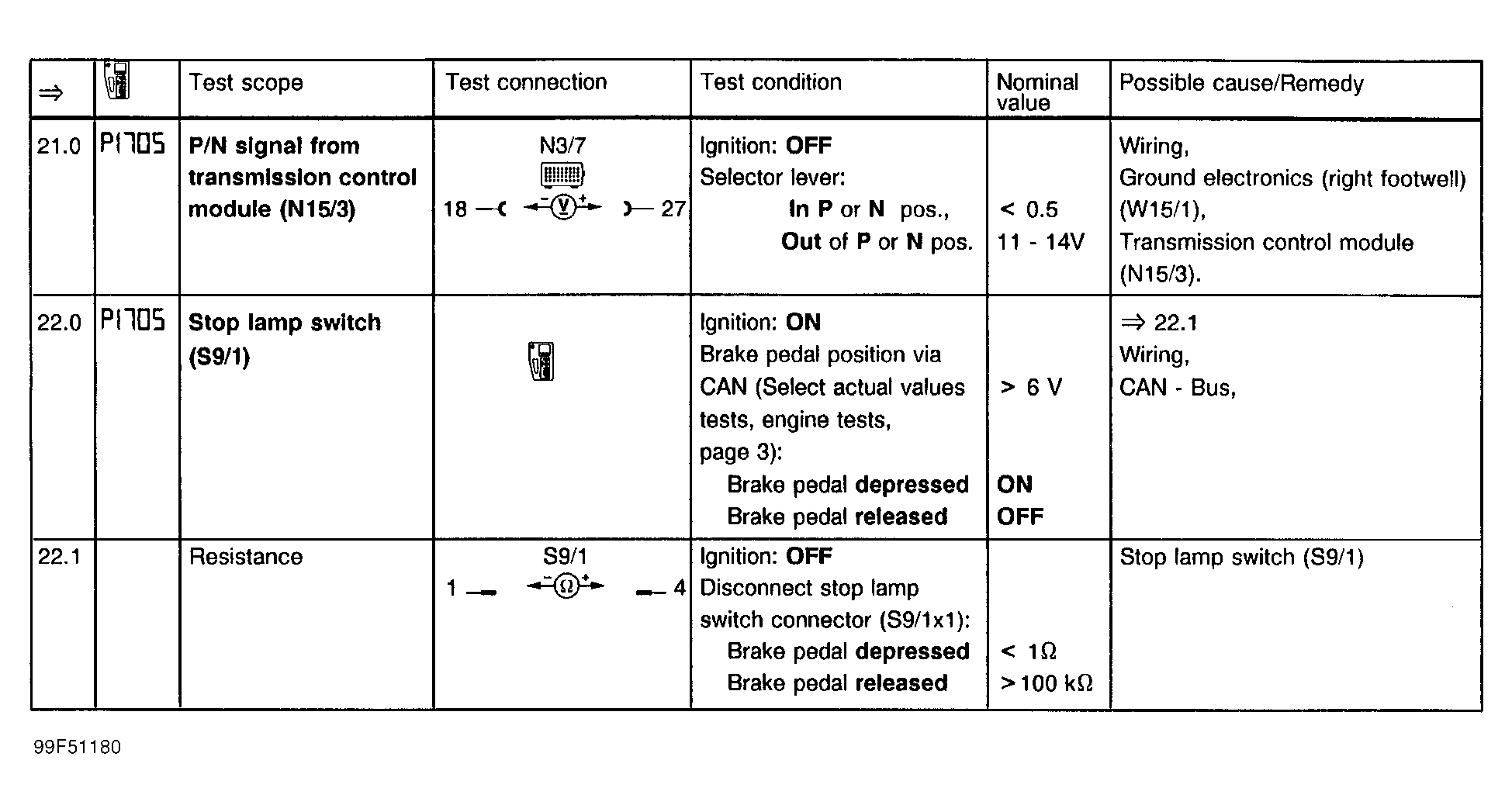

Fig 1: IFI System Test Steps 21.0-22.1
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
